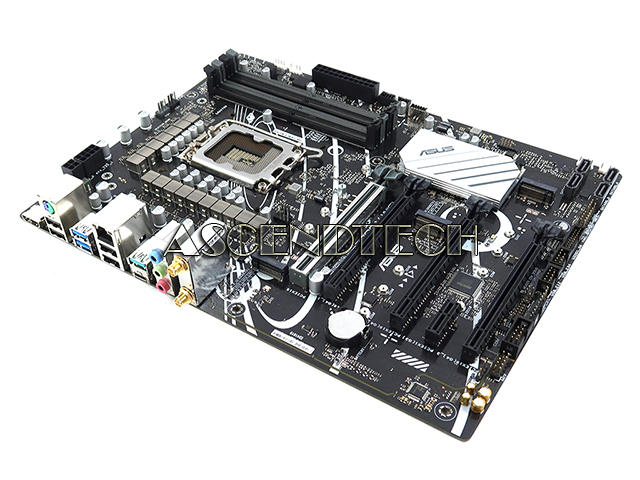

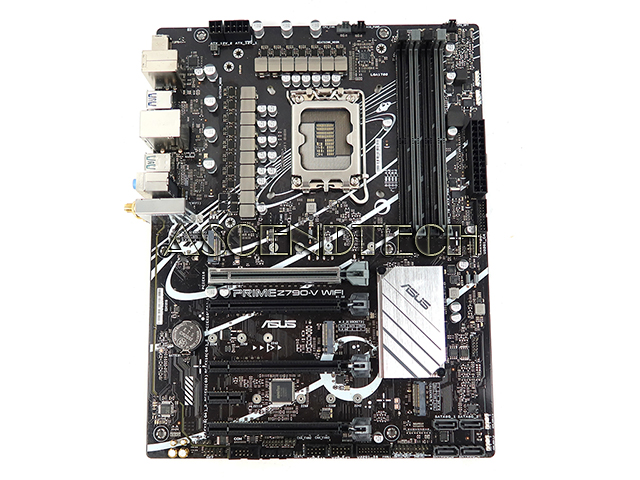

Asus PRIME Z790-V WIFI Mboard No I/O
Qty:
Item Code MBDSKPRIMEZ79A2
Brand Asus / Asustek Computer
Model PRIME Z790-V WIFI
Part Number 60MB1G40-B03
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, fan’s bracket, fan’s mounting backplate, VRM Heatsinks, Thermal Pads, cables, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
Asus PRIME Z790-V WIFI Intel Chipset Z790 Socket LGA1700 DDR5 USB SATA 6.0Gb/s HDMI ATX Desktop Motherboard 60MB1G40-B03.
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.0
Wireless Lan Support: Wi-Fi 5 (802.11 a/b/g/n/ac), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 1Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector, 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 1x USB 3.2 Gen 1 connector (supports USB Type-C), 2x USB 3.2 Gen 1 headers support4 additional USB 3.2 Gen 1 ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports, 3x Addressable Gen 2 headers, 1x Aura RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x 20-5pin System Panel header, 1x Thunderbolt (USB4) Header
Input/Output Ports: 1x USB 3.2 Gen 2x2 port (1x USB Type-C), 1x USB 3.2 Gen 2 port (1x Type-A), 2x USB 3.2 Gen 1 ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x HDMI port 1x Wi-Fi Module, 1x Realtek 1Gb Ethernet port, 3x Audio jacks, 1x PS/2 Keyboard/Mouse combo port
Expansion Slots: 1x PCIe 5.0 x16 slot, 3x PCIe 4.0 x16 slots (support x4 mode), 1x PCIe 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit
Additional Specifications:
Onboard Graphics
1x HDMI port
Graphics specifications may vary between CPU types.
Supports 4K@60Hz as specified in HDMI 2.1.
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
-Two-Way AI Noise Cancelation
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
CPU Support:
| Socket LGA1700 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | Frequency | Wattage | L3 Cache | Stepping | ||
| Intel | I9-14900T | 1.1 GHz | 35W | 33MB | B-0 | ||
| Intel | I9-14900KS | 3.2 GHz | 150W | 36MB | B-0 | ||
| Intel | I9-14900KF | 3.2 GHz | 125W | 36MB | B-0 | ||
| Intel | I9-14900K | 3.2 GHz | 125W | 36MB | B-0 | ||
| Intel | I9-14900F | 2.0 GHz | 65W | 36MB | B-0 | ||
| Intel | I9-14900 | 2.0 GHz | 65W | 36MB | B-0 | ||
| Intel | I7-14790F | 2.1 GHz | 65W | 36MB | B-0 | ||
| Intel | I7-14700T | 1.3 GHz | 35W | 33MB | B-0 | ||
| Intel | I7-14700KF | 3.4 GHz | 125W | 33MB | B-0 | ||
| Intel | I7-14700K | 3.4 GHz | 125W | 33MB | B-0 | ||
| Intel | I7-14700F | 2.1 GHz | 65W | 33MB | B-0 | ||
| Intel | I7-14700 | 2.1 GHz | 65W | 33MB | B-0 | ||
| Intel | I5-14600T | 1.8 GHz | 35W | 24MB | B-0 | ||
| Intel | I5-14600KF | 3.5 GHz | 125W | 24MB | B-0 | ||
| Intel | I5-14600K | 3.5 GHz | 125W | 24MB | B-0 | ||
| Intel | I5-14600 | 2.7 GHz | 65W | 24MB | B-0 | ||
| Intel | I5-14500T | 1.7 GHz | 35W | 24MB | C-0 | ||
| Intel | I5-14500 | 2.6 GHz | 65W | 24MB | C-0 | ||
| Intel | I5-14490F | 2.8 GHz | 65W | 24MB | C-0 | ||
| Intel | I5-14400T | 1.5 GHz | 35W | 20MB | C-0 | ||
| Intel | I5-14400F | 2.5 GHz | 65W | 20MB | B-0 | ||
| Intel | I5-14400F | 2.5 GHz | 65W | 20MB | C-0 | ||
| Intel | I5-14400 | 2.5 GHz | 65W | 20MB | B-0 | ||
| Intel | I5-14400 | 2.5 GHz | 65W | 20MB | C-0 | ||
| Intel | I3-14100T | 2.7 GHz | 35W | 12MB | H-0 | ||
| Intel | I3-14100F | 3.5 GHz | 58W | 12MB | H-0 | ||
| Intel | I3-14100 | 3.5 GHz | 60W | 12MB | H-0 | ||
| Intel | 300T | 3.4 GHz | 46W | 6MB | H-0 | ||
| Intel | 300 | 3.9 GHz | 35W | 6MB | H-0 | ||
| Intel | i9-13900KS | 3.2GHz | 150W | 36MB | B-0 | ||
| Intel | i9-13900T | 1.1GHz | 35W | 36MB | B-0 | ||
| Intel | i9-13900KF | 3.0GHz | 125W | 36MB | B-0 | ||
| Intel | i9-13900K | 3.0GHz | 125W | 36MB | B-0 | ||
| Intel | i9-13900F | 2.0GHz | 65W | 36MB | B-0 | ||
| Intel | i9-13900 | 2.0GHz | 65W | 36MB | B-0 | ||
| Intel | i7-13700T | 1.4GHz | 35W | 30MB | B-0 | ||
| Intel | i7-13700KF | 3.4GHz | 125W | 30MB | B-0 | ||
| Intel | i7-13700K | 3.4GHz | 125W | 30MB | B-0 | ||
| Intel | I7-13790F | 2.1GHz | 65W | 33MB | B-0 | ||
| Intel | i7-13700F | 2.1GHz | 65W | 30MB | B-0 | ||
| Intel | i7-13700 | 2.1GHz | 65W | 30MB | B-0 | ||
| Intel | I5-13600T | 1.8 GHz | 35W | 24MB | C-0 | ||
| Intel | i5-13600KF | 3.5GHz | 125W | 24MB | B-0 | ||
| Intel | i5-13600K | 3.5GHz | 125W | 24MB | B-0 | ||
| Intel | i5-13600 | 2.7 GHz | 65W | 24MB | C-0 | ||
| Intel | i5-13500T | 1.6 GHz | 35W | 24MB | C-0 | ||
| Intel | i5-13500 | 2.5 GHz | 65W | 24MB | C-0 | ||
| Intel | i5-13400T | 1.3 GHz | 35W | 20MB | C-0 | ||
| Intel | I5-13490F | 2.5 GHz | 65W | 24MB | C-0 | ||
| Intel | I5-13400F | 2.5 GHz | 65W | 20MB | C-0 | ||
| Intel | I5-13400 | 2.5 GHz | 65W | 20MB | C-0 | ||
| Intel | I3-13100F | 3.4 GHz | 58W | 12MB | H-0 | ||
| Intel | I3-13100 | 3.4 GHz | 60W | 12MB | H-0 | ||
| Intel | I3-13100T | 2.5 GHz | 35W | 12MB | H-0 | ||
| Intel | 120F | 2.5 GHz | 65W | 18MB | H-0 | ||
| Intel | 120 | 2.5 GHz | 65W | 18MB | H-0 | ||
| Intel | I9-12900KS | 3.4GHz | 150W | 30MB | C-0 | ||
| Intel | i5-12600T | 2.1GHz | 35W | 18MB | H-0 | ||
| Intel | i5-12600 | 3.3GHz | 65W | 18MB | H-0 | ||
| Intel | i5-12500T | 2.0GHz | 35W | 18MB | H-0 | ||
| Intel | i5-12500 | 3.0GHz | 65W | 18MB | H-0 | ||
| Intel | i5-12400T | 1.8GHz | 35W | 18MB | H-0 | ||
| Intel | i5-12400F | 2.5GHz | 65W | 18MB | H-0 | ||
| Intel | I5-12490F | 3.0GHz | 65W | 20MB | C-0 | ||
| Intel | i5-12400 | 2.5GHz | 65W | 18MB | H-0 | ||
| Intel | i3-12100T | 2.2GHz | 35W | 12MB | H-0 | ||
| Intel | i3-12100F | 3.3GHz | 58W | 12MB | H-0 | ||
| Intel | i3-12100 | 3.3GHz | 60W | 12MB | H-0 | ||
| Intel | i3-12300T | 2.3GHz | 35W | 12MB | H-0 | ||
| Intel | i3-12300 | 3.5GHz | 60W | 12MB | H-0 | ||
| Intel | G7400T | 3.1GHz | 35W | 6MB | H-0 | ||
| Intel | G7400 | 3.7GHz | 46W | 6MB | H-0 | ||
| Intel | G6900T | 2.8GHz | 35W | 4MB | H-0 | ||
| Intel | G6900 | 3.4GHz | 46W | 4MB | H-0 | ||
| Intel | i9-12900T | 1.4GHz | 35W | 30MB | C-0 | ||
| Intel | i9-12900KF | 3.2GHz | 125W | 30MB | C-0 | ||
| Intel | i9-12900K | 3.2GHz | 125W | 30MB | C-0 | ||
| Intel | i9-12900F | 2.4GHz | 65W | 30MB | C-0 | ||
| Intel | i9-12900 | 2.4GHz | 65W | 30MB | C-0 | ||
| Intel | i7-12700T | 1.4GHz | 35W | 25MB | C-0 | ||
| Intel | i7-12700KF | 3.6GHz | 125W | 25MB | C-0 | ||
| Intel | i7-12700K | 3.6GHz | 125W | 25MB | C-0 | ||
| Intel | i7-12700F | 2.1GHz | 65W | 25MB | C-0 | ||
| Intel | i7-12700 | 2.1GHz | 65W | 25MB | C-0 | ||
| Intel | i5-12600KF | 3.7GHz | 125W | 20MB | C-0 | ||
| Intel | i5-12600K | 3.7GHz | 125W | 20MB | C-0 | ||
