STRIX B560-G GAMING WIFI MB1750-A13 | Asus Rog Strix B560-G Mboard Mb1750-A13

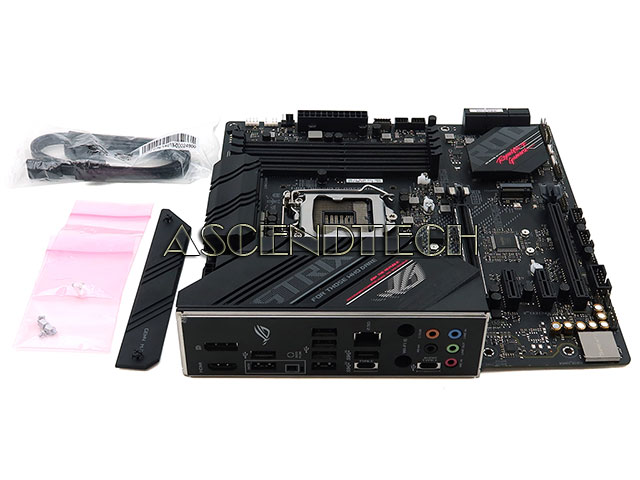

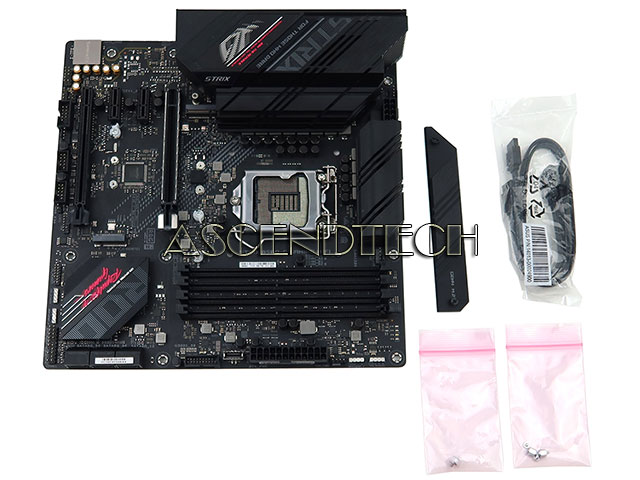

Asus ROG STRIX B560-G Mboard MB1750-A13

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBDSKMB1750A13W

BrandAsus / Asustek Computer

ModelSTRIX B560-G GAMING WIFI

Part NumberMB1750-A13

Compatible Part Numbers90PF0000-P01280 14013-00024900 ROG STRIX B560-G GAMING WIFI

CategoryIntel Lga1200 Motherboard

ConditionLike New Grade A

Condition DescriptionPlease note, this motherboard comes with I/O Shield, M.2 Heatsink, two SATA cables, and screws! No any other accessories!

Description

Asus ROG STRIX B560-G GAMING WIFI Intel Chipset B560 Socket LGA1200 DDR4 SATA3 6.0Gb/s HDMI DisplayPort USB-C Micro ATX Desktop Motherboard MB1750-A13.

Chipset: Intel B560

Socket: Intel LGA1200

Compatible/Supported CPU: 10th 11th Gen Intel Core i3/i5/i7/i9, Pentium Gold, Celeron Desktop Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 5000MHz(O.C.)/4800MHz(O.C.)/4600MHz(O.C.)/4400MHz(O.C.)/4266MHz(O.C.)/4000MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3333MHz(O.C.)/3200MHz/2933MHz/2800MHz/2666MHz/2400MHz/2133MHz

Storage Interface: SATA 3 6.0Gb/s

Wireless Lan Support: Intel WiFi 6 802.11ax

Network/Communications: Intel 2.5Gb Ethernet

Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Connectors: 1x 4-pin CPU Fan header(s), 1x 4-pin AIO Pump header(s), 2x 4-pin Chassis Fan header(s), 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 1x USB 3.2 Gen 2 connector (support(s) USB Type-C), 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, 2x AURA Addressable Gen 2 header(s), 2x AURA RGB header(s), 1x Clear CMOS header, 1x COM port, 1x Front Panel Audio header (AAFP), 1x SPI TPM header (14-1pin), 1x 20-3 pin System Panel header with Chassis intrude function, 1x Thunderbolt header, 1x S/PDIF Out header

Input/Output Ports: 1x RJ-45 Ethernet port, 1x USB 3.2 Gen 2x2 port(s) Type-C, 1x USB 3.2 Gen 2 port(s) Type-A, 7x USB 2.0 port(s), 1x HDMI, 1x DisplayPort, 5x Audio jacks, 1x ASUS Wi-Fi Module

Expansion Slots: 1x PCIe 4.0/3.0 x16 slot(s), 1x PCIe 3.0 x16 slot (supports x4 mode), 2x PCIe 3.0 x1 slots, 2x M.2 slots, 6x SATA 3 6Gb/s ports

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

Graphics
Graphics specifications may vary between CPU types.
Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Special Features
Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
ASUS EZ DIY
BIOS FlashBack button
BIOS FlashBack LED
ProCool
Pre-mounted I/O shield
SafeSlot
AURA Sync
AURA RGB header(s)
Addressable Gen 2 RGB header(s)

Software Features
ROG Exclusive Software
RAMCache III
ROG CPU-Z
GameFirst VI
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar III
DTS Sound Unbound
Overwolf
Anti-virus software
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
AURA Creator
AURA Sync
Two-Way AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
EZ update
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
