Model

Brand

ASUS

Series

ROG

Model

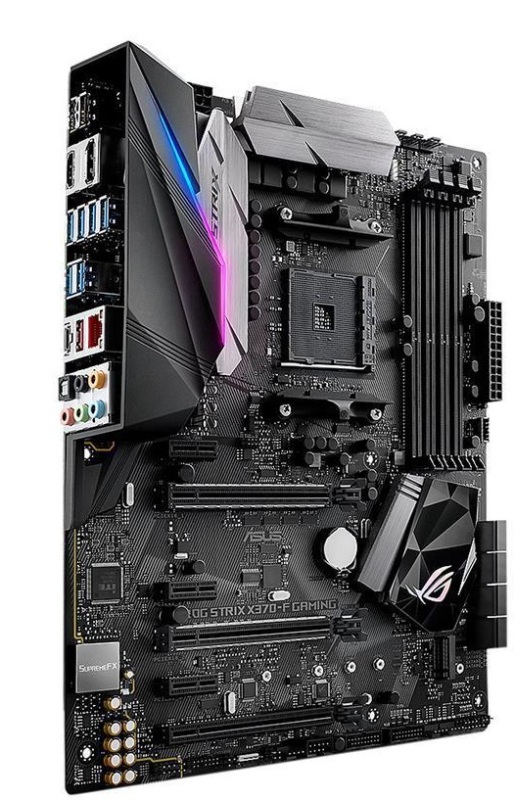

STRIX X370-F GAMING

Supported CPU

CPU Socket Type

AM4

CPU Type

AMD AM4 Socket for AMD Ryzen / 7th Generation A-series/Athlon Processors

Chipsets

Chipset

AMD X370

Memory

Number of Memory Slots

4×288pin

Memory Standard

Ryzen Processors: DDR4 3200(O.C.)/ 2666/ 2400/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

Ryzen Processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

PCI Express 2.0 x16

1 x PCIe 2.0 x16 (max at x4 mode)

PCI Express x1

3 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

M.2

Ryzen Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset

ROG SupremeFX High Definition Audio CODEC S1220A

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel i211AT

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

2 x USB 3.1 Gen 2 Type-A + Type-C
6 x USB 3.1 Gen 1

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Model

Brand

AMD

Processors Type

Desktop

Series

Ryzen 5

Name

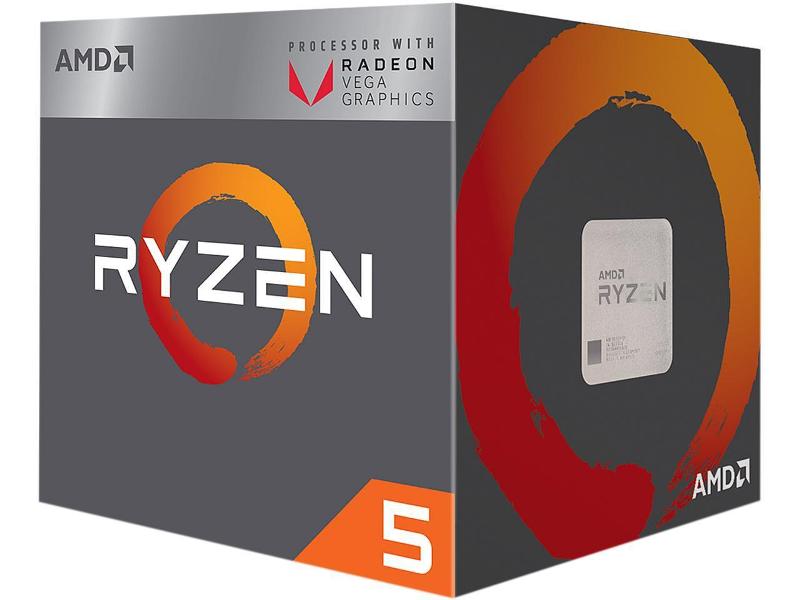

AMD Ryzen 5 2400G

Details

CPU Socket Type

Socket AM4

Core Name

Raven Ridge

# of Cores

Quad-Core

# of Threads

8

Operating Frequency

3.6 GHz

Max Turbo Frequency

3.9 GHz

L2 Cache

2MB

L3 Cache

4MB

Manufacturing Tech

14nm

64-Bit Support

Yes

Integrated Graphics

Radeon RX Vega 11 Graphics

Graphics Base Frequency

1250 MHz

PCI Express Revision

3.0

Thermal Design Power

65W
