ASUS SABERTOOTH X79 MB - NOT WORKING!

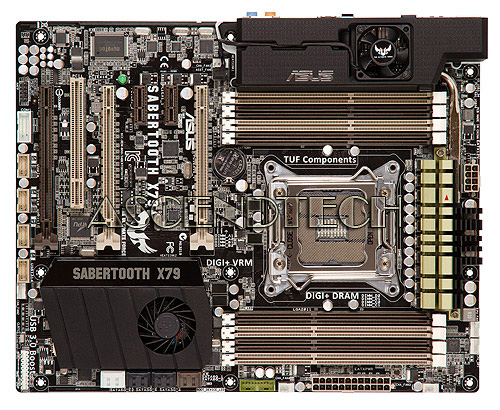

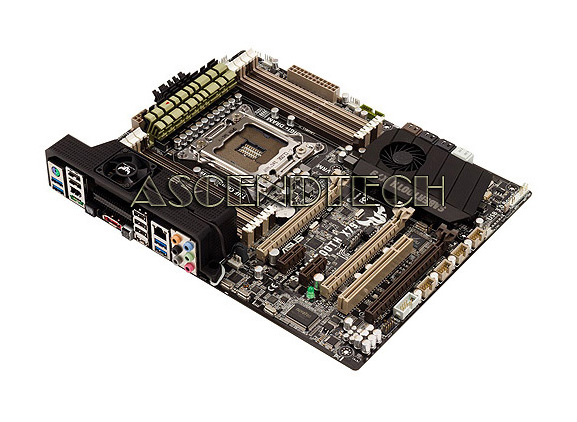

ASUS SABERTOOTH X79 REV. 1.02 Intel X79 Socket LGA2011 SATA 6Gb/s USB 3.0 ATX Motherboard 80-MIBGW0-G0A01.

Asus Model Number: SABERTOOTH X79
Asus Part Number: 80-MIBGW0-G0A01

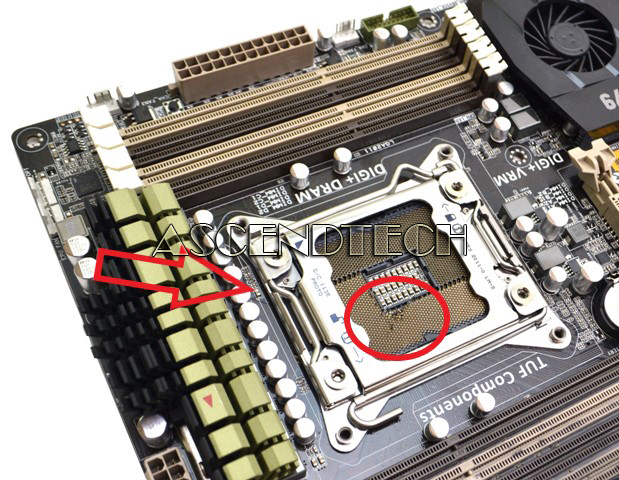

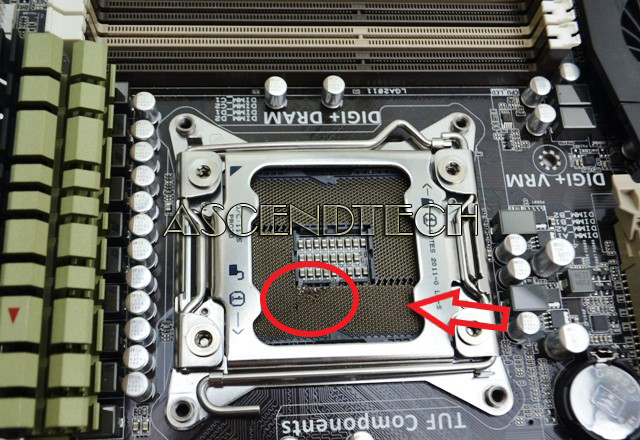

Please Note, Defective Motherboard For Parts Or Repair Only! Socket Pins Are Smashed. No Cables Or Any Other Accessories. Please Check Images At The Bottom Of This Page.
















Specifications:

CPU:
Intel Socket 2011 for 2nd Generation Core i7 Processors
Supports Intel Turbo Boost Technology 2

Chipset:
Intel X79

Memory:
8 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots:
2 x PCIe 3.0/2.0 x16 (dual x16)
1 x PCIe 3.0/2.0 x16 (x8 mode)
2 x PCIe 2.0 x1
1 x PCI

Storage:
Intel X79 chipset :
2 x SATA 6Gb/s port(s), brown
4 x SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Marvell PCIe 9128 controller :
2 x SATA 6Gb/s port(s), gray
ASMedia ASM1061 controller :
1 x Power eSATA 6Gb/s port(s), green
1 x eSATA 6Gb/s port(s), red

LAN:
Intel 82579V, 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel

IEEE 1394:
VIA 6315N controller
1 x IEEE 1394a port(s)
(1 at back panel)

USB Ports:
ASMedia USB 3.0 controller :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel X79 chipset :
14 x USB 2.0 port(s) (6 at back panel, black, 8 at mid-board)

Special Features:
TUF ENGINE! Power Design :
- 8 +2 +2 +2 Digital Phase Power Design
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor
- TUF Thermal Radar
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS SSD Caching
- USB 3.0 Boost
ASUS EZ DIY :
- USB BIOS Flashback
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

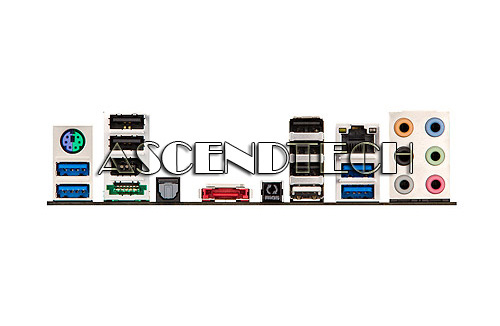

Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 6Gb/s
1 x Power eSATA 6Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
4 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Optional Fan connector(s) (4 -pin)
1 x Assistant Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)

BIOS:
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )











CPU Support List:
