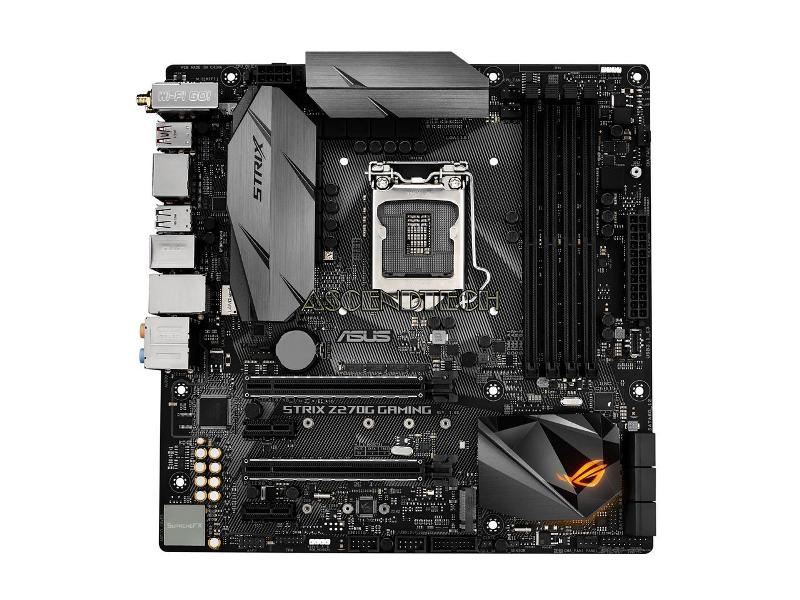

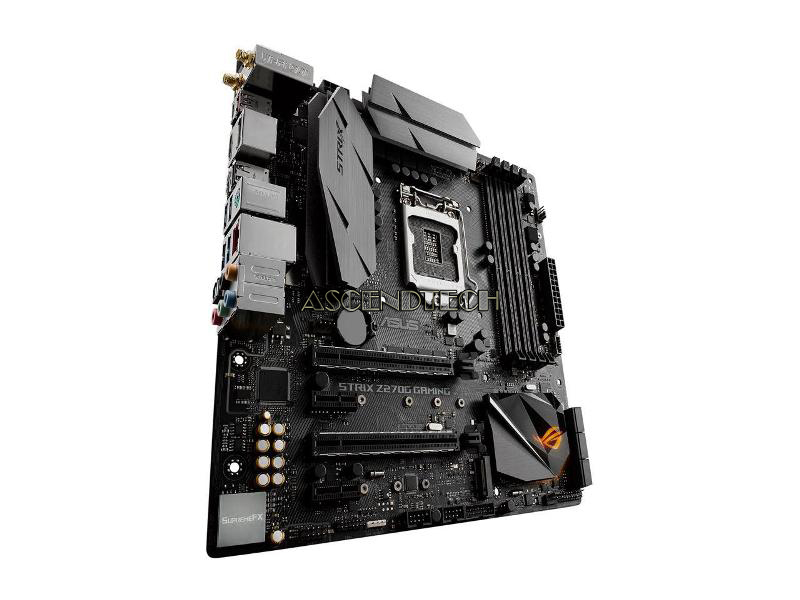

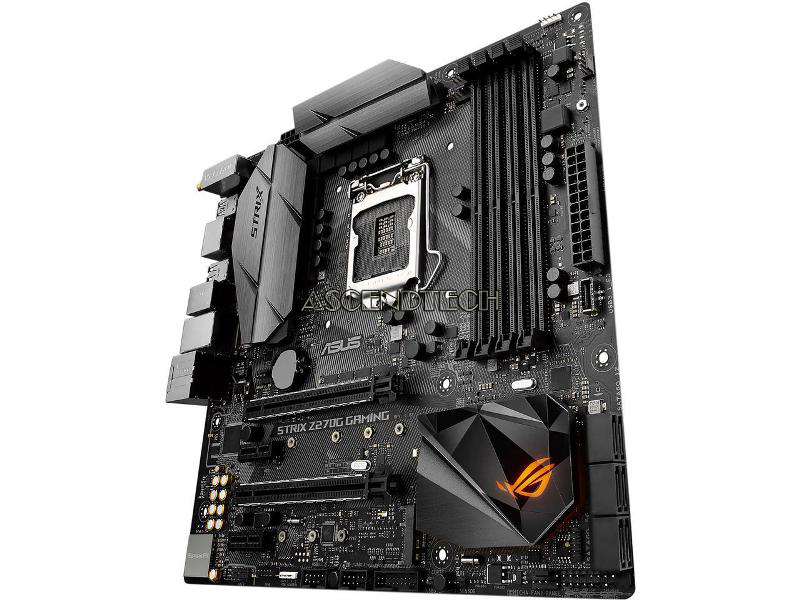

ASUS STRIX Z270G LGA1151 Intel Z270 DDR4

ASUS ROG STRIX Z270G GAMING LGA1151 DDR4 DP HDMI M.2 mATX Motherboard with onboard AC Wifi and USB 3.1. Asus ROG STRIX Z270G GAMING Motherboard supports the 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors.

Features:

- Intel Z270
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133

Specifications:

Brand: Asus
Model: ROG STRIX Z270G GAMING
CPU: LGA1151
-Supports Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
-Supports Intel Turbo Boost Technology 2.0
Chipset: Intel Z270
Number of Memory Slots: 4×288pin
Memory Standard: DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
Expansion Slots:
2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8)
2 x PCIe 3.0/2.0 x1 slot
Video:
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2304@24Hz
Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Storage Devices:
6 x SATA 6Gb/s
1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 Socket 3 with M key, type 2242/2260/2280/21100 storage devices support (PCIE 3.0 x 4 mode)
Audio Chipset: ROG SupremeFX S1220A
Audio Channels: 8 Channels
Onboard LAN: LAN Chipset: Intel I219-V
Max LAN Speed: 10/100/1000Mbps
Wireless LAN: Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO support
Bluetooth: Bluetooth v4.1, 4.0LE, 3.0+HS
Rear Panel Ports:
1 x PS/2 keyboard/mouse port
1 x HDMI
1 x Anti-surge LAN (RJ45) port
1 x DisplayPort
2 x USB 3.1 ports (1 x typeA [red] and 1 x TypeC [black])
4 x USB 3.0
2 x USB 2.0
1 x Optical
5 x Audio Ports
Antenna Connectors: 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
Internal I/O Connectors
Onboard USB
1 x USB 3.1 front panel connector
1 x USB 3.0 connector supports additional 2 x USB 3.0 ports
2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
Other Connectors:
1 x 4-Pin CPU_FAN connector
1 x 4-Pin CPU_OPT fan connector
1 x 4-Pin W_PUMP+ connector
2 x 4-Pin CHA_FAN connectors
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x Front panel audio connector (AAFP)
1 x TPM connector
2 x RGB Header
1 x Clear CMOS jumper
1 x Thermal sensor connector
1 x System panel connector
1 x CPU_OV jumper
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
