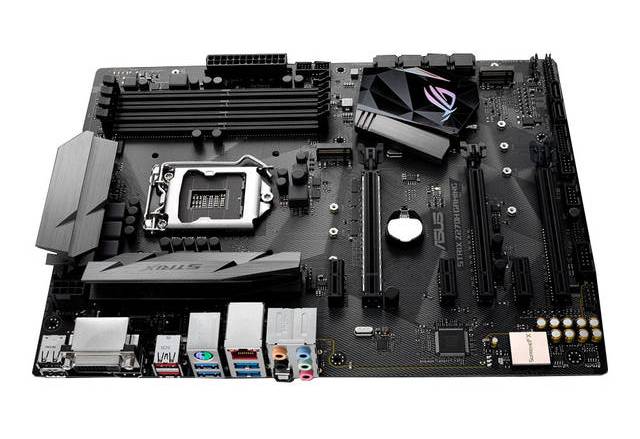

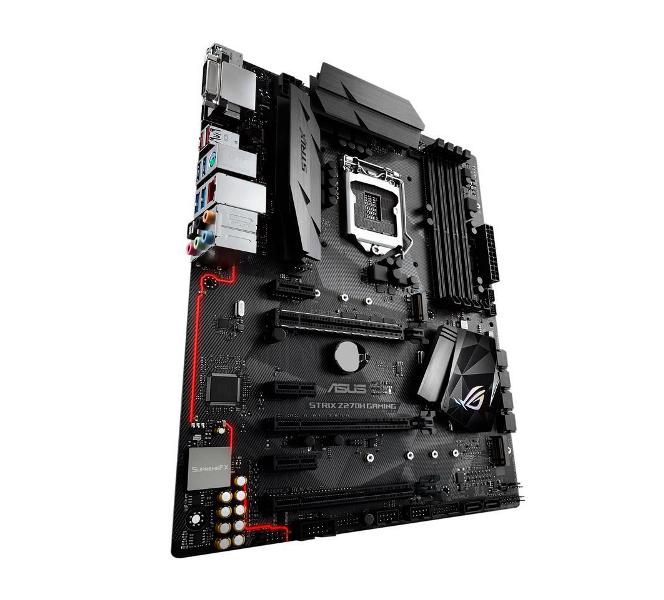

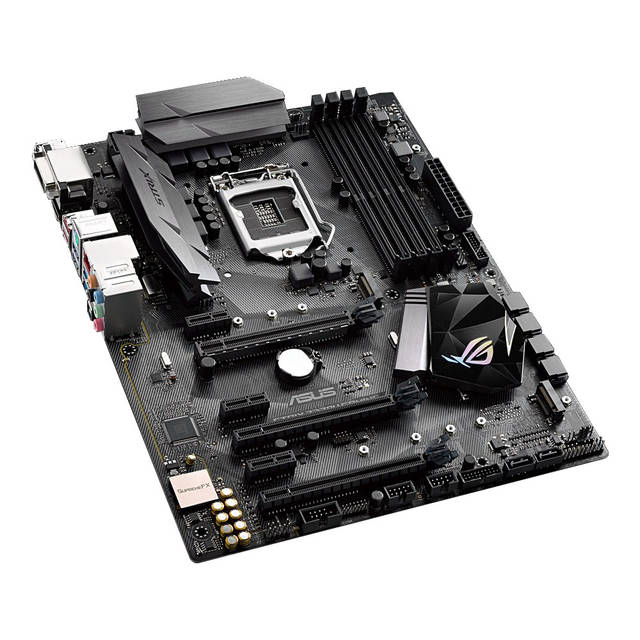

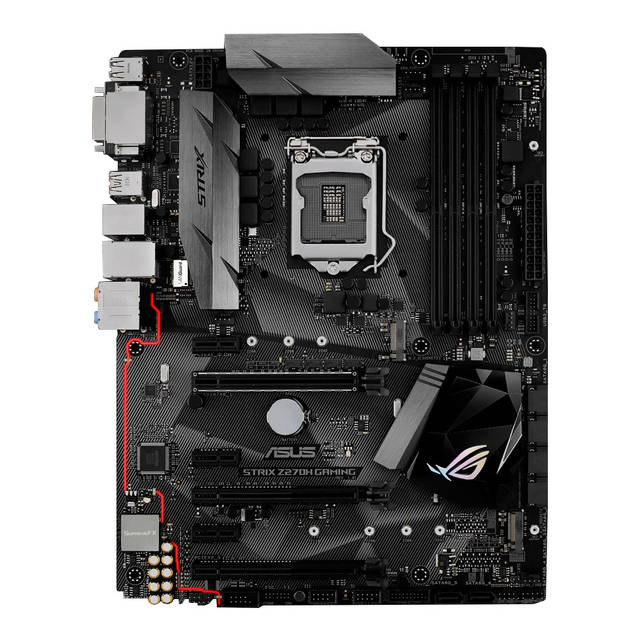

ASUS STRIX Z270H LGA1151 Intel Z270 DDR4

Asus ROG STRIX Z270H GAMING LGA1151 Intel Z270 DDR4 2-Way CrossFireX & 2-Way SLI SATA3 & USB3.1 A&GbE ATX Motherboard. Asus ROG STRIX Z270H GAMING Motherboard supports the 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors.

Specifications:

Brand: Asus
Model: ROG STRIX Z270H GAMING
CPU: LGA1151
-Supports the 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
-Supports 14nm CPU
-Supports Intel Turbo Boost Technology 2.0
Chipset: Intel Z270
Memory: 4x DDR4-3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots:
2x PCI-Express 3.0/2.0 x16 Slots (run at x16 or dual x8)
1x PCI-Express 3.0/2.0 x16 Slot (runs at x2)
3x PCI-Express 3.0/2.0 x1 Slots
Multi-Graphics: Supports AMD 2-Way CrossFireX and NVIDIA 2-Way SLI Technology
Storage:
SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
M.2: 2x M.2 Ports, one supports type 2242/ 2260/ 2280/22110 & SATA & PCI-Express 3.0 X4 Mode, one supports type 2242/ 2260/ 2280 & PCI-Express 3.0 X4 Mode
Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
LAN: Intel I219V Gigabit Ethernet Controller
Ports:
2x USB 3.1 Ports (Type A rear)
8x USB 3.0 Ports (4 rear, 4 at mid-board)
6x USB 2.0 Ports (2 rear, 4 at mid-board)
1x PS/2 Keyboard/Mouse Combo Port
1x DVI Port
1x HDMI Port
1x Optical S/PDIF Out
1x RJ45 LAN Port
Audio I/O Jacks
Power Connector:
1x 24pin EATX Power Connector
1x 8pin ATX 12V Power Connector
Form Factor: ATX 12.0 x 9.2 inch / 30.5 x 23.4 cm
