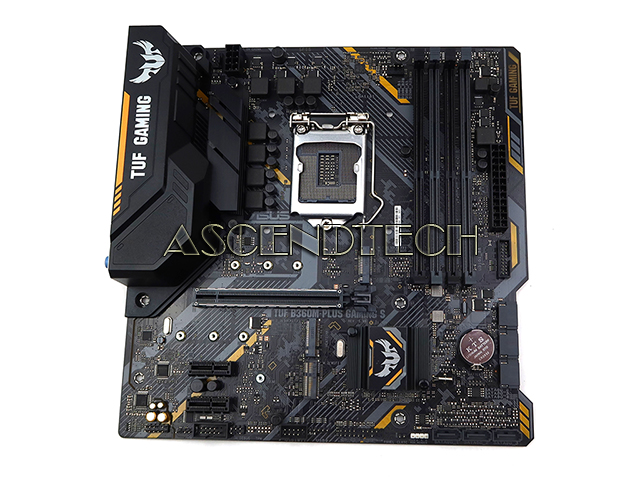

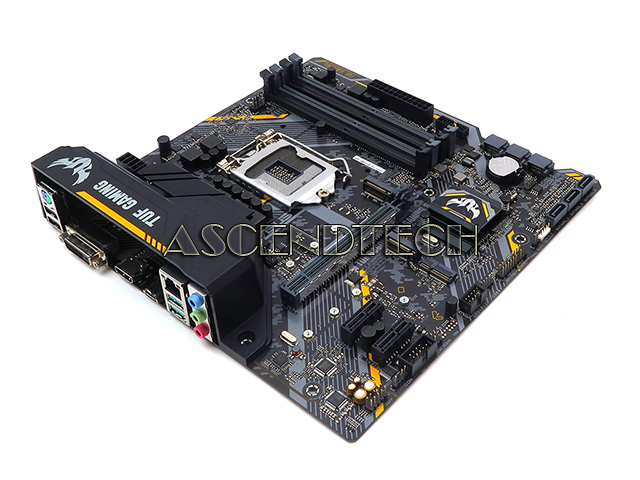

Asus TUF B360M-Plus G Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Asus Tuf B360m-Plus G Motherboard No I/O
Asus Tuf B360m-Plus G Motherboard No I/O
Asus Tuf B360m-Plus G Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDTUFB360MPLUS
BrandAsus / Asustek Computer
ModelTUF B360M-Plus Gaming
Part Number90MB0ZA0-M0AAY0
Compatible Part NumbersMB0ZA0
CategoryIntel Lga1151 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not come with an I/O Shield, cables, or any other accessories! Motherboard only!

Description

ASUS TUF B360M-Plus Gaming Intel Chipset B360 Socket LGA1151 HDMI DVI DDR4 SATA 6Gb/s mATX Desktop Motherboard 90MB0ZA0-M0AAY0.

Chipset: Intel B360
Socket: Socket LGA1151
Compatible/Supported CPU: Intel Socket LGA 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 2666/2400/2133 MHz
Error Correction (ECC): Non-ECC
Storage Interface: 6Gb/s
Connectors: 1x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green), 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2x M.2 Socket 3 for M Key, type 2242/2260/2280 devices, 1x COM port(s) connector(s), 6x SATA 6Gb/s connector(s)

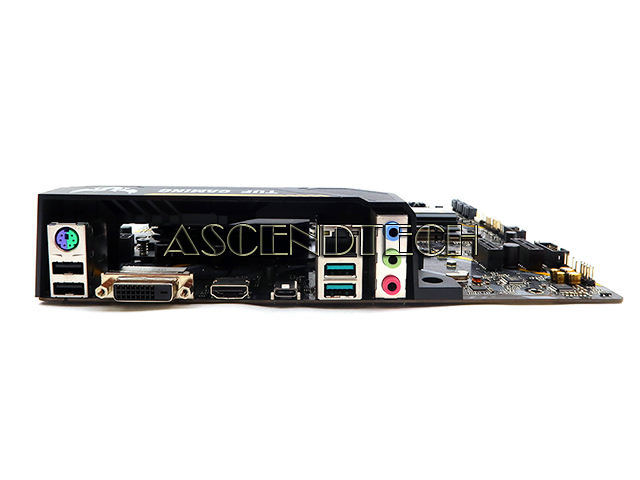

Input/Output Ports: 1x PS/2 keyboard (purple), 1x PS/2 mouse (green), 1x DVI-D, 1x HDMI, 1x LAN (RJ45) port(s), 2x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps, 1x USB 3.1 Gen 1 USB Type-CTM, up to 5Gbps, 2x USB 2.0, 1x 8-channel Audio I/O
Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 2x PCIe 3.0/2.0 x1
Form Factor: mini ATX (mATX)
Type: Desktop Motherboard
Supported Operating System: Windows 10-64bit

Additional Specifications:

Graphic

Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity


Special Features

ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem：
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
