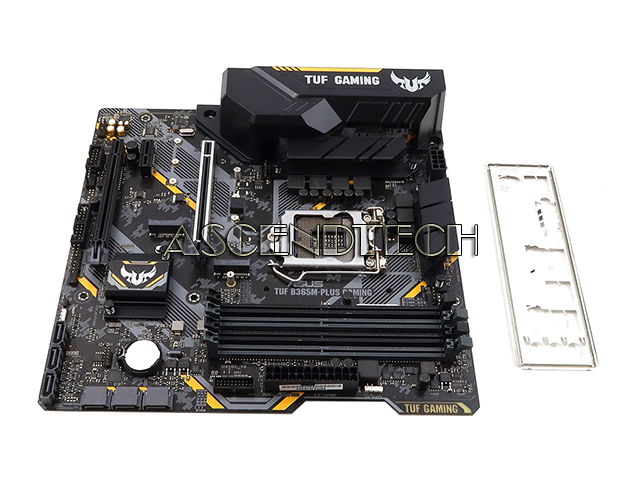

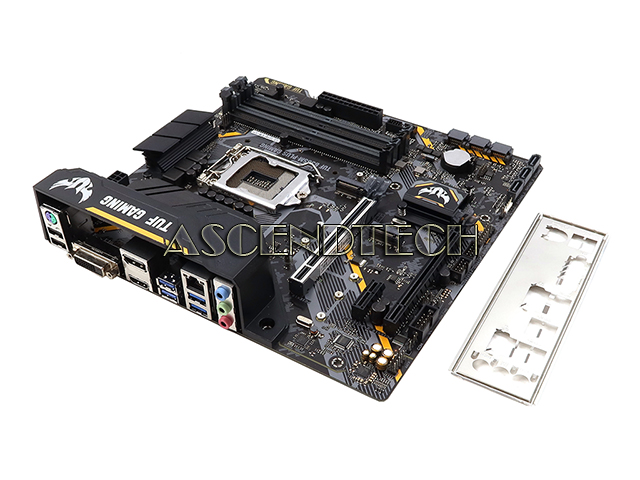

Asus TUF B365M-PLUS GAMING Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Asus Tuf B365m-Plus Gaming Motherboard
Asus Tuf B365m-Plus Gaming Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKMB11P0A04I
Brand Asus / Asustek Computer
Model TUF B365M-PLUS GAMING
Part Number MB11P0-A04
Compatible Part Numbers MB11P0
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield only! No cables, fan’s bracket, or any other accessories!

Description

Asus TUF B365M-PLUS GAMING Intel Chipset B365 Socket LGA1151 DDR4 SATA 3 6.0Gb/s DVI-D DisplayPort Micro ATX Desktop Motherboard MB11P0-A04.

Chipset: Intel B365
Socket: Intel LGA1151
Compatible/Supported CPU: 8th 9th Gen Intel Core i3/i5/i7/i9, Pentium Gold, Celeron Desktop Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6.0Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel I219V, 1x Gigabit LAN
Audio: Realtek ALC1200
Connectors: 1x Addressable RGB header, 1x Aura RGB Strip Header, 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin, moss green), 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2x M.2 Socket 3 for M Key, type 2242/2260/2280 devices, 1x COM port(s) connector(s), 6x SATA 6Gb/s connector(s), 1x CPU Fan connector(s), 2x Chassis Fan connector(s), 1x S/PDIF out header(s), 1x 24-pin EATX Power connector(s), 1x 8-pin EATX 12V Power connectors, 1x Front panel audio connector(s) (AAFP), 1x Clear CMOS jumper(s), 1x System panel connector
Input/Output Ports: 1x PS/2 keyboard/mouse combo port(s), 1x DVI-D, 1x DisplayPort, 1x HDMI, 1x LAN (RJ45) port(s), 4x USB 3.2 Gen 1 Type-A up to 5Gbps, 2x USB 2.0, 1x 8-channel Audio I/O
Expansion Slots: 1x PCIe 3.0 x16 (x16 mode), 1x PCIe 3.0 x16 (max at x4 mode), 1x PCIe 3.0/2.0 x1, 1x M.2 Socket 3, with M key, type 2242/2260/2280 (SATA & PCIE 3.0 x 4 mode), 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 6x SATA 6Gb/s port(s)
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Specifications:

Graphics
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously


Multi-GPU Support
Supports AMD CrossFireX Technology


BIOS
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information


Special Features
ASUS TUF PROTECTION
ASUS ESD Guard: Enhanced ESD protection
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS DIGI+ VRM: Precision control for stable power
ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace
ASUS OptiMem：Optimem (Improved DDR4 stability)
ASUS EPU: EPU
ASUS Exclusive Features: AI Suite 3
Ai Charger
PC Cleaner
ASUS Quiet Thermal Solution:
Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
ASUS Fan Xpert 2+
ASUS EZ DIY: ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS Q-Design: ASUS Q-Slot
ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
