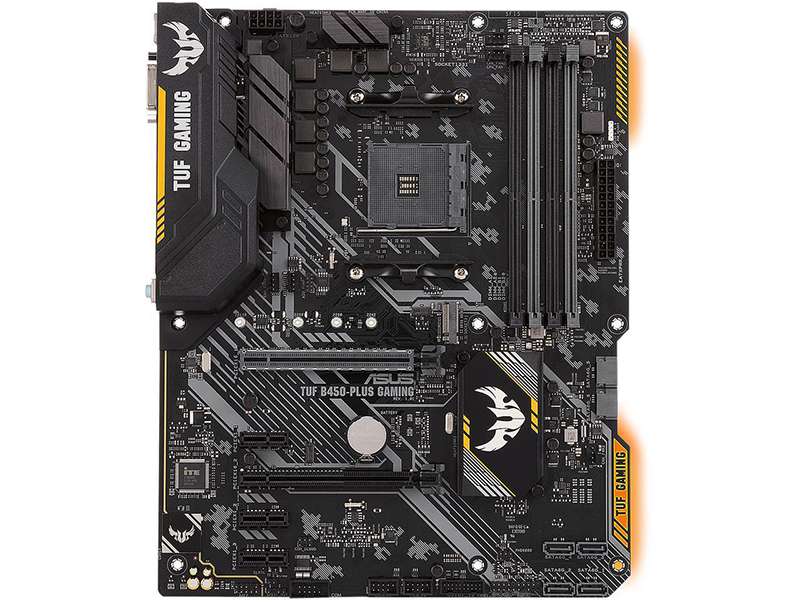

Asus Tuf B450-Plus Configurator

Model

Brand

ASUS

Series

TUF

Model

B450-PLUS GAMING

Supported CPU

CPU Socket Type

AM4

CPU Type

AM4 socket for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
Supports CPU up to 8 cores*
* Due to CPU limitation, CPU cores supported varies by processor.
** Refer to www.asus.com for the AMD CPU support list.

Chipsets

Chipset

AMD B450

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode)

AMD Ryzen with Radeon Vega Graphics Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)

PCI Express 2.0 x16

1 x PCI Express 2.0 x16 slots (max. at x4 mode)

PCI Express x1

3 x PCI Express 2.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support*
* The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Onboard Audio

Audio Chipset

Realtek ALC887-VD2

Audio Channels

8 Channels
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Onboard LAN

LAN Chipset

Realtek RTL8111H

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.1

2 x USB 3.1 Gen 2 (up to 10Gbps) ports (Type A, teal blue)
2 x USB 3.1 Gen 1 (up to 5Gbps) ports (Type A, blue)

USB 1.1/2.0

2 x USB 2.0

USB Type-C

1 x USB 3.1 Gen 1 (up to 5Gbps) port (Type C)

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

1 x Aura RGB Strip Header
1 x CPU Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s) (3 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

Features

Features

Multi-GPU Support:
Supports AMD CrossFireX Technology

Special Features:
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit
