Asus X99-PRO 2011-V3 Motherboard No I/O

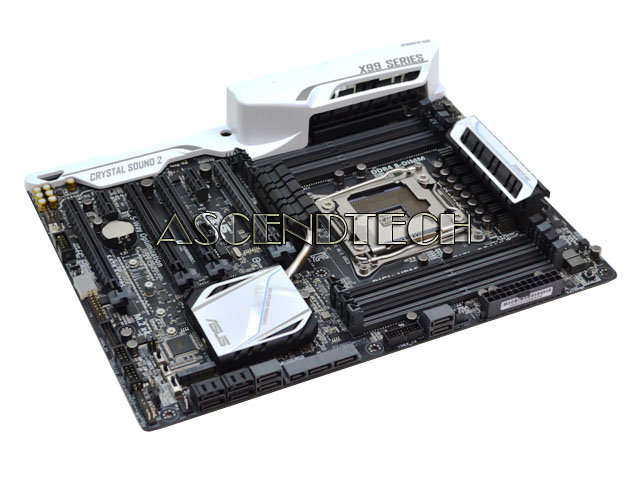

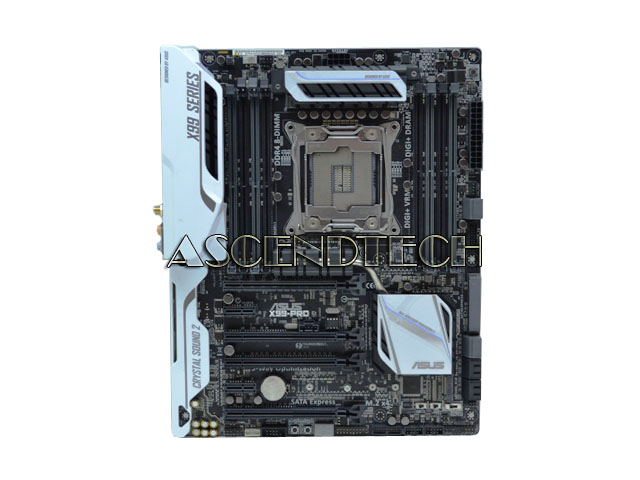

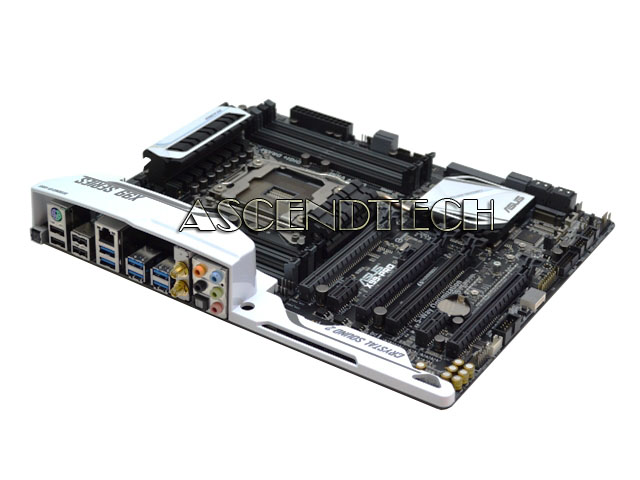

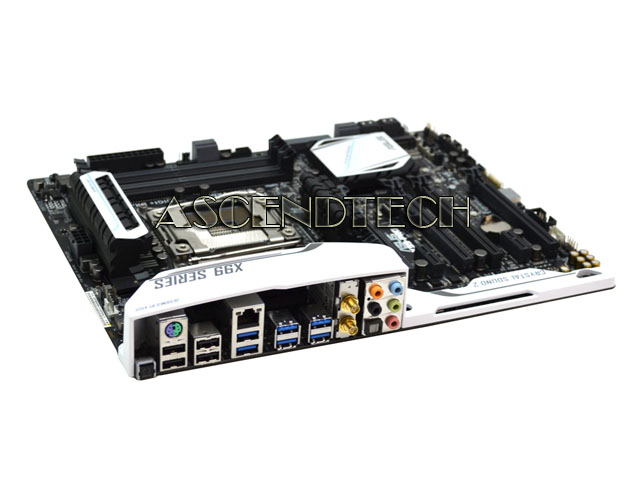

Asus X99-PRO Rev. 1.01 Intel X99 Socket 2011-V3 DDR4 SATA 6Gb/s Genuine ATX Motherboard. The ASUS X99-PRO is an ATX motherboard, measuring 9.60 in. x 12.00 in. It was designed for use with an Intel processor that fits in an LGA 2011 (Socket R) socket. The ASUS features an Intel X99 chipset, which could be considered extreme-complexity, meaning that it has almost any feature imaginable on a consumer motherboard. Extreme-complexity boards are truly top-of-the-line and come at a higher price point than most motherboards.

Asus Model Number: X99-PRO
Asus Part Number: 90MB0KQ0-M0AAY0

Please Note: This motherboard does not come with Rear I/O Shield also known as Case Back-Plate Cover. This part is not needed and you can still install the board in standard ATX case. No Cables, No Manuals or any other Accessories included!


Features:

Unmatched performance, fast 802.11ac Wi-Fi connectivity,
flawless Crystal Sound 2 audio and customizable Turbo App for your awesome X99 build.

Patent Pending OC Socket – Drive CPU and DDR4 performance beyond all expectations!
5-Way Optimization by Dual Intelligent Processors 5 – One click overclock and cooling, done!
Dual 32Gb/s ultrafast M.2 x4 (onboard and PCIE add-in card)
Crystal Sound 2 - Flawless audio that makes you part of the game!
ASUS HomeCloud with 2x2 802.11ac Wi-Fi - Access your PC remotely and
stream multimedia content anywhere, anytime

Specifications:

CPU
Intel® Socket 2011-v3 Core™ i7 Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® X99
Memory
8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
40-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *2
1 x PCIe 2.0 x16 (x4 mode) *3
2 x PCIe 2.0 x1 (x1 mode) *3
Storage
New Intel® Core™ i7 Processors :
2 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
Intel® X99 chipset :
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), *4,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*5
LAN
Intel® I218V, 1 x Gigabit LAN Controller(s)
Wireless Data Network
Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Bluetooth
Bluetooth V4.0
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
USB Ports
Intel® X99 chipset :
5 x USB 3.0/2.0 port(s) (4 at mid-board)
Intel® X99 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
ASMedia® USB 3.0 controller :
5 x USB 3.0/2.0 port(s) (5 at back panel, )
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Turbo App
Fan Xpert 3

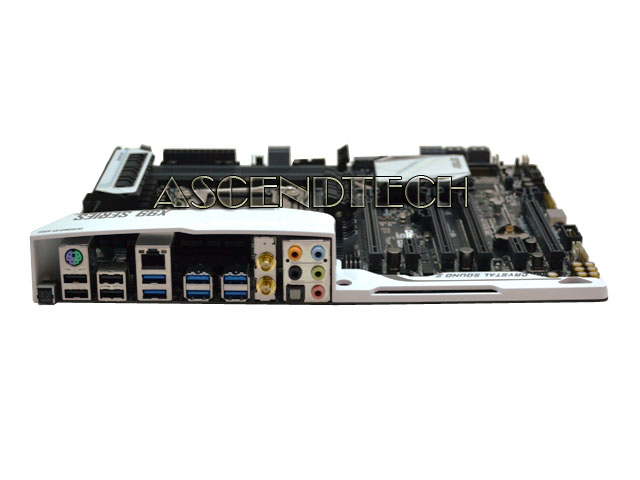

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray,
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
Operating System
Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
