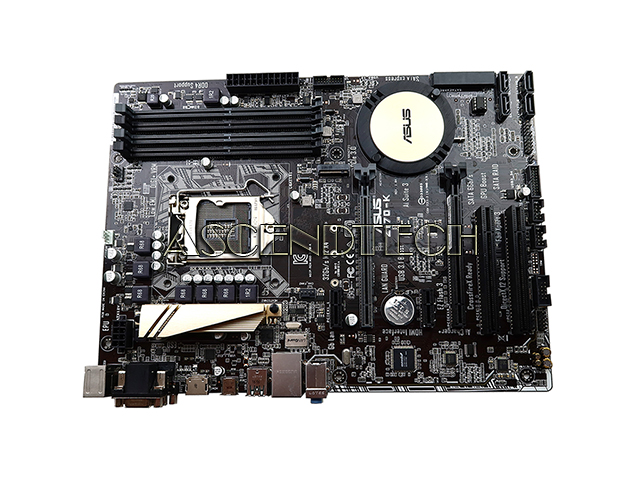

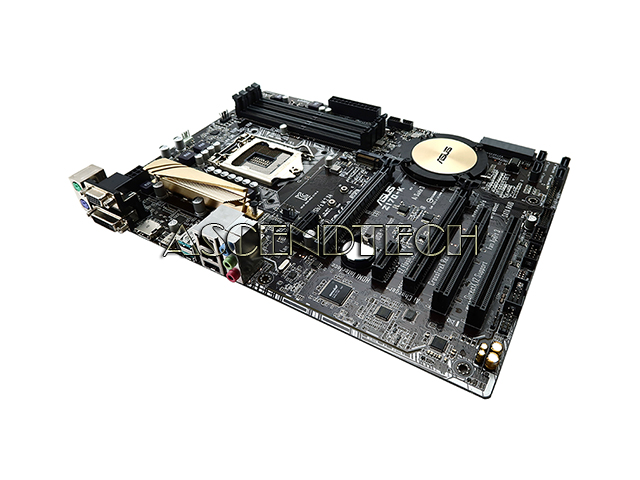

Z170-K MB0NB0-B05 | Asus Z170-K Desktop Motherboard No I/O

Asus Z170-K Intel Chipset Z170 Socket LGA1151 DDR4 HDMI DVI-D USB SATA 6Gb/s ATX Desktop Motherboard MB0NB0-B05.

Chipset: Intel Z170

Socket: Intel LGA1151

Processor/CPU: 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Wireless Lan Support: Realtek 8111GR Gigabit LAN Controller

Audio: Realtek ALC887 8-Channel High Definition Audio CODEC

Connectors: 2x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin); 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports; 1x M.2 Socket 3 for M Key, type 2242/2260/2280 devices; 1x COM port(s) connector(s); 4x SATA 6Gb/s connector(s); 1x CPU Fan connector(s) (1x 4 -pin); 2x Chassis Fan connector(s) (2x 4 -pin); 1x S/PDIF out header(s); 1x 24-pin EATX Power connector(s); 1x 8-pin ATX 12V Power connector(s); 1x Front panel audio connector(s) (AAFP); 1x System panel(s); 1x Clear CMOS jumper(s).

Input/Output Ports: 1x PS/2 keyboard (purple); 1x PS/2 mouse (green); 1x DVI-D; 1x D-Sub; 1x HDMI; 1x LAN (RJ45) port(s); 1x 5Gb/s port(s) USB Type-C ( support 3A power output ); 2x USB 3.1 Gen 2 (teal blue)Type-A; 2x USB 2.0; 3x Audio jack(s).

Expansion Slots: 1x PCIe 3.0/2.0 x16 (x16 mode, gray); 1x PCIe 3.0/2.0 x16 (max at x4 mode, black); 2x PCIe 3.0/2.0 x1; 2x PCI.

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10, 64bit; Windows 8.1, 64bit; Windows 7, 32bit/64bit.

Features: 5X Protection II – Advanced hardware safeguards for all-round protection; DDR4 memory overclocked to 3466MHz; Onboard USB 3.1 Gen 2 for 10Gbit/s data transfer speeds; Lightning-fast M.2 with PCIe 3.0 x4 interface; Epic gaming audio with LED-illuminated shielding; Media-acclaimed UEFI BIOS with EZ Flash 3; Fan Xpert 3 advanced fan controls for ultimate cooling and silent performanc.

Additional Specifications:

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 60 Hz
- Supports RGB with max. resolution 1920 x 1200 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Multi-GPU Support
Supports AMD Quad-GPU CrossFireX Technology

Audio Feature
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB
ASMedia USB 3.1 controller:
2x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue)
Intel Z170 chipset:
4x USB 3.1 Gen 1 port(s) (4 at mid-board)
1x USB 5Gb/s port(s) port(s) (1 at back panel, USB Type-C, Reversible, Support 3A power output)
6x USB 2.0/1.1 port(s) (2 at back panel, Type-A, 4 at mid-board)

Special Features
ASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU:
- EPU
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- Ai Charger+
- M.2 & SATA Express
- Anti-Surge
- Low EMI Solution
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
