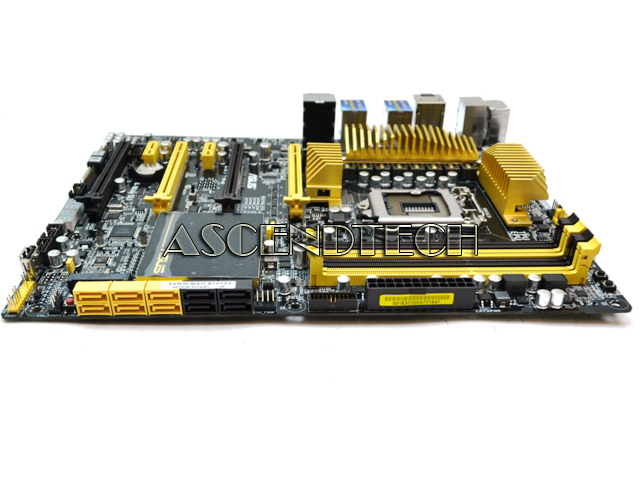

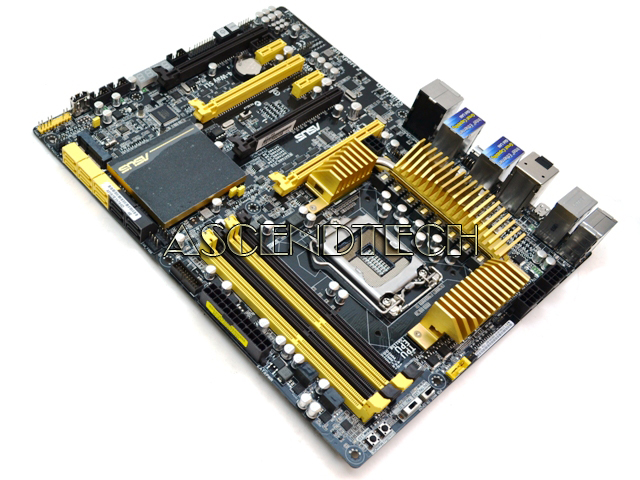

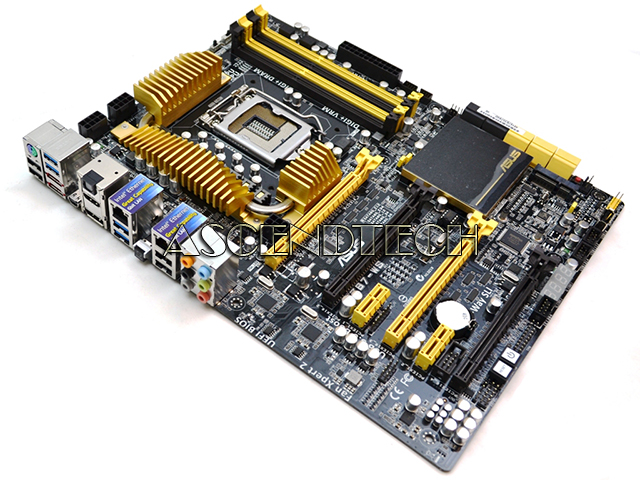

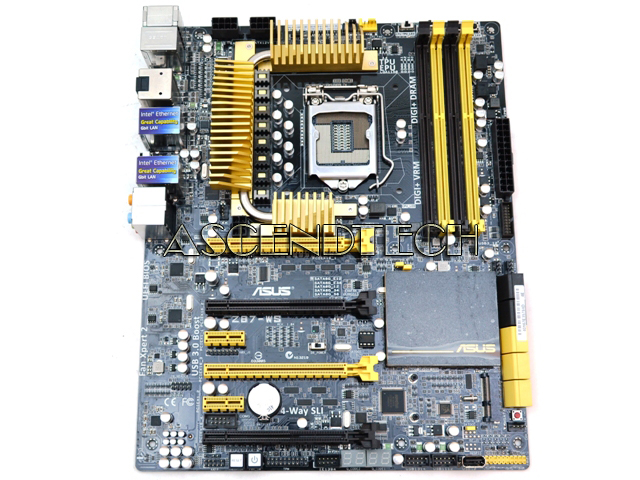

90SB0390-M0AAY0 | Asus Z87-Ws Ddr3 Usb 3.0 Atx Motherboard

ASUS Z87-WS Rev. 1.04 Intel Socket LGA 1150 (H3) DDR3 USB 3.0/2.0 SATA 6Gb/s ATX Motherboard 90SB0390-M0AAY0. ASUS-branded motherboards deliver the highest standards of innovation, performance, and reliability. All ASUS motherboards launch following a strict validation process that guarantees the best quality and compatibility in the industry. ASUS tests each motherboard with literally hundreds of memory, expansion card, and external device combinations from nearly every brand and vendor on the market. ASUS Motherboards also pass the most demanding stress-testing process in the industry, verifying their stability, reliability, and longevity.

Please Note: This motherboard comes with the I/O shield only! No cables, manuals, or any other accessories included.

Features:

Best Graphics Performance with Gen3 CrossFireX and GeForce SLI
Intelligent PSU Detection with ASUS Dr.Power
4-Way Optimization improves performance, efficiency, stability and cooling
Better networking with new dual server-grade Intel I210 Ethernet
New UEFI BIOS provides full-scale Performance turning with easy BIOS settings

Specifications:

Manufacturer	ASUS
Model	Z87-WS Rev. 1.04
Part Number	90SB0390-M0AAY0
CPU	Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron/Xeon E3-1200/12x5 v3 series Processors Supports Intel 22 nm CPU * The Intel Turbo Boost Technology 2.0 support depends on the CPU types * Refer to www.asus.com for Supported CPU list, or see below
Chipset	Intel Z87 Express Chipset
Memory	4 x DIMM, Max. 32GB, DDR3 2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/ 2133(OC)/1866(OC)/1800/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)
Graphics	Integrated Graphics Processor* Multi-VGA output support: HDMI/DisplayPort /Mini DisplayPort ports** - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @60 Hz Maximum shared memory of 1024MB Supports up to 3 displays simultaneously * Intel HD Graphics support ** DisplayPort 1.2 Multi-Stream Transport compliant, supports DisplayPort 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC Supports : Multi-streaming, Front Panel Jack-retasking High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB (Line-in) Audio Features: Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound DTS Ultra PC II DTS Connect Optical S/PDIF out port(s) at back panel BD Audio Layer Content Protection
LAN	Intel I210, 2 x Gigabit LAN Controller(s)
IEEE 1394	1 x IEEE 1394a port(s) (1 at mid-board)
Expansion Slots	4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8) 2 x PCIe 2.0 x1
Storage	Intel Z87 chipset: 6 x SATA 6Gb/s port(s), yellow Support Raid 0, 1, 5, 10 Marvell PCIe 9230 controller: 4 x SATA 6Gb/s port(s), black Support Raid 0, 1, 10 ASMedia ASM1061 controller: 2 x eSATA 6Gb/s port(s), red
USB	Intel Z87 chipset: 3 x USB 3.0/2.0 port(s) (1 at back panel, blue, 2 at mid-board) Intel Z87 chipset: 9 x USB 2.0/1.1 port(s) (4 at back panel, 5 at mid-board) ASMedia USB 3.0 controller: 3 x USB 3.0/2.0 port(s) (3 at back panel, blue)
Workstation Features	4 x PCIe x 16 slot(s) Quick Gate: 1 x vertical USB 2.0 on board ASUS Dr. Power
Internal I/O Connectors	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 2.0/1.1 vertical port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 10 x SATA 6Gb/s connector(s) 1 x mSATA connector 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x DirectKey Button(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Dr.Power switch(es)

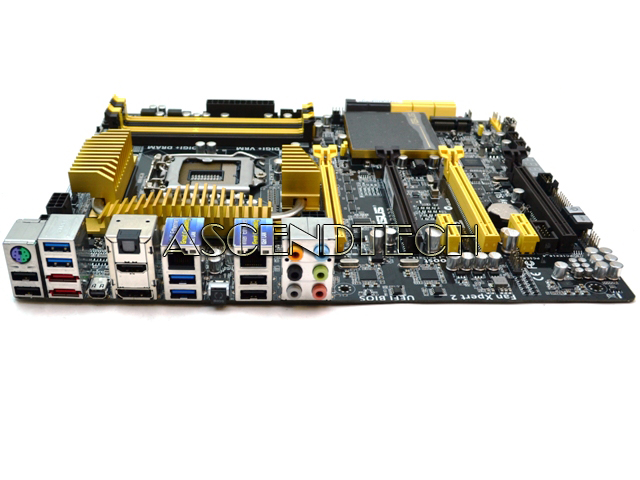

Back I/O Connectors	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI port 1 x Mini DisplayPort 2 x eSATA 6Gb/s 2 x LAN (RJ45) port(s) 4 x USB 3.0 port(s) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 2.7, WOL by PME, PXE
Unique Features	ASUS Dual Intelligent Processors 4 with 4-Way Optimization: The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration ASUS EPU: EPU EPU switch ASUS Digital Power Design: Industry leading Digital 8 Phase CPU Power Design Industry leading Digital 2 Phase DRAM Power Design ASUS DIGI+ VRM Utility CPU Power Utility DRAM Power Utility ASUS Exclusive Features: TurboV EVO GPU Boost USB BIOS Flashback MemOK! AI Suite 3 Ai Charger+ USB Charger+ Anti-Surge Onboard Button: Power/Reset Front Panel USB 3.0 Support ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS SSD Caching II Network iControl USB 3.0 Boost Disk Unlocker ASUS EZ DIY: DirectKey Precision Tweaker 2 ASUS O.C. Profile ASUS CrashFree BIOS 3 ASUS EZ Flash 2 Multi-language BIOS ASUS Q-Design: ASUS Q-Shield SUS Q-Code ASUS Q-LED (CPU, DRAM, VGA) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector 100% All High-quality Conductive Polymer Capacitors Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Operating System Support	Windows 8 32/64-bit Windows 7 32/64-bit
Form Factor	ATX Form Factor 12" x 9.6" (30.5cm x 24.4cm)

Supported CPU List:

Celeron G1820 ( 2.7GHz, 2C, L3:2M, GT1, 54W, rev.C0)
Celeron G1820T(2.4GHz, 2C, L3:2M, GT1, 35W, rev.C0)
Celeron G1830 (2.8GHz, 2C, L3:2M, GT1, 54W, rev.C0)
Celeron G1840 (2.8GHz, 2C, L3:2M, GT1, 53W, rev.C0)
Celeron G1840T (2.5GHz, 2C, L3:2M, GT1, 35W, rev.C0)
Celeron G1850 (2.9GHz, 2C, L3:2M, GT1, 53W, rev.C0)
Core i3-4130 (3.4GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)
Core i3-4130T (2.9GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)
Core i3-4150 (3.5GHz, 2C, HT, L3:3M, HD Graphic, 54W, rev.C0)
Core i3-4150T (3.0GHz, 2C, HT, L3:3M, HD Graphic, 35W, rev.C0)
Core i3-4160 (3.6GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)
Core i3-4160T (3.1GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)
Core i3-4170 (3.7GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)
Core i3-4170T (3.2GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)
Core i3-4330 (3.5GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)
Core i3-4330T (3.0GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)
Core i3-4340 (3.6GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)
Core i3-4350 (3.6GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0)
Core i3-4350T (3.1GHz, 2C, HT, L3:4M, HD Graphic, 35W, rev.C0)
Core i3-4360 (3.7GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0)
Core i3-4360T (3.2GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)
Core i3-4370 (3.8GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)
Core i3-4370T (3.3GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)
Core i5-4430 (3.0GHz, 4C, L3:6M, GT2, 84W, rev.C0)
Core i5-4430S (2.7G, 4C, L3:6M,GT2, 65W, rev.C0)
Core i5-4440 (3.1GHz, 4C, L3:6M, GT2, 84W, VT-D, rev.C0)
Core i5-4440S (2.8GHz, 4C, L3:6M, GT2, 65W, VT-D, rev.C0)
Core i5-4460 (3.2GHz, 4C, L3:6M, HD Graphic, 84W, rev.C0)
Core i5-4460S (2.9GHz, 4C, L3:6M, HD Graphic, 84W, rev.C0)
Core i5-4460T (1.9GHz, 4C, L3:6M, HD Graphic, 35W, rev.C0)
Core i5-4570 (3.2Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)
Core i5-4570S (2.9G, 4C, L3:6M, GT2, VT-D, 65W, rev.C0)
Core i5-4570T (2.9Ghz, 2C, L3:4M, GT2, VT-D, 35W, rev.C0)
Core i5-4590 (3.3Ghz, 4C, L3:6M, HD Graphic, 84W, rev.C0)
Core i5-4590S (3.0Ghz, 4C, L3:6M, HD Graphic, 65W, rev.C0)
Core i5-4590T (2.0Ghz, 4C, L3:6M, HD Graphic, 35W, rev.C0)
Core i5-4670 (3.4Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)
Core i5-4670K (3.4Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)
Core i5-4670S (3.1Ghz, 4C, L3:6M, GT2, VT-D, 65W, rev.C0)
Core i5-4670T (2.3Ghz, 4C, L3:6M, GT2, VT-D, 45W, rev.C0)
Core i5-4690 (3.5Ghz, 4C, L3:6M, HD Graphic, 84W, rev.C0)
Core i5-4690K (3.5Ghz, 4C, L3:6M, HD Graphic, 88W, rev.C0)
Core i5-4690S (3.2Ghz, 4C, L3:6M, HD Graphic, 65W, rev.C0)
Core i5-4690T (2.5Ghz, 4C, L3:6M, HD Graphic, 45W, rev.C0)
Core i7-4765T (2.0Ghz, 4C, L3:8M, GT2, VT-D, 35W, rev.C0)
Core i7-4770 (3.4Ghz, 4C, L3:8M, GT2, VT-D, 84W, rev.C0)
Core i7-4770K (3.5Ghz, 4C, L3:8M, GT2, 84W, rev.C0)
Core i7-4770S (3.1Ghz, 4C, L3:8M, GT2, VT-D, 65W, rev.C0)
Core i7-4770T (2.5Ghz, 4C, L3:8M, GT2, VT-D, 45W, rev.C0)
Core i7-4771 (3.5Ghz, 4C, HT, L3:8M, GT2, VT-D, 84W, rev.C0)
Core i7-4785T (2.2Ghz, 4C, HT, L3:8M, HD Graphic, 35W, rev.C0)
Core i7-4790 (3.6Ghz, 4C, HT, L3:8M, HD Graphic, 84W, rev.C0)
Core i7-4790K (4.0Ghz, 4C, HT, L3:8M, HD Graphic, 88W, rev.C0)
Core i7-4790S (3.2Ghz, 4C, HT, L3:8M, HD Graphic, 65W, rev.C0)
Core i7-4790T (2.7Ghz, 4C, HT, L3:8M, HD Graphic, 45W, rev.C0)
Pentium G3220 (3.0GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3220T (2.6GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3240 (3.1GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3240T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3250 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3250T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3258 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3260 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3260T (2.9GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3420 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3420T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3430 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3440 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3440T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3450 (3.4GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3450T (2.9GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3460 (3.5GHz, 2C, L3:3M, GT1, 53W, rev.C0)
Pentium G3460T (3.0GHz, 2C, L3:3M, GT1, 35W, rev.C0)
Pentium G3470 (3.6GHz, 2C, L3:3M, 53W)
Xeon E3-1220 V3 (3.1GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1220L V3 (1.1GHz, 2C, HT, L3:4M, 13W, rev.C0)
Xeon E3-1225 V3 (3.2GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1226 V3 (3.3GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1230 V3 (3.3GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1230L V3 (1.8GHz, 4C, HT, L3:8M, 25W, rev.C0)
Xeon E3-1231 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1240 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1241 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1245 V3 (3.4GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1246 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1270 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1271 V3 (3.6GHz, 4C, HT, L3:8M, 80W, rev.C0)
Xeon E3-1275 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1276 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1280 V3 (3.6GHz, 4C, HT, L3:8M, 82W, rev.C0)
Xeon E3-1281 V3 (3.7GHz, 4C, HT, L3:8M, 82W, rev.C0)
Xeon E3-1285 V3 (3.6GHz, 4C, HT, L3:8M, 84W, rev.C0)
Xeon E3-1285L V3 (3.1GHz, 4C, HT, L3:8M, 65W, rev.C0)
Xeon E3-1286L V3 (3.2GHz, 4C, HT, L3:8M, 65W, rev.C0)
