ASUSH110M AND Intel Core i7-7700 COMBO

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

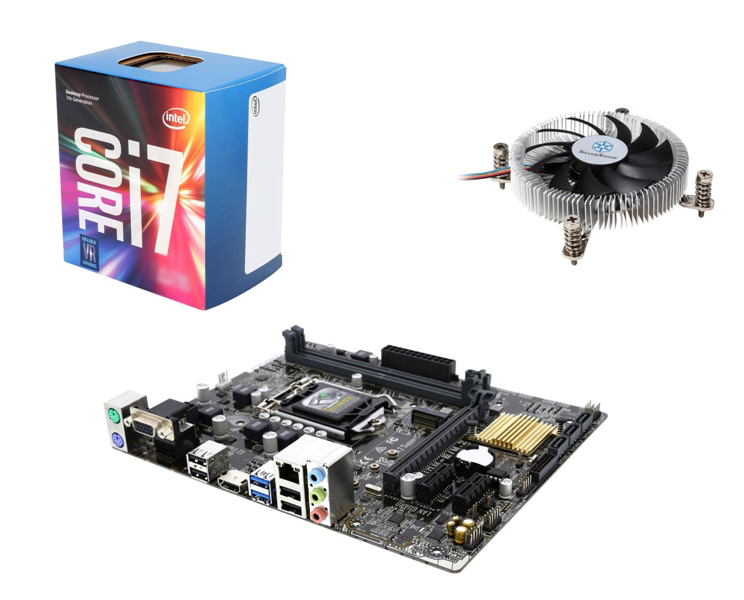

Asush110m And Intel Core I7-7700 Combo
  Enlarge
Asush110m And Intel Core I7-7700 Combo
Asush110m And Intel Core I7-7700 Combo
Asush110m And Intel Core I7-7700 Combo
Asush110m And Intel Core I7-7700 Combo
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBCASUSH110I777
Model Intel Core i7-7700 Combo

Description

New Page 1

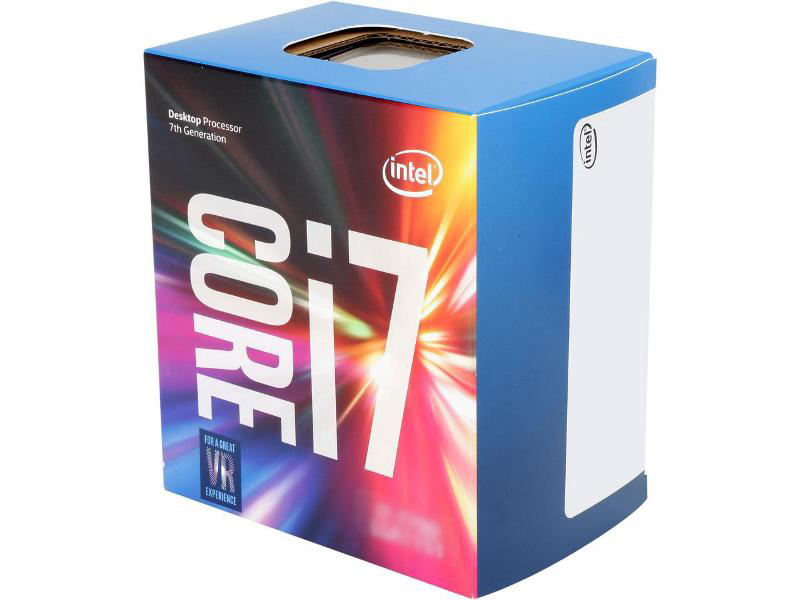

  • Intel Core i7-7700 Kaby Lake Quad-Core 3.6 GHz LGA 1151 65W Desktop Processor

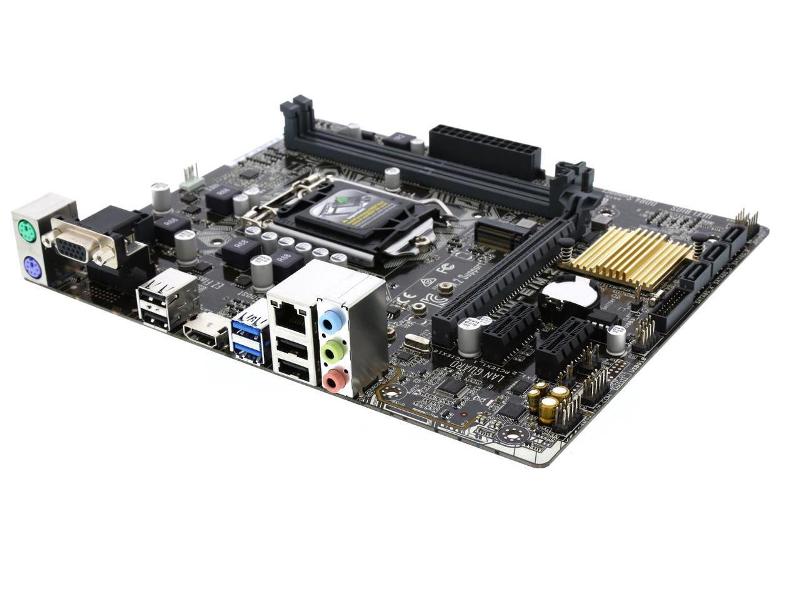

  • ASUS H110M-E/M.2 LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.1 Micro ATX Motherboards - Intel

  • CPU Cooler















Model

Brand
ASUS
Model
H110M-E/M.2

Supported CPU

CPU Socket Type
LGA 1151
CPU Type
Intel Socket 1151 for 6th Generation Core i7/i5/i3/ Pentium/Celeron Processors
Supported CPU Technologies
Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets

Chipset
Intel H110

Onboard Video

Onboard Video Chipset
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB
Supports up to 2 displays simultaneously

Memory

Number of Memory Slots
2×288pin
Memory Standard
DDR4 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
* Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 MHz.
Maximum Memory Supported
32GB

Expansion Slots

PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 mode)
PCI Express x1
2 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s
4 x SATA 6Gb/s port(s)
M.2
1 x M.2 Socket 3

Onboard Audio

Audio Chipset
Realtek ALC887
Audio Channels
8 Channels.

Onboard LAN

LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
Video Ports
1 x D-Sub
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Physical Spec

Form Factor
Micro ATX
Dimensions (W x L)
8.9" x 7.3"
Power Pin
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
