ATI Radeon HD7350 512MB DDR3 HDMI DVI
Description

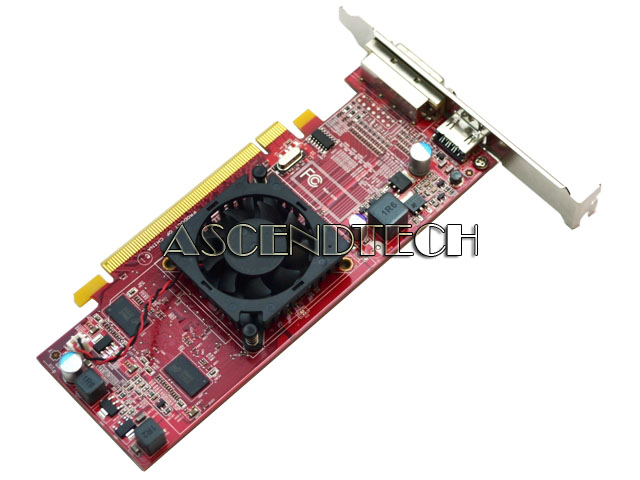

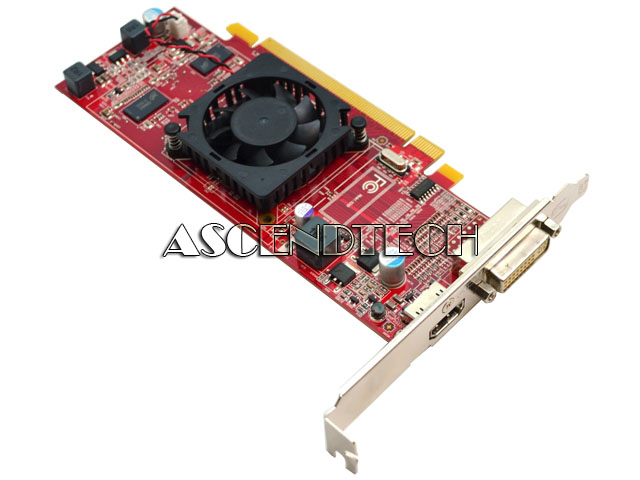

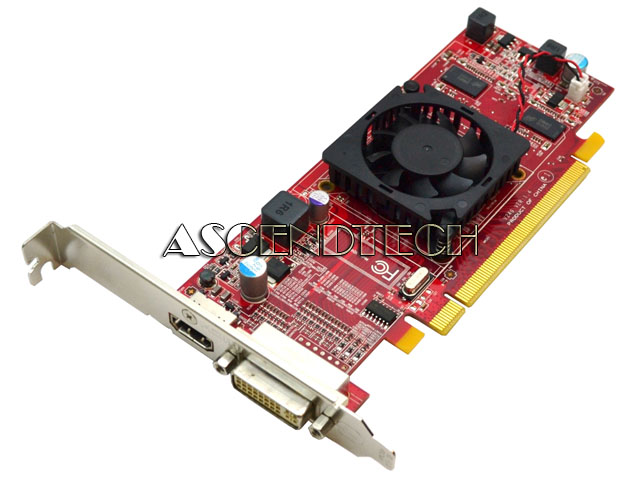

ATI Radeon HD7350 512MB DDR3 PCI-Express 2.1 x16 HDMI DVI Full Height Graphics Video Card. AMD Radeon HD 7350 GDDR3 is a desktop Graphics Processing Unit, that uses TeraScale 2 Unified Processing architecture and is manufactured on 40 nm technology. The GPU was introduced in January 2012. The card has 650 MHz graphics clock frequency. It also has 80 stream processors, 8 texture units, along with 4 color ROPs. Because the memory is clocked at 800 MHz, and utilizes 64 bit bus, the effective memory bandwidth is 12.8 GB/s. The GPU supports PCI Express 2.1 interface. The maximum power consumption of this model is 19.1 Watt.
HP Part Number: 695625-001
Compatible Part Numbers: 701401-001
ATI Model Number: V249 Ver: 1.4
HP/Compaq Name: Meerk2FH
Specifications:
| Memory | 512 MB |
| Memory Type | GDDR3 |
| Memory Clock | 800 MHz |
| Memory Clock (Effective) | 1.6 GHz |
| Memory Interface Width | 64-Bit |
| Memory Bandwidth | 12.8 GB/s |
| Architecture | TeraScale 2 Unified Processing Architecture |
| Fabrication Process | 40 nm |
| Transistors | 292 million |
| Bus Interface | PCI-Express 2.1 x16 |
| Graphics Clock | 650 MHz |
| Color ROPs | 4 |
| Z/Stencil ROPs | 16 |
| Stream processor | 80 |
| Texture Units | 8 |
| RAMDACs | 400 MHz |
| Multi-Monitor | Up to 3 displays |
| Maximum Digital Resolution | 2560x1600 |
| Maximum VGA Resolution | 2048x1536 |
| HDMI | Yes |
| Pixel Fill Rate | 2.6 Gigapixels/s |
| Texture Fill Rate | 5.2 Gigatexels/s |
| Polygon throughput | 650 million polygons/s |
| Single Precision Compute Power | 104 GFLOPS |

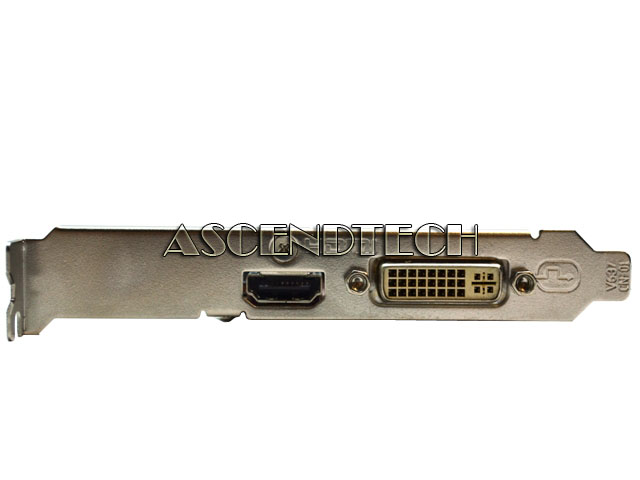

| Connectors | x1 HDMI x1 DVI |
