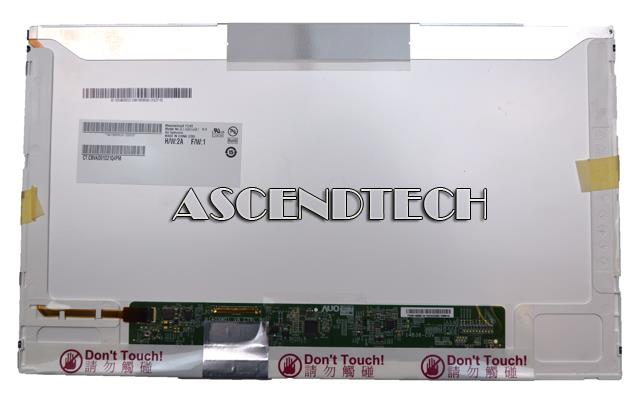

AU Optronics 14" HD TFT LED LCD DISPLAY

AU Optronics B140XW01 V.6 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. AU Optronics B140XW01 V.6 is designed for a display unit of notebook style personal computer and industrial.


Specifications:

Screen Diagonal mm: 354.95
Active Area mm: 309.4 X173.95
Pixels H x V: 1366x3(RGB) x 768
Pixel Pitch mm: 0.2265X0.2265
Pixel Format: R.G.B. Vertical Stripe
Display Mode: Normally White
White Luminance (ILED=20mA) (Note: ILED is LED current) cd/m2: 200 typ. (5 points average) 170 min. (5 points average)
Luminance Uniformity: 1.25 max. (5 points)
Contrast Ratio: 500 typ
Response Time ms: 8 typ / 16 Max
Nominal Input Voltage VDD Volt: +3.3 typ.
Power Consumption Watt: 3.8 max. (Include Logic and Blu power)
Weight Grams: 350 max.

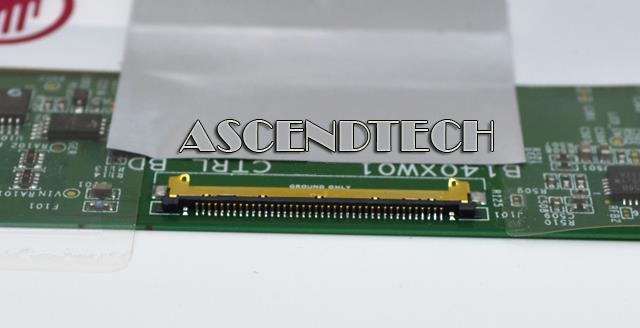

Electrical Interface: 1 channel LVDS
Glass Thickness mm: 0.5
Surface Treatment: Glare, Hardness 3H
Support Color: 262K colors ( RGB 6-bit )
