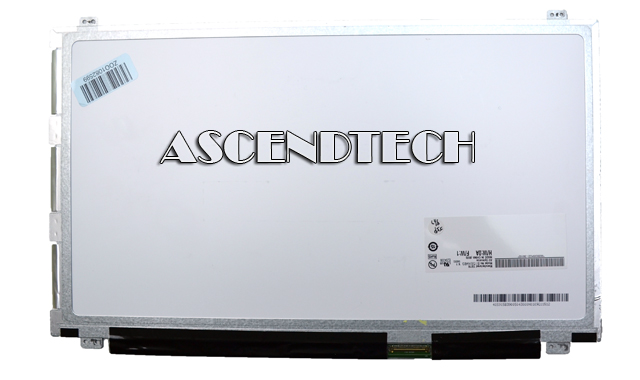

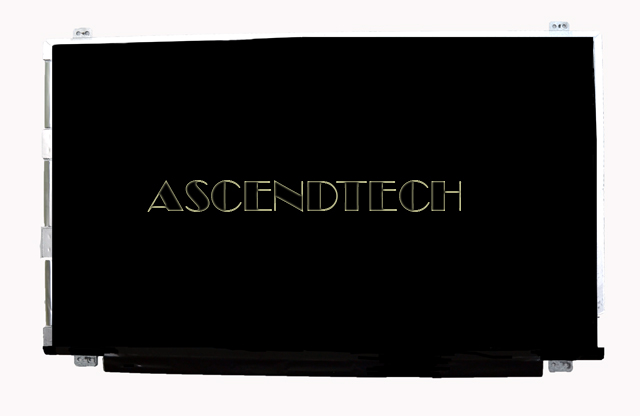

AU Optronics 15.6" LCD LED WXGA Screen

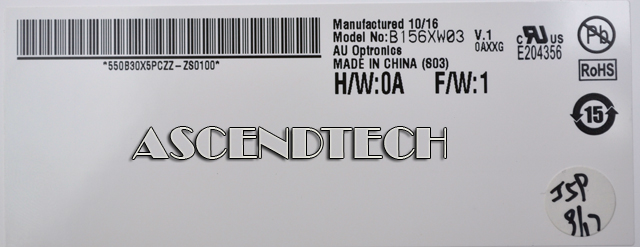

AU Optronics B156XW03 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the HD (1366(H) x 768(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. B156XW03 V1 is designed for a display unit of notebook style personal computer and industrial machine.

Specifications:

Screen Diagonal mm: 394.9 (15.5”)
Active Area mm: 344.2 x 193.5
Pixels H x V: 1366x3(RGB) x 768
Pixel Pitch mm: 0.252 x 0.252
Pixel Format: R.G.B. Vertical Stripe
Display Mode: Normally White
Luminance Uniformity: 1.25 max. (5 points)
Contrast Ratio: 500 typ
Response Time ms: 8 typ / 15 Max
Nominal Input Voltage VDD Volt: +3.3 typ.
Power Consumption Watt: 5.4 max. (Include Logic and BLU power)
Weight Grams: 425 max.

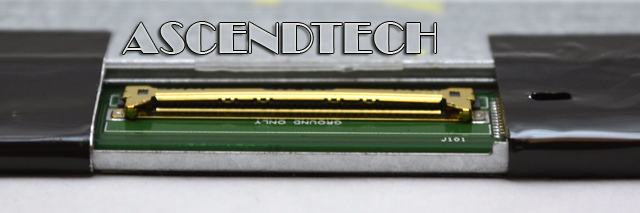

Electrical Interface: 1 channel LVDS
Glass Thickness mm: 0.5
Surface Treatment: Glare, Hardness 3H,
Reflection: <5%
Support Color: 262K colors ( RGB 6-bit )
RoHS Compliance: RoHS Compliance
