AU Optronics 20.1" Color LCD Display

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

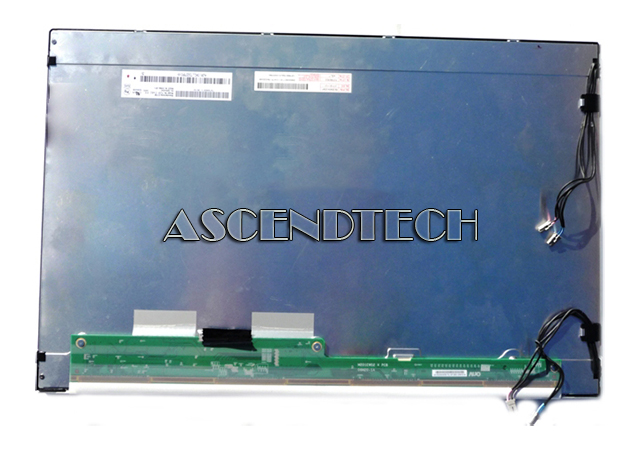

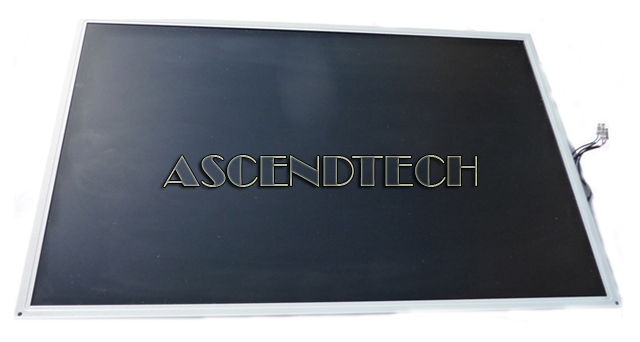

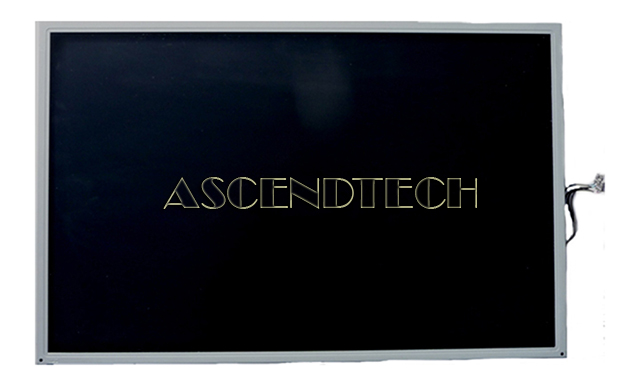

Au Optronics 20.1" Color Lcd Display. Model: M201ew02 V.8
  Enlarge
Au Optronics 20.1" Color Lcd Display. Model: M201ew02 V.8
Au Optronics 20.1" Color Lcd Display. Model: M201ew02 V.8
Au Optronics 20.1" Color Lcd Display. Model: M201ew02 V.8
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LCDAUOPM201EW02
Brand Au Optronics
Model M201EW02 V.8
Category Laptop Lcd Screens & Digitizers
Condition Like New Grade A

Description

AU Optronics Dell XPS One A2010 MTG AIO 20.1" 1680x1050 Wide WSXGA+ Color TFT-LCD Screen Display Panel M201EW02 V.8.

AU Optronics Model Number: M201EW02 V.8
Compatible Models: Dell XPS One A2010 MTG All-In-One Desktop PC







Specifications:

Screen Diagonal: [mm] 511.13 (20.1”Wide)
Active Area: [mm] 433.44 (H) x 270.90(V)
Pixels: H x V 1680(x3) x 1050
Pixel Pitch: [mm] 0.258 (per one triad) x 0.258
Pixel Arrangement: R.G.B. Vertical Stripe
Display Mode: Normally White
White Luminance ( Center ): [cd/m2] 300cd/m2 @ 7.5mA (Typ)
Contrast Ratio: TBD
Optical Response Time: [msec] TBD (Typ, on/off)
Nominal Input Voltage VCC: [Volt] +5.0 V
Power Consumption (VCC line + CCFL line): [Watt] TBD
Weight: [Grams] 2500 (Typ)
Physical Size: [mm] 459.4(W) x 296.4(H) x 16.6(D) (Typ)
Electrical Interface: Dual Channel LVDS
Support Color: 16.7M colors (RGB 6-bits+Hi-FRC data )
Surface Treatment: Hard-coating (3H), Anti-Glare treatment
RoHS: RoHS compliance
