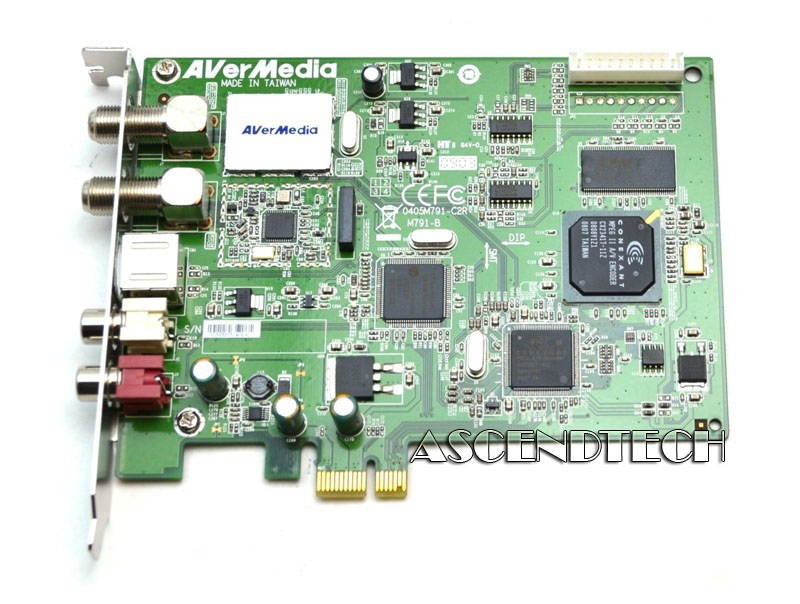

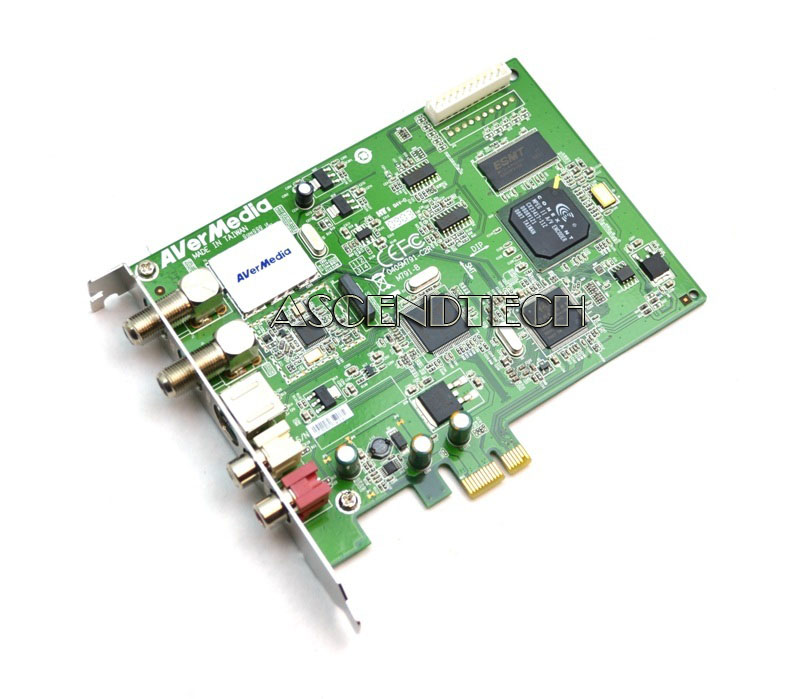

AverMedia M791B TV Tuner PCI-E x1 Card
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Description
AverMedia M791-B NTSC/ATSC TV Tuner PCI-Express (×1) PC Card. The AverMedia M791-B NTSC/ATSC TV tuner card is a PCI-Express (×1) ATSC and analog television combo receiver. It can be used to record and capture music and television programs on the computer in original MPEG-2 format, straight to the hard disk drive.
Specifications:
| Manufacturer | AVerMedia |
| Manufacturer Model Number | M791-B |
| Hardware | |
| Bus interface | PCI Express Revision 1.0a / x1 lane configuration |
| Channel Coverage | |
| FM radio band | 85.75M to 108 M Hz |
| Low band | 55.25M to 160M Hz |
| Mid band | 160.00M to 442.00M Hz |
| High band | 442.00M to 801.25M Hz |
| Digital TV Standard | |
| ATSC A/53 compliant 8/16VSB and MMDS 2/4/8VSB | |
| ITU-T J.83 Annex B/C, SCTE DVS-031 compliant 64/256QAM | |
| Dimension | |
| Form Factor | Full height |
| Dimension | 105.5 ×137.8 mm (PCB) |

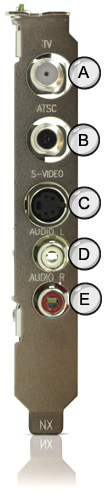

| A | CATV |
| B | ATSC |
| C | S-Video in |
| D | Audio left channel |
| E | Audio right channel |
