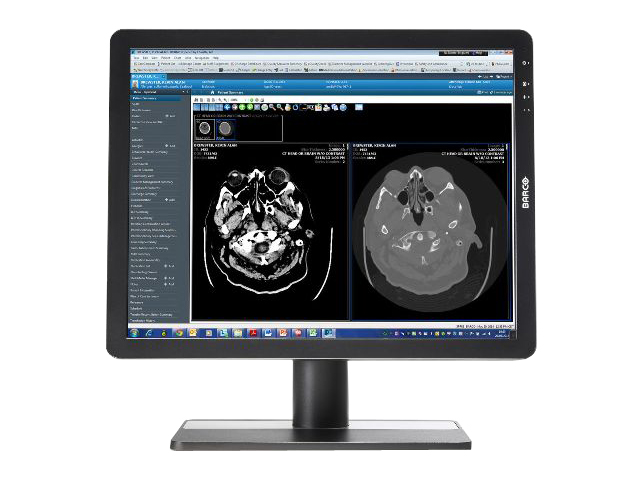

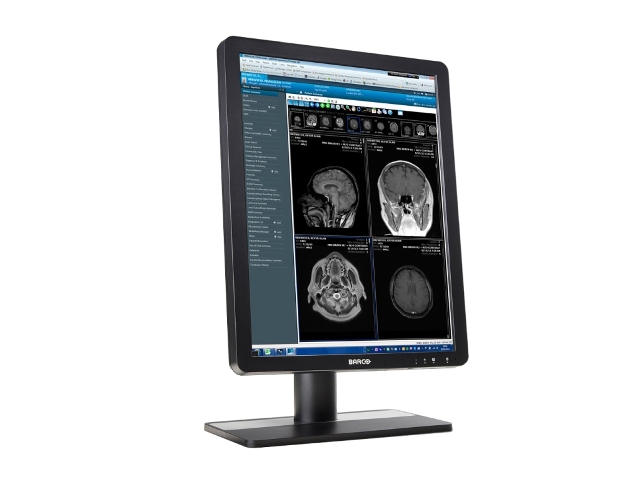

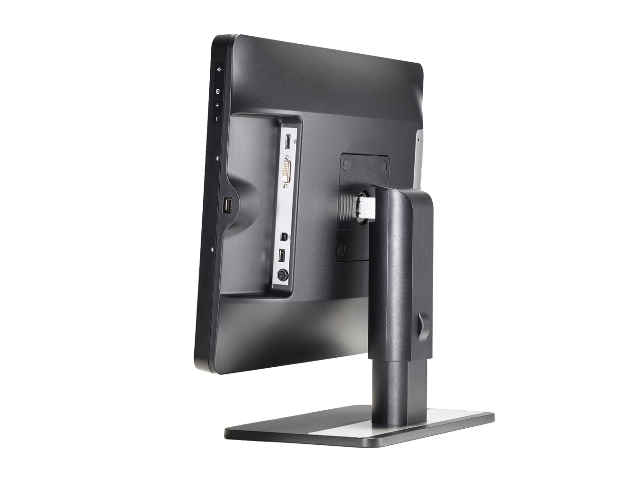

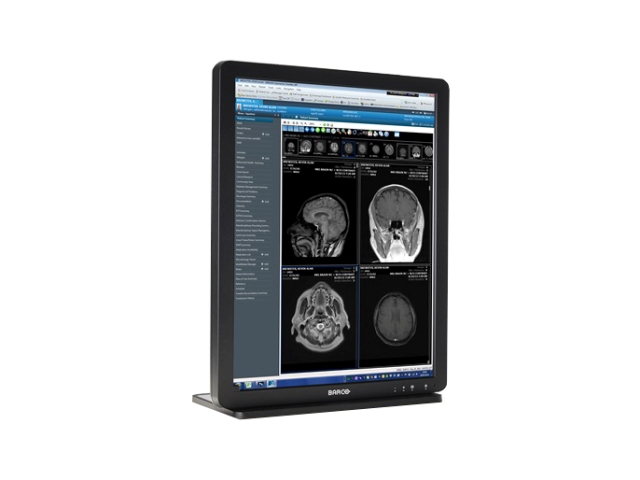

Barco MDRC-2221 21" Clinical Monitor
Description
Barco Eonis MDRC-2221 21" Series Wide Screen 1600x1200 Clinical Medical LED LCD Display Monitor. The display offers flexible tilt and swivel capabilities and a space-saving design to make viewing more ergonomic. Additionally, positioning the 21-inch screen in portrait orientation provides you with more flexibility when viewing skeletal radiography images or patient data.
Barco Part Number: K9301880A
New - Open Box Item / Original Packaging Is Missing, But The Monitor Is In New Condition!
Included:
1 X Monitor Stand
1 X Printer Cable
1 X DVI Cable
1 X Power Cord
Specifications:
Screen technology | TFT Color LCD |
Active screen size (diagonal) | 541 mm (21.3") |
Active screen size (H x V) | 432 mm x 324 mm (17" x 12.76") |
Aspect ratio (H:V) | 4:3 |
Resolution | 2MP (1600 x 1200) |
Pixel pitch | 0.270 |
Color imaging | Yes |
Gray imaging | Yes |
Color support | 10 bit |
Viewing angle (H, V) | 178° |
Ambient Light Compensation (ALC) | Yes, preset values in OSD |
Front sensor | Yes |
Maximum luminance | 440 cd/m2; typical |
DICOM calibrated luminance | 250 cd/m² |
Contrast ratio | 1500:1 typical |
Response time (Tr + Tf) | 20 ms |
Housing color | Black + Silver |
Video input signals | DisplayPort, DVI |
USB ports | 1 upstream, 2 downstream |
USB standard | 2.0 |
Power requirements (nominal) | 100 - 240 V |
Power consumption (nominal) | 32 W (< 1W in stand-by) |
Power save mode | Yes |
Power management | DPMS |
OSD languages | English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean |
Dimensions with stand (W x H x D) | 376 x 591.7 x 201.33 mm (portrait) |
Dimensions w/o stand (W x H x D) | 376 x 484 x 75.93 mm (portrait) |
Dimensions packaged (W x H x D) | 584 x 667 x 272 mm |
Net weight with stand | 8.7 kg |
Net weight w/o stand | 5.25 kg |
Net weight packaged with stand | 12.4 kg |
Height adjustment range | 100.0 +/- 5.0 mm |
Tilt | -5° / +20° |
Swivel | -45° / +45° |
Pivot | Yes |
Mounting standard | VESA (100 mm) |
Screen protection | N/A |
Certifications | CE (MDD 93/42/EEC class I product), CE-2014/30/EU, IEC 60601-1:2005, ANSI/AAMI ES60601-1 (2005/(R)2012 + C1:2009/(R)2012 + A2:2010/(R)2012), CAN/CSA-C22.2 No. 60601-1 (2008), DEMKO - EN 60601- 1:2006, EN 60601-1-2:2007, EN60601-1:2006+A11:2011, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS, BSMI |
Designed to boost productivity & ergonomics
Equipped with LED backlights, Eonis® 21" features a 250 cd/m² calibrated luminance and an excellent contrast ratio, allowing you to view high-detail images quickly and efficiently and with fewer image manipulations. IPS panel technology ensures accurate images even when looked at from a wide viewing angle. Built-in ambient light presets ensure perfect image quality in dark or bright reading environments.
The front-of-screen consistency sensor works seamlessly together with Barco's MediCal QAWeb service for quality assurance and remote asset management and automatically aligns image quality every time the display is switched on, providing you with a solid basis for confident image review.
