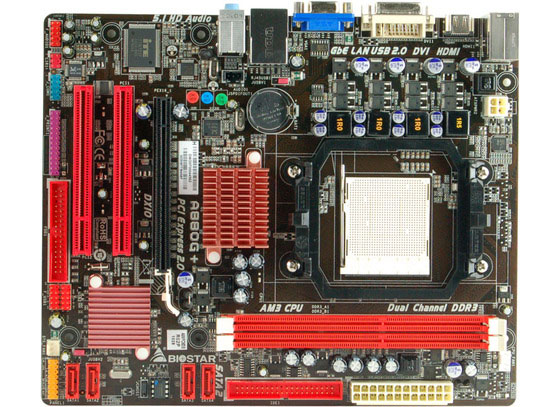

BIOSTAR A880G+ AMD 880G AM3 MOTHERBOARD

Biostar A880G+ Socket AM3 Micro ATX Motherboard. Biostar A880G+ Motherboard Features: AMD 880G / SB710 Chipset and HDMI ports


Specifications:

MANUFACTURER:
Biostar

MODEL NUMBER:
A880G+

CHIPSET:
AMD 880G / SB710

CPU SUPPORT:
AMD Phenom™ II X6 Processor
AMD Phenom™ II X4 Processor
AMD Phenom™ II X3 Processor
AMD Phenom™ II X2 Processor
AMD Athlon™ II X4 Processor
AMD Athlon™ II X3 Processor
AMD Athlon™ II X2 Processor
AMD Sempron™ Processor
Maximum CPU TDP (Thermal Design Power) : 125Watt

HT:
Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification)

MEMORY:
Support Dual Channel DDR3 800/1066/1333 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 8GB Memory

EXPANSION SLOT:
2 x PCI Slots
1 x PCI-E x16 2.0 Slot

STORAGE:
4 x SATA2 3Gb/s Connector
1 x IDE Connector
Support SATA RAID: 0,1,10

USB:
4 x USB 2.0 Port
2 x USB 2.0 Header

LAN:
Realtek RTL8111DL - 10/100/1000 Controller

INTEGRATED VIDEO:
ATI Radeon™ HD4250 Graphics , Max. Memory Share Up to 512 MB
Support ATI Hybrid Crossfire . Please refer to http://ati.amd.com/technology/hybridgraphics/technology.html for details

SOUND:
Realtek ALC662 6-Channel HD Audio

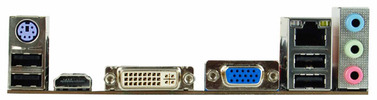

REAR I/O:
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x HDMI Connector
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector

INTERNAL I/O:
1 x Printer Header
2 x USB 2.0 Header
4 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Floppy Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
1 x CIR Header

DIMENSION:
Micro ATX Form Factor Dimension: 24.4cm X 20cm ( W x L )
