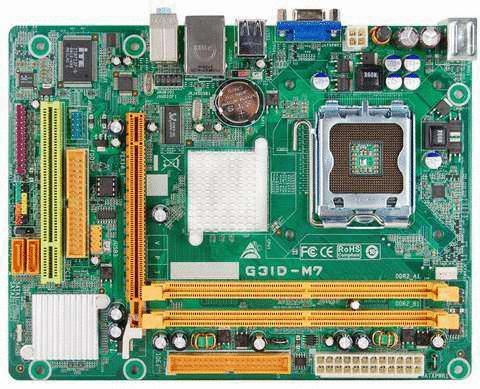

BIOSTAR G31D-M7 INTEL G31 LGA775 DDR2 MB

BIOSTAR G31TD-M7 Socket LGA 775, Intel G31, DDR2 800, MATX Motherboard. Get excellent power of performance with the BIOSTAR G31TD-M7 Motherboard. This micro-ATX motherboard is based on Intel's G31 and ICH7 chipsets. BIOSTAR G31TD-M7 Motherboard features onboard Intel GMA 3100 chipset, or you can install a PCI Express x16 graphics card to take on the load. Another PCI slot allows further expansion of your system and the Realtek ALC662 audio chipset delivers 6 channels of sound for your enjoyment.


Specifications:

Brand: BIOSTAR
Model: G31TD-M7
CPU SUPPORT:
Intel® Core™2 Duo Processor
Intel® Pentium® Dual-Core Processor
Intel® Celeron® Dual-Core Processor
Intel® Celeron® Processor 400 Sequence
Maximum CPU TDP (Thermal Design Power) : 65Watt
FSB:
Support FSB 800/1066/1333MHz
MEMORY:
Support Dual Channel DDR2 667/800 MHz
2 x DDR2 DIMM Memory Slot
Max. Supports up to 4GB Memory
EXPANSION SLOT:
1 x PCI Slots
1 x PCI-E x16 Slot
STORAGE:
2 x SATA2 3Gb/s Connector
1 x IDE Connector
USB:
4 x USB 2.0 Port
1 x USB 2.0 Header
LAN:
Realtek RTL8102EL - 10/100 Controller
INTEGRATED VIDEO:
Intel Graphics Media Accelerator 3100 On Board Graphic Max. Share Memory 256MB
CODEC:
Realtek ALC662 6-Channel HD Audio
REAR I/O:
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O:
1 x Printer Header
1 x USB 2.0 Header
2 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Floppy Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
DIMENSIONS:
Micro ATX Form Factor Dimension: 22.5 cm X 17 cm ( W x L )
