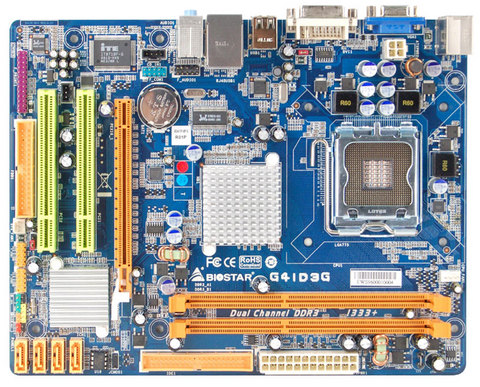

BIOSTAR G41D3G LGA 775 G41 MOTHERBOARD

BIOSTAR G41D3G LGA 775 Intel G41 Micro ATX Motherboard. BIOSTAR G41D3G Motherboard Features: Socket LGA 775, Support for Intel Core 2 Quad/Core 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series Processor, FSB 800/1066/1333MHz and DDR3 800/1066 Memory support.

SPECIFICATIONS:

BRAND: BIOSTAR
MODEL: G41D3G
CHIPSET: Intel G41 / ICH7
CPU SUPPORT:
Intel Core 2 Quad Processor
Intel Core 2 Duo Processor
Intel Pentium Dual-Core Processor
Intel Celeron Dual-Core Processor
Intel Celeron Processor 400 Sequence
MAXIMUM CPU TDP (Thermal Design Power) : 95Watt
FSB:
Support FSB 800/1066/1333MHz
MEMORY:
Support Dual Channel DDR3 800/1066 MHz
2 x DDR3 DIMM Memory Slot
Maximum Memory up to 4GB
EXPANSION SLOT:
2 x PCI Slots
1 x PCI-E x16 Slot
STORAGE:
4 x SATA2 3Gb/s Connector
1 x IDE Connector
USB:
4 x USB 2.0 Port
2 x USB 2.0 Header
LAN:
Realtek RTL8111DL - 10/100/1000 Controller
INTEGRATED VIDEO:
Integrated Intel Graphics Media Accelerator X4500. ( Intel® X4500)
Pixel Shader 4.0, DirectX 10
Supports RGB with max. resolution 2048 x 1536@75Hz
Maximum shared memory 1759MB
SOUND:
Realtek ALC662 6-Channel HD Audio

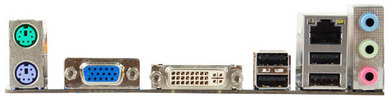

REAR I/O:
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O:
1 x Printer Header
2 x USB 2.0 Header
4 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CD-IN Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
DIMENSION:
Micro ATX Form Factor Dimension: 24.4cm X 19cm ( W x L )
