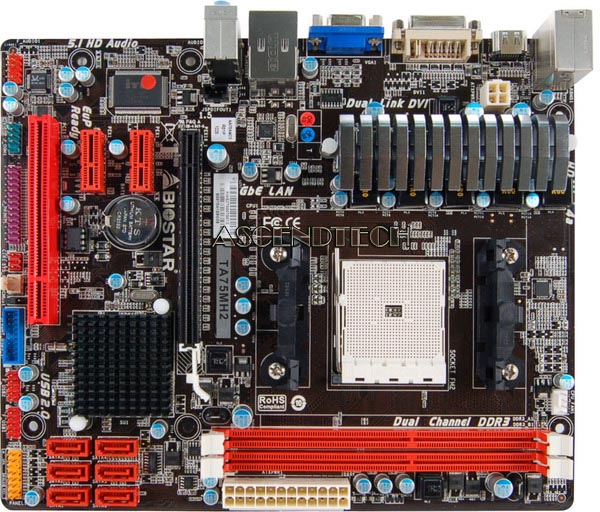

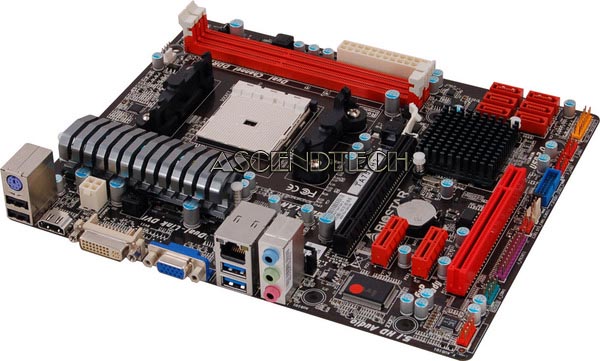

BIOSTAR TA75MH2 FM2 AMD A75 DDR3 mATX MB

BIOSTAR TA75MH2 FM2 AMD A75 (Hudson D3) HDMI SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard. The Biostar TA75MH2 Socket FM2 Motherboard comes with Socket FM2 that allows you to connect a reliable AMD A-series/ E2-series processor. Equipped with DirectX 11 support, you can enjoy next-generation games with sensational visual performance. Plus, the BIOSTAR G.P.U (Green Power Utility) offers low energy consumption by disabling extra phases while CPU is under light loading. This motherboard is built with 100% capacitor that ensures you the durability and stability for every components.





Features:

• Supported Socket FM2 processors AMD A-series/ E2-series processor
• Supported AMD Mutil Core(x4,x2)
• AMD 100W processor support
• AMD A75 Chipset
• 2 DIMM supported DDR3-1866/ 1600/ 1333/ 1066/ 800
• Supported SATA 6Gb/s 2X speed than current SATA 3G
• Supported USB 3.0
• AMD Dual Graphics Technology
• 100% X.D.C solid capacitor

Specification:

SOCKET: FM2
CHIPSET: AMD A75
CPU SUPPORT:
AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt
MEMORY:
Support Dual Channel DDR3 1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory
EXPANSION SLOT:
1 x PCI-E x16 2.0 Slot
2 x PCI-E x1 2.0 Slot
1 x PCI Slots
STORAGE:
6 x SATA3 Connector
Support SATA RAID: 0,1,10
USB:
2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN:
Realtek RTL8111F - 10/100/1000 Controller
INTEGRATED VIDEO:
By CPU model
AMD Dual Graphics Technology
Supports DX11
Supports HDCP
CODEC:
Realtek ALC662 6-Channel HD Audio

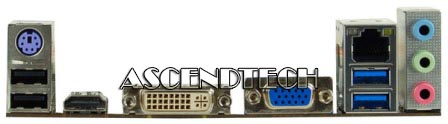

REAR I/O:
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O:
1 x Printer Header
1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
1 x CIR Header
DIMENSION:
Micro ATX Form Factor Dimension: 24.4cm x 20cm ( W x L )
