Broadcom 56K V.90 PCI Modem / Fax & Lan

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

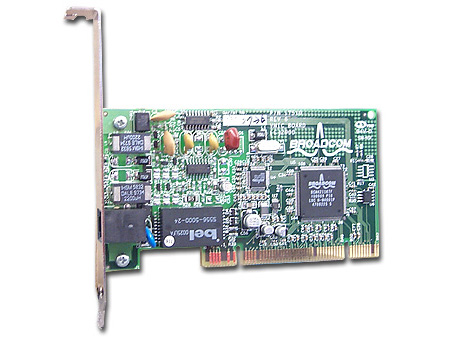

Broadcom 56K V.90 Pci Modem / Fax & Lan. Model: 6001947
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MDIGW6001947
Brand Broadcom
Model 6001947
Category Internal Modems

Description

The Home Phoneline Network Adapter 2.0 (HPNA) Modem combo card combines a 10 megabits per second (Mbps) home networking solution with an industry standard V.90 56K modem supporting data, fax, and Windows Driver Model (WDM) voice features. This card combines two popular components to reduce the number of cards or USB devices connected to a computer.

Specifications
Supported Operating SystemsWindows 98, Windows 98SE, Windows 2000, Windows Me® download drivers below and Windows XP Plug N Play
Power ManagementSupports ACPI power management schemes in the PCI v2.2 specification. The combo Home Phoneline Networking Adapter (HPNA) / v.90 modem supports both "Wake on LAN" and "Wake on Ring" from the D0, D2, and D3 cold and D3 warm states.
MechanicalMeets all PCI 2.2 specifications.
Magnetic Device Certifications
  • US FCC Part 15 Class B
  • Canada Class B telecommunication device
Telecommunication Device Certifications
  • US - FCC Part 68
  • Canada - IC CS-03
Environmental SpecificationsOperating
  • Temperature: 0°C to 55°C (32°F to 128°F)
  • Altitude: 10,000 ft
  • Humidity: 5% to 85%
  • Shock: Three half sine 1-G impulse shocks in both directions of each of three orthogonal axes, 11-millisecond duration
  • Vibration: .5G, 5 to 500-Hz, 1 octave per minute in each of the orthogonal axes, 20 minutes time

Non-Operating

  • Temperature: -40°C to 80°C (-40°F to 175°F)
  • Altitude: 40,000 ft
  • Humidity: 15% to 98% no condensation
  • Shock: Three half sine 20G impulse shocks in both directions of each of three orthogonal axes, 11-millisecond duration
  • Vibration: 1-G, 5 to 500-Hz, 1 octave per minute in each of the orthogonal axes, 20 minutes time.
  • Package Drops: ASTM Standard Test Method D5276 (first 10 drops at 32" and last at 48")
ReliabilityMean Time Between Failures (MTBF): 500,000 hours

Compatible Gateway Part number 6001618, 6001619, 6001761, 6001762, 6001856, 6001857, 6001947
Please click on this link to download the latest drivers!
