Chungwa 14.1" TFT LED LCD Screen Panel

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

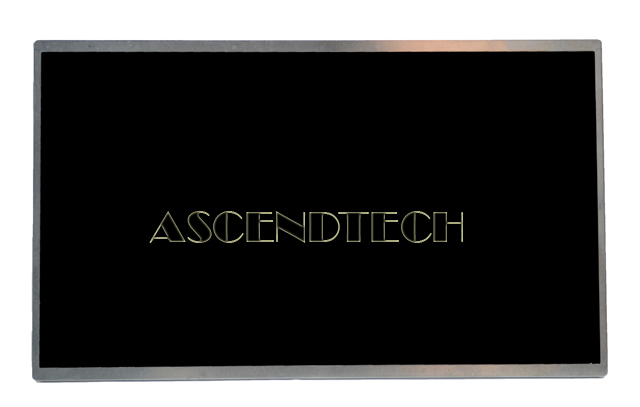

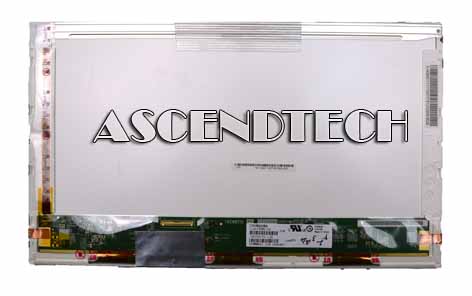

Chungwa 14.1" Tft Led Lcd Screen Panel. Model: Claa141wb05a Display
  Enlarge
Chungwa 14.1" Tft Led Lcd Screen Panel. Model: Claa141wb05a Display
Chungwa 14.1" Tft Led Lcd Screen Panel. Model: Claa141wb05a Display
Chungwa 14.1" Tft Led Lcd Screen Panel. Model: Claa141wb05a Display
Chungwa 14.1" Tft Led Lcd Screen Panel. Model: Claa141wb05a Display
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LPTLCDCLAAWB05A
Brand Chunghwa
Model CLAA141WB05A Display
Category Laptop Lcd Screens & Digitizers

Description

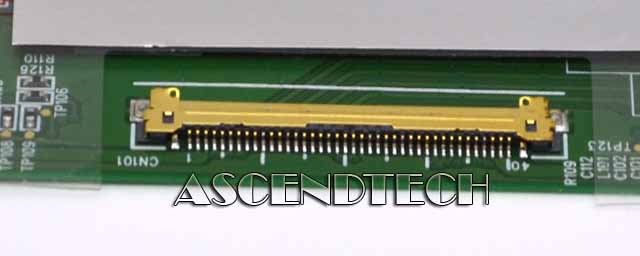

Chungwa CLAA141WB05A (with LVDS interface) is 14.1" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, LVDS driver ICs, control circuit, and backlight. By applying 6 bits digital data, 1280×800, 262K color images are displayed on the 14.1" diagonal screen. Input power voltage is single 3.3V for LCD driving.


Specifications:

Display Area: 303.744 (H)x189.84 (V) (14.1-inch diagonal)
Number of Pixels: 1280 ×3(H)×800(V)
Pixel Pitch: 0.2373(H)×0.2373(V)
Color Pixel Arrangement: RGB vertical stripe
Number of Colors: 262,144
Optimum Viewing Angle: 6 o’clock
Brightness: 200 cd/m2 (5P)；Lamp current 6 mA (typ.)
Viewing Angle: 80/60
Power Consumption: 6.0 W (typ) w/o inverter
Module Size: 319.5(W)×205.5(H)×5.5(D)（Max）
Module Weight: 400(typ)；420(max)
Backlight Unit: 1CCFL
Surface Treatment: Glare (Haze value 12%); Hardness: 3H
