Cisco 2811 Services Routers 800-26920-04
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code SRVRUTS80026920
Brand Cisco Systems
Model 800-26920-04
Category Network Switches & Management
Condition Like New Grade A
Condition Description Please Note, Cables are not Included!
Description

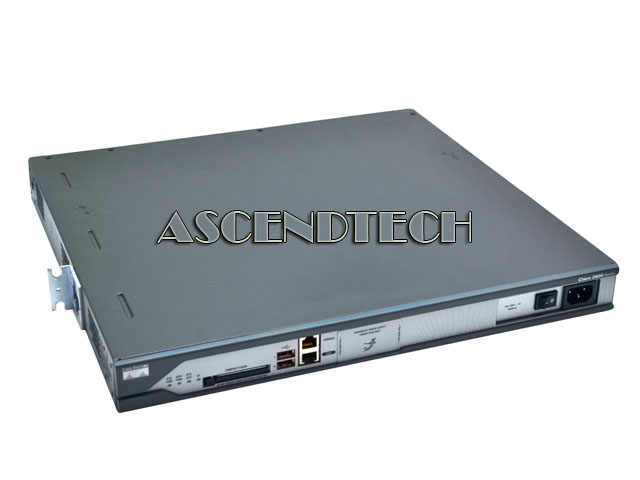

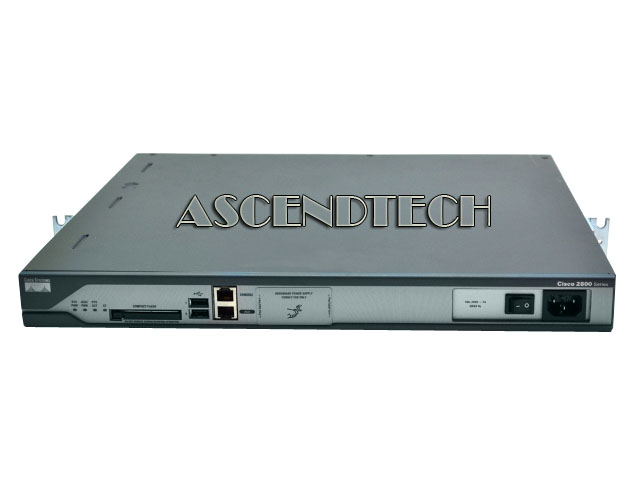

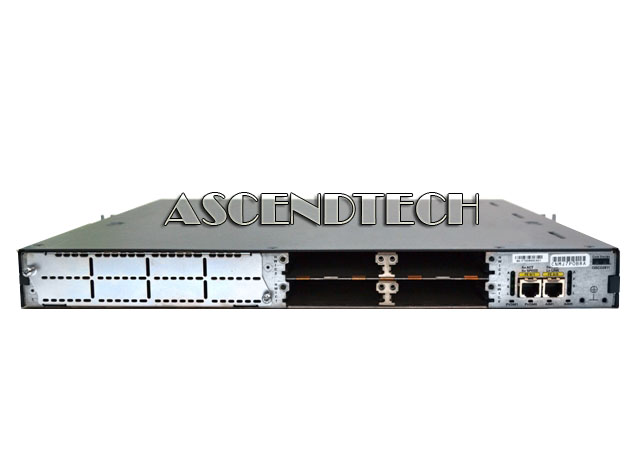

Cisco 2811 Series Integrated Services Routers 800-26920-04.
Cisco Part Number: 800-26920-04
Specifications:
| Redundant Power Supply: | External only; connector for RPS provided by default |
| AC Input Voltage: | 100 to 240 VAC |
| Power Dissipation: | AC: 160W (546 BTU/hr). AC with IP Phone: 210W (717 BTU/hr). AC with PoE-IP Phones: 160W (546 BTU/hr.). AC without PoE support: 170W (580 BTU/hr.). DC: 180W (614 BTU/hr.) |
| Auxiliaryport(upto115.2kbps): | 1 |
| Console port (up to 115.2 kbps): | 1 |
| Fixed USB 1.1 ports: | 2 |
| AC Input Current: | 2A (110V); 1A (230V) |
| AC Input Surge Current: | 50A maximum; one cycle (-48V power included) |
| AC-IP max in-line power distribution: | 160W |
| Optional integrated inline power (PoE): | Yes; requires AC-IP power supply |
| DC Input Current: | 8A (24V) ; 3A (60V); Startup current: 5A>10 ms |
| Dimensions (H x W x D): | 1.75 x 17.25 x 16.4 in. (44.5 x 438.2 x 416.6 mm.) |
| DC Input Voltage: | 24 to 60 VDC; autorunning positive or negative |
| AC Input Frequency: | 47 to 63 Hz |
| Onboard LAN ports: | 2 - 10/100 |
