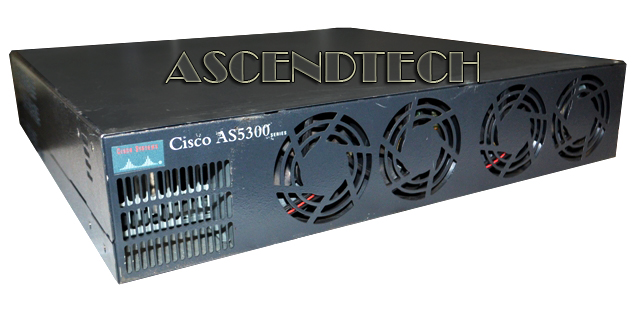

Cisco AS5300 Server Router 47-4200-07
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code NETCISC47420007
Brand Cisco Systems
Model 47-4200-07
Category Network Routers
Condition Pre-Owned Grade B
Condition Description Please note, this item is used and has minor scuffs and scratches, but is fully tested & completely operational. This unit does not come with AC adapter, cables or any other accessories!
Description
Genuine Original Cisco AS5300 Access Network Server Router with Modules 47-4200-07. The access server is intended for Internet service providers (ISPs), telecommunications carriers, and other service providers that offer managed Internet connections, and also medium to large sites that provide both digital and analog access to users on an enterprise network.
This unit includes 3 Module Cards:
2 x DSPM Voice Fax Card;
1 x QUAD T1/PRI Module Card.
Cisco Model Number: Cisco AS5300
Cisco Part Number: 47-4200-07
Specifications:
| Dimensions (H x W x D) | 3.5 x 17.5 x 18.25 in. (8.89 x 44.45 x 46.36 cm) |
| Processor | 150 MHz |
| Operating environment | 32 to 104×F (0 to 40×C) |
| Nonoperating temperature | -40 to 185×F (-40 to 85×C) |
| Input voltage, AC power supply Current Frequency Power factor Input AC power | 100 to 240 VAC2 5 - 2 A 50/60 Hz 0.80 to 0.95 200 to 400W (maximum) |
| Protection Output voltage Output voltage Output voltage Output voltage Peak output power Maximum system output power Typical system output power Ripple and noise | Current limit, overpower, overtemperature, (latch off) 3.3 VDC 5.0 VDC 12.0 VDC -12.0 VDC 350W 300W 250W under 200 mv at board level |
| WAN interface options | Quad T1/PRI (RJ-45) |
| Serial interfaces (for backhaul WAN support) | 4 serial line interfaces |
| LAN interface options | Ethernet 10BaseT (RJ-45) |
| Console and auxiliary ports | Asynchronous serial (RJ-45) |
