Cooljag 940/754 Heatsink Fan Assy V681A
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code CFNCOOLJAGV681A
Brand Cooljag
Model V681A R127015DH
Category Processor Coolers
Condition Like New Grade A
Condition Description Please note, this unit was removed from a brand new motherboard. It may have minor scuffs and scratches from disassembly process, but is fully operational and functions as intended!
Description

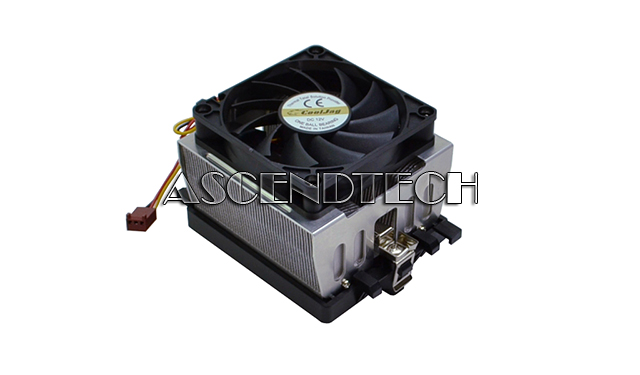

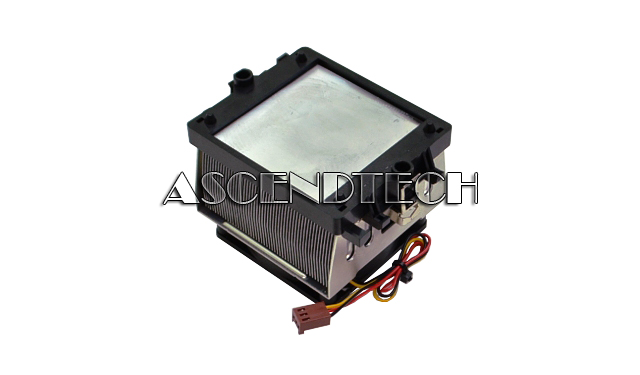

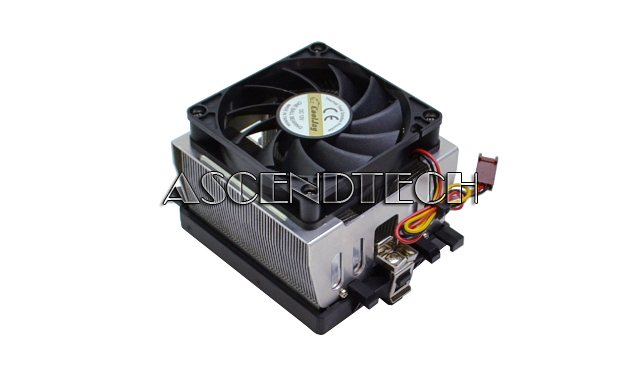

CoolJag Opteron 940/939/754 Socket Aluminum CPU Cooling Heatsink Fan Assembly V681A R127015DH.
CoolJag Part Number: V681A
Everflow Fan Part Number: R127015DH
Features:
Aluminum heat sink for high thermal conductivity
AMD Opteron 940/939/754 Socket Compatibility
Dimensions : 78mm (L) x 79mm (W) x 60mm (H)
Specifications:
- Fan size: 70x70x15 mm
- Fan voltage: 12V
- Bearing: Ball bearing
- Fan speed: 4200 rpm
- Noise Level: 34 dBA
- Air Flow: 34.8 CFM
- Power : 3.6 W
- Static pressure : 4.82 mmH2O
- Fan connector: 3-pin
- Lead wire: UL1007 #26AWG or equivalent
- Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
