Detailed Specifications
| Intel Core i7-3930K
3.3GHz Six Core Processor |
- Model: Intel Core i7-3930K
Processor
- Core Name: Skylake
- Core Count: 6
- Thread Count: 12
- Processor Base Frequency: 3.2GHz
- Max Turbo Frequency: 3.8GHz
- Intel Smart Cache: 12MB
- DMI2: 5.0GT/s
- Lithography: 32nm
- Socket: FCLGA2011
- Max Thermal Design Power: 130W
- Memory Type: DDR3 1066/1333/1600
- Max Number of Memory Channels: 4
- Max Memory Bandwidth: 51.2GB/s
|  |
|

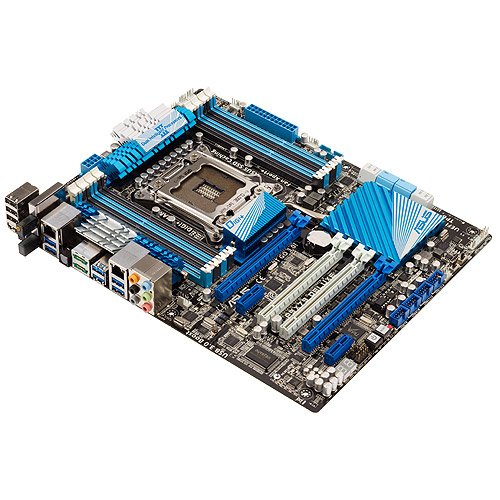

ASUS P9X79 Deluxe LGA2011 Motherboard |
- CPU Socket: LGA2011
- Chipset: Intel X79
- Memory: 8 x DIMM Slots, Quad-channel DDR3
2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Support
- Expansion Slots: 3 x PCIe 3.0 x16 (dual@x16;
triple@x16/x8/x8); 1 x PCIe 3.0 x16 (@x8) + 2 x PCIe 2.0 x1
- Video Support: AMD Quad-GPU CrossFireX and NVIDIA 3-Way
SLI support
- Networking: Dual Gb LAN featuring the latest Intel 82579V
& Realtek 8111E Chipsets
- Wireless: Bluetooth v3.0 + HS (Bluetooth v2.1 + EDR &
WiFi 802.11 b/g/n)
- Storage: 4x SATA 3Gb/s, 4x SATA 6Gb/s, 2x SATA 6Gb/s
port(s), white and 4x SATA 3Gb/s port(s), blue support RAID 0, 1, 5, 10
- Audio: Realtek ALC898 8 Audio Channels
- Form Factor: ATX
|  |
- Type: DDR4
- Capacity: 8GB
- Speed: PC12800 1600MHz
- Pins: 240pin
- Size & Bit: 512M x 8
- CL 11, 1.5V
|  |

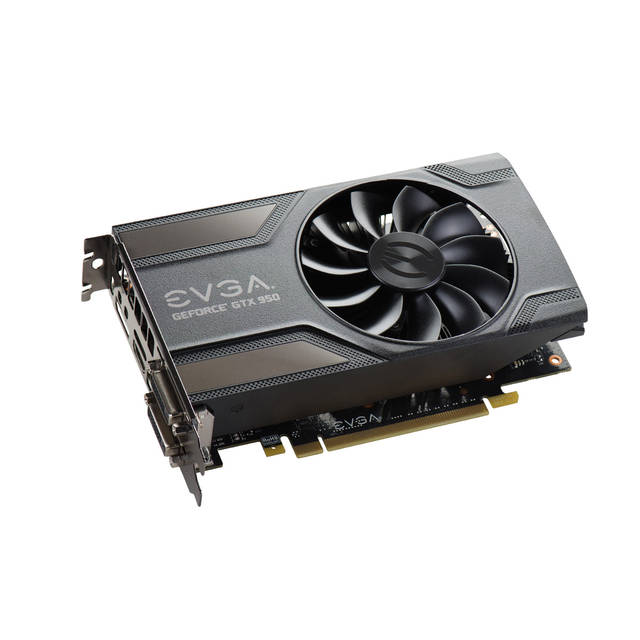

| NVIDIA GeForce GTX
950 2GB GDDR5 Video Card |
- Chipset: NVIDIA GeForce GTX 950
- Base Clock: 1025 MHz
- Boost Clock: 1190 MHz
- Video Memory: 2GB GDDR5
- Memory Clock: 6610 MHz Effective
- Memory Interface: 128-bit
- Memory Bandwidth: 105.76 GB/s
- Bus: PCI-Express 3.0 x16
- CUDA Cores: 768
- RAMDAC: 400 MHz
- Max Resolution: 4096 x 2160, Support 4x Display Monitors
- Input Connectors: 6pin PCI-E Power Connector
- Output Connectors: DVI-D, DVI-I, HDMI, DisplayPort
- Thermal: Fansink
|  |
|

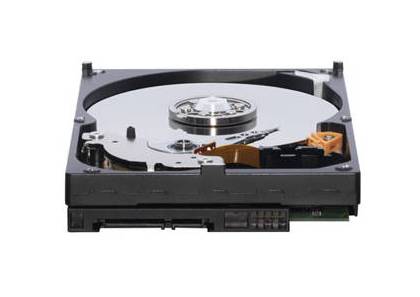

Western
Digital
1TB 7200RPM SATA 6GB/s Hard Drive |
- Capacity: 1 TB
- Rotational Speed: 7200 RPM
- Cache: 64 MB
- Interface: SATA3
- Max. Data Transfer Rate:
-
Buffer to Host: 6 Gb/s
-
Host to/from Drive (Sustained): 150 MB/s
- Form Factor: 3.5 inch
|
 |
|

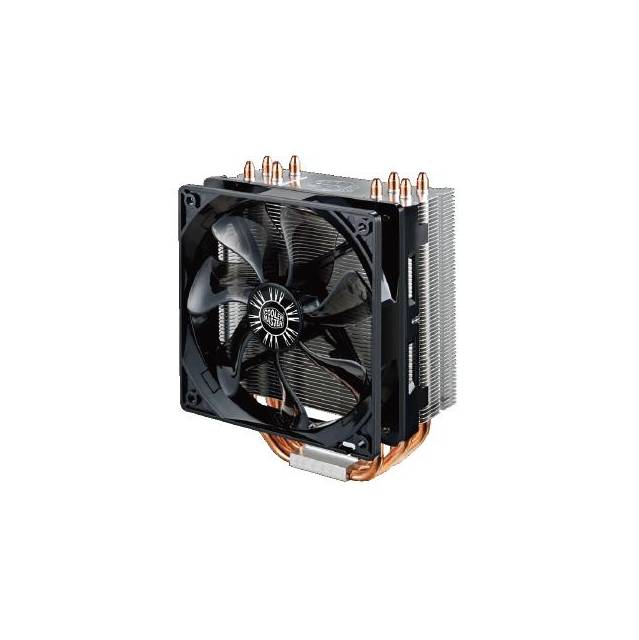

Cooler Master Hyper 212 EVO CPU Cooler Fan
|
- Fan
Speed: 600~2000 rpm(PWM) ± 10%
- Fan
Bearing Type: Long Life Sleeve Bearing
- Fan
Noise Level: 9 ~ 36 dBA
- Fan
Airflow: 24.9 ~ 82.9 CFM ± 10%
- Air Pressure: 0.3 ~ 2.7 mm H2O ± 10%
-
Fan
Connector: 4 pin
- Heatsink
Material: 4 Direct Contact Heat Pipes / Aluminum Fins
|
|
|
LG 24X DVD±RW Reader & Rewriter Combo |
- Internal
DVD±RW Super-Multi Half-height Internal DVD Rewriter
-
Write Methods:
-DVD+R/-R: 24X
-DVD+R/-R DL: 8X
-DVD+RW/-RW: 8X/6X
-DVD-RAM: 5X
-CD-R: 48X
-CD-RW: 24X
-M-DISC/+M: 4X - SATA Interface
-
0.5MB Buffer Memory
|
 |
|

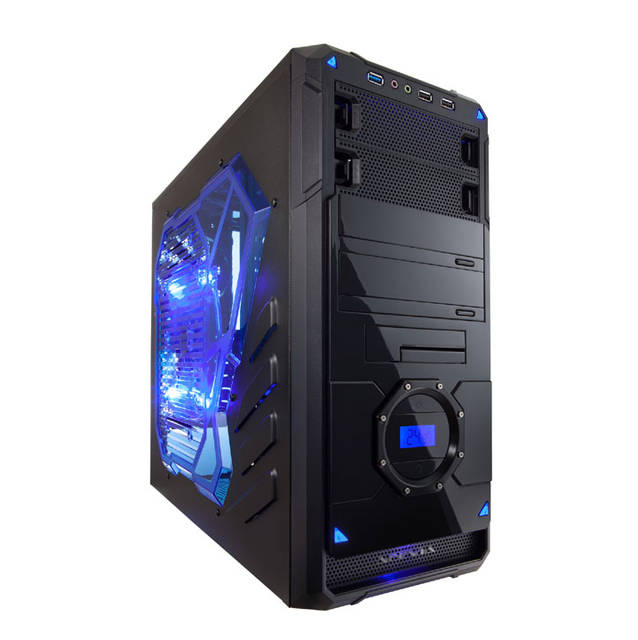

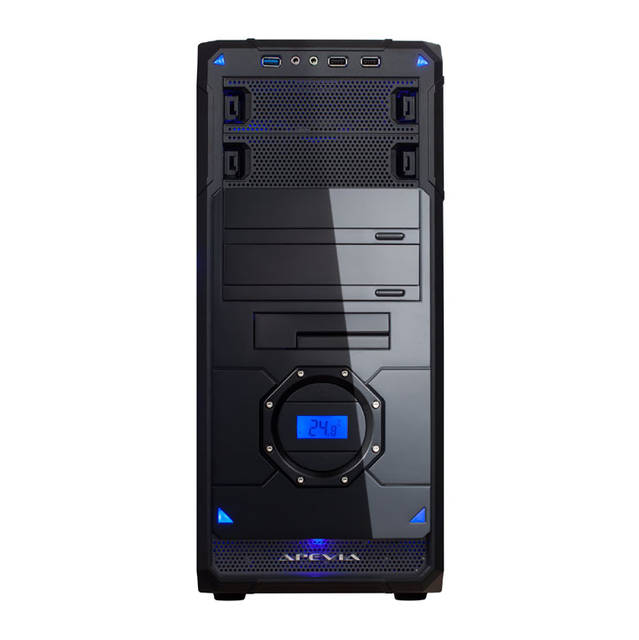

Apevia X-DREAMER4 Black ATX Mid Tower
|
- Modern metal mid tower with side window
- USB2.0, USB3.0 and Audio ports located at top of front panel.
LCD temperature display, power and reset buttons, hdd and power leds
- A view of the side panel with 200mm fan
- Rear panel has a 120mm fan
- A look from right right angle
- Top panel has room for up to two 120mm case fans
- Inside look of case structure
- Drive Bays: 10
- External: 4x 5.25", 1x3.5"/2.5" (hot-swap)
- Internal: 4x 3.5", 1x 2.5"
- Expansion Slots: 7
- Cooling System:
-
Front: 1x 120mm Fan
- Rear: 1x 120mm Fan
- Top: 2x 120mm Fans
- Side: 1x 200mm UV Blue LED Fan, or 2x 120mm Fan Vents (Fans not
included)
- Bottom: 1x 120mm Fan Vent (Fan not included)
- Water Cooling Support: 2x Water Cooling Holes on Back Plate
- Front I/O Panel: 1x USB 3.0 Port, 2x USB 2.0 Ports, 2x HD Audio
Dimensions (WxDxH): 7.75 x 19.50 x 17.50 inch
|
|
|

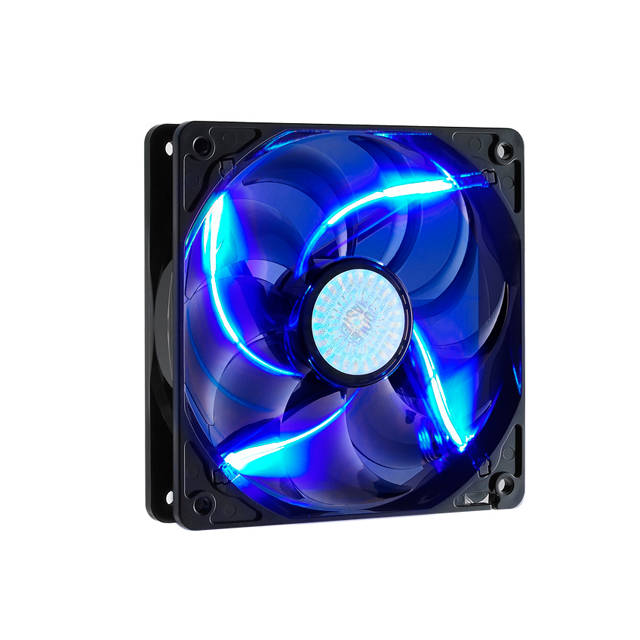

Cooler Master 120mm Blue LED Case Fan |
- Up to 69CFM (maximum RPM)
- 19 dB-A silent application for CPU cooling
- Voltage: 12VDC
- Current (Ampere): 0.35A
- Input: 4.2W ± 10%
- Speed: 2000 RPM
- Air Flow: 69 CFM
- Air pressure: 3.04 mmH2O
- Fan Noise Level: 19 dBA
- Bearing Type: Long Life Sleeve
- Dimensions: 120 x 120 x 25 mm
|  |
|
EVGA SuperNOVA 750 B1 80 PLUS Bronze 750W Power Supply
|
- ATX12V / EPS12V Power Supply
- Maximum Power: 750 Watts
- 135mm Double
Ball-Bearing Fan
- 100-240V Input Voltage
- 50/60Hz Input Frequency Range
- 10A -
5A Input Current
- Connectors:
- 1x 24pin ATX Main Connector
- 2x 8(4+4)pin EPS Power Connectors
- 3x 8(6+2)pin PCI-Express Connectors
- 9x SATA Connectors
- 5x Molex Connectors
- 1x Floppy Connector |
|
| Windows 10 Professional 64-Bit Operating System |
- Take your gaming further. Great Xbox titles, the best of Xbox Live, and your Xbox community, achievements, and game collection via the Xbox app. You can even use your Xbox Controller
and stream Xbox One games on your home Windows 10 PC, laptop, or tablet. - Do things across your devices. Take your movies, music, and photos with you across all
your devices with OneDrive. Plus, with OneDrive, you get 15GB of free storage space included. - Do things magically. Cortana is your truly personal digital assistant who learns more about
you over time. Cortana works across all your devices, from phone to tablet to PC, to help you do more and forget less.
|
 |
|
