Creative Labs SB Live! SB0200 Sound Card

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

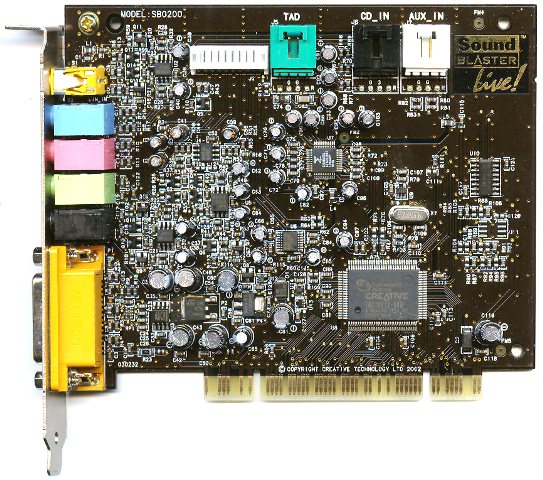

Creative Labs Sb Live! Sb0200 Sound Card. Model: Sb0200 Ml-00R533
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code SCCRELSBLSB0200
Brand Creative Labs
Model SB0200 ML-00R533
Category Sound Cards

Description

Creative Labs Sound Blaster Live! 5.1 PCI Sound Card. Model number: SB0200.
Sound Blaster Live! is the top audio solution for seamless integration into the computer for novices and advanced users in gaming, professional music recording and playback, Internet audio and DVD/Video playback. At the heart of Sound Blaster Live! is the EMU10K1X audio processor chip. Sound Blaster Live! supports surround-sound audio on the computer with built-in support for two, four or six (5.1) speakers. With up to 6 channels of SPDIF output, users would now be able to experience 3D audio with multiple speaker systems. With Sound Blaster Live!, you can apply EAX™ effects to existing games and applications for incredibly true sound.
Sound Blaster Live! is now capable of producing more than 1000 voices. This remarkable capability goes beyond the quality and performance available in most professional music equipment. With additional voices, Sound Blaster Live! delivers richer MIDI playback, simultaneous playback of more instrument notes and multi-layering of instruments to create better quality sound.
With EAX Audio Technologies, Creative has made it easier for any developer who wants to incorporate high-quality 3D audio environments into their titles.


Features:

  • EMU10K1X audio controller
  • EAX Audio Technologies
  • Creative Multi Speaker SurroundTM (CMSSTM) for upmixing ordinary stereo sources to 5.1 channels
  • Supports analog 5.1 speakers through LINE_OUT, REAR_OUT, and D/A_OUT (Center/Subwoofer).
  • Realistic and immersive 3D positional audio experience and support DirectSound3D.
  • Support 6-channel digital-output using SPDIF up to 24bit, 48KHz.
  • SPDIF OUT supports compressed AC3-passthrough.
  • PCI Specification Version 2.1 compliant
  • Front panel circuitry to detect headphones or microphones
  • TAD cable detection
  • EAX 2.0
  • Pre-installed presets
  • Host-based MIDI Synthesizer
  • General MIDI support
  • Supports maximum 1024 voice polyphony
  • 3D audio support
  • Positional audio effect from games supporting 3D audio (2/4/6 speaker, headphone)
  • Multi-channel PCM support (2, 4, 6/5.1 speakers)
  • Stereo virtualization over headphone
  • Supports WavePCI





    Specifications:

    Interface: PCI
    Chipset: EMU10K1X audio controller
    Audio Inputs:
    One line-level analog Line input via stereo jack on rear bracket
    One mono Microphone analog input via stereo jack on rear bracket
    CD_IN line-level analog input via 4-pin Molex connector on card
    AUX_IN line-level analog input via 4-pin Molex connector on card
    TAD line-level analog input via 4-pin Molex connector on card
    Audio Outputs:
    ANALOG (center and subwoofer)/DIGITAL OUT (front and rear SPDIF digital outputs) via 4-pole 3.5 mm minijack on rear bracket
    Three line-level analog outputs via stereo connectors on rear bracket (Front, Rear and Center/Subwoofer Line-Outs)
    Stereo headphone (32-ohm load) support on Front Line-Out
    Included: Sound Card Only (no drivers or software are included)

    Product Requirements:
    Available PCI slot
    Windows 95/98/ME/2000/XP
    Speakers
