DELL 2Y832 DIMENSION 4600 MOTHERBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

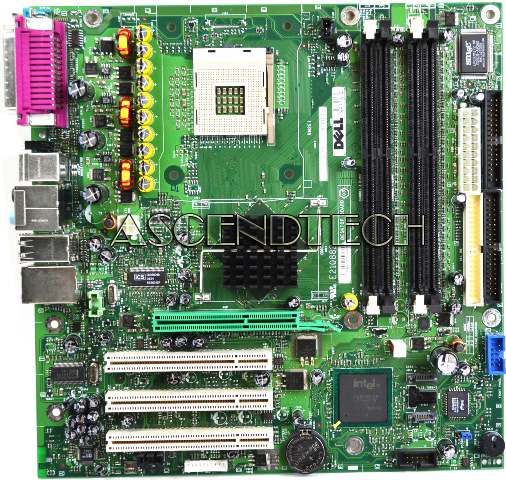

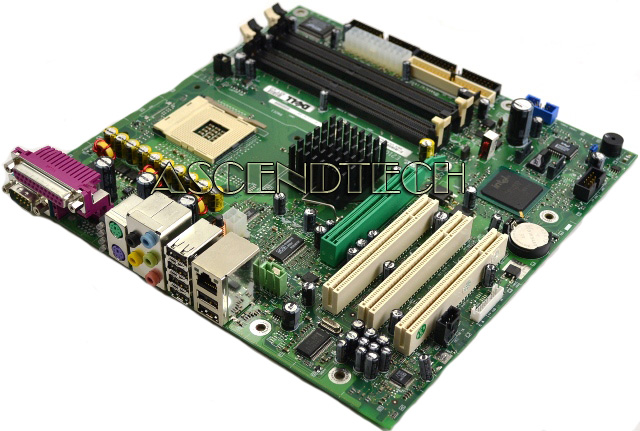

Dell 2Y832 Dimension 4600 Motherboard. Model: 2Y832 02Y832 Cn-02Y832
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELDM462Y832
Brand Dell Computers
Model 2Y832 02Y832 CN-02Y832
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Dell 2Y832 02Y832 Dimension 4600 Motherboard mPGA478. The Intel® Desktop Board harnesses the advanced computing power of the latest Intel Pentium 4 processor supporting Hyper-Threading Technology. Designed for the Intel® 865 chipset, the Desktop Board brings exciting new levels of performance and features to the desktop by combining support for an 800MHz system bus with dual channel DDR400 and native Serial ATA 150 featuring Intel Technology. Because the Desktop Board includes the latest technologies and high-quality integrated components, system builders can realize significant cost savings without sacrificing performance. The features of this board support an optimal user experience in a broad range of usage models for today’s computer enthusiasts.

Part Numbers: 2Y832 02Y832

Specifications:

Form FactormicroATX (9.60 inches by 8.20 inches [233.68 millimeters by 208.28 millimeters])
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 533/800 MHz system bus
  • Hyper-Threading Technology Support
Memory
  • Four 184-pin DDR SDRAM DIMM sockets - Dual Channel
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
ChipsetIntel® 865PE Chipset
I/O ControlLPC Bus I/O controller
Audio5.1 Surround Sound Audio subsystem for AC '97 processing using the Realtek ALC202A codec
Video0.8/1.5 V AGP 3.0 connector supporting 1x, 4x, and 8x AGP cards or an AGP Digital Display (ADD) card

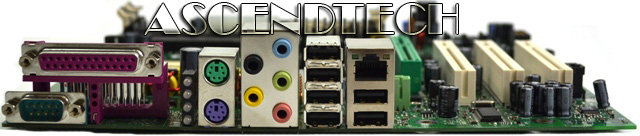

Peripheral Interfaces
  • 6x USB 2.0 ports
  • 1x serial port
  • 1x parallel port
  • 1x 10/100 network port
  • 2x Serial ATA IDE interfaces
  • 2x Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • 1x diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion CapabilitiesThree PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
