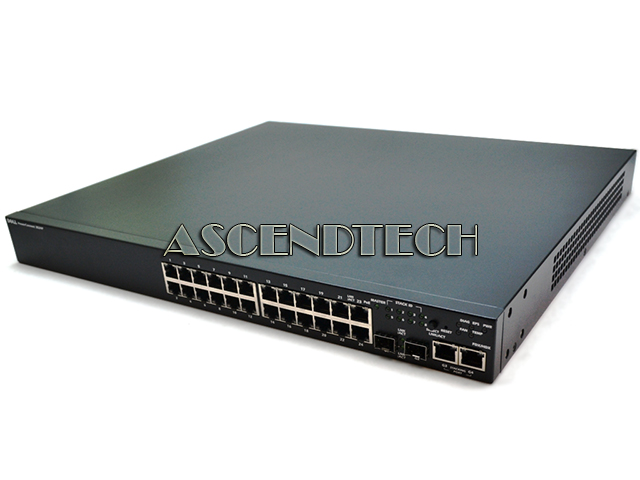

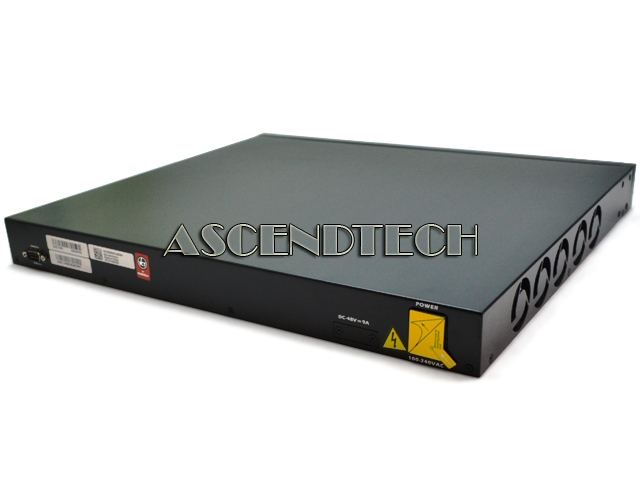

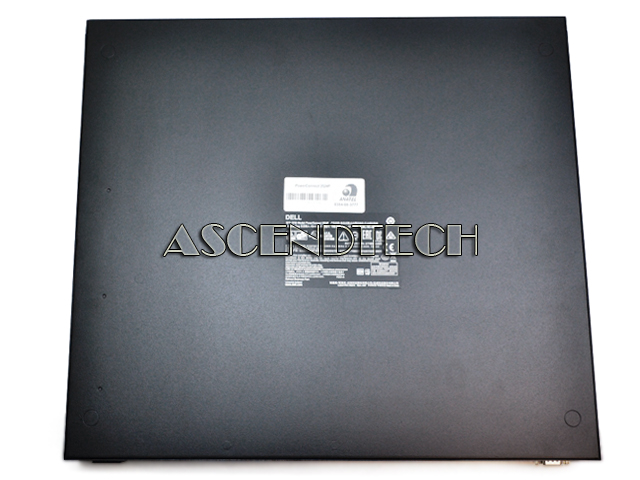

Dell 3524P K690K 24-Port Network Switch

Dell PowerConnect 3524P K690K 24 x 10/100BASE-T RJ-45 PoE Ports 2 x SFP Ports 2 x 10/100/1000BASE-T RJ-45 Copper Ports RS-232 1U Stackable Managed Network Switch. The PowerConnect 3500 series is a family of 24-and 48-port Fast Ethernet Layer 2 switches. These Layer 2 switches deliver resilient stacking, advanced security, enterprise-class management features and Power-over Ethernet, as well as deliver impressive switching capacities of up to 12.8Gbps. The 3500 series can be deployed in a wide number of different network deployment scenarios, including Fast Ethernet edge client connectivity and wiring closet deployments. Each rack-mountable switch is 1U high and delivers a high-performance rack-dense switching solution.

Dell Model Number: 3524P
Dell Part Number: K690K 0K690K CN-0K690K

Please Note: Unit comes with power cord only, no cables, mounting kit, or accessories included!

Specifications:

Power over Ethernet Ports: 24 PoE+
Switch Fabric Capacity: Up to 128Gbps
Forwarding Rate: 128Mpps
MAC Addresses: 8K
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption Algorithm: MD5, AES, SSL, TLS
Routing Protocol: RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
Max PoE Watts per Port: 30.8W on 24 ports
Power Provided: 600W
Operational Power Consumption: 871W
Dimensions: 1.7" x 17.3" x 15.2" (4.35cm x 44cm x 38.7cm)
Weight: 17.6lbs (7.98kg)
Rack Mount: 1U, kit not included

Port Configuration:
24 10/100BASE-T ports
2 RJ-45 10/100/1000BASE-T ports (supports resilient stacking)
2 SFP slots for fiber media support
Auto-negotiation for speed, duplex mode and flow control
MDI/MDIX Port mirroring
Broadcast storm control
PoE feature
Virtual Cable Tester

Performance:
Switching capacity 12.8Gbps
Forwarding rate 9.5Mpps
Up to 8,000 MAC addresses

Management:
Web-based management interface
Industry-standard CLI accessible via Telnet or Local Serial Port
SNMPv1, SNMPv2c and SNMPv3 supported, four RMON groups supported (history, statistics, alarms, and events)
TFTP transfers of firmware and configuration files
Dual firmware images on-board
Multiple configuration file upload/download supported
Statistics for error monitoring and performance optimization including port summary tables
BootP/DHCP IP address management supported
Syslog remote logging capabilities
Temperature sensors for environmental monitoring
LLDP and LLDP-MED
Switch stacking up to 8 units per stacking group

Quality of Service:
Layer 2 trusted mode (IEEE 802.1p tagging)
Layer 3 trusted mode (DSCP), four priority queues per port
Adjustable Weighted-RoundRobin (WRR) and strict queue scheduling

Security:
IEEE 802.1x based edge authentication
Switch access password protection
User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
Port-based MAC address alert and lock-down
IP address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
RADIUS and TACACS+ remote authentication for switch management access
SSLv3 and SSHv2 encryption for switch management traffic
Management access filtering via management access profiles
DHCP Snooping

VLAN:
VLAN support for tagging and port-based as per IEEE 802.1Q
Up to 256 VLANs supported
Dynamic VLAN with GVRP support
Private VLAN Edge, Protocol VLANs, and Voice VLAN

Switching Features:
Link aggregation with up to eight aggregated links and up to eight member ports per aggregated link (IEEE 802.3ad)
LACP support (IEEE 802.3ad)

Availability:
Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
Multiple Spanning Trees (IEEE 802.1s)

Layer 2 Multicast:
Static IP multicast
IGMP snooping for IP multicast support

Environmental Operating Conditions:
Operating Temperature in Celsius: 0° to 45° C
Operating Temperature in Fahrenheit: 32° to 113° F
Storage Temperature in Celsius: -40° to 65° C
Storage Temperature in Fahrenheit: -40° to 149° F
Operating Relative Humidity: 95%
Storage Relative Humidity: 85%
Power Supply Efficiency: 80% or better in all operating modes
