DELL AD-7580A SLIM DL DVD±RW W/OUT BEZEL

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Dell Ad-7580A Slim Dl Dvd±Rw W/Out Bezel. Model: Ad-7580A-Df Sok-Ad-7580A

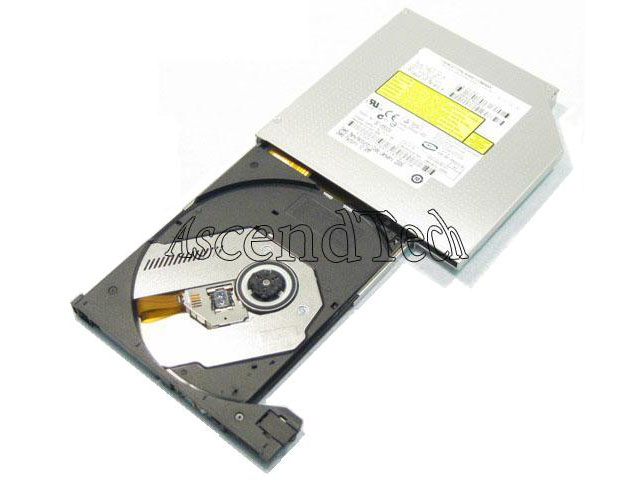

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LTPDVDRWAD758AW
Brand Dell Computers
Model AD-7580A-DF SOK-AD-7580A
Category Laptop Optical Drives
Condition Like New Grade A
Condition Description Please note, this Optical Drive does not include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.

Description

Dell AD-7580A Slim 8X DVD±R/RW DL Dual Layer Optical Drive for Dell Dimension, XPS and Optiplex Computers Systems. AD-7580A is a slim 8x DVD±R/RW IDE drive, with standard half inch design and horizontal and vertical mounting for most system configurations.


Brand: Dell
Manufacturer: Sony Optiarc
Model: AD-7580A AD-7580A-DF SOK-AD-7580A
Type: Internal
Interface: IDE/ATAPI
Dell Part Numbers: YC101 0YC101 CD160 0CD160
Compatible Systems:
Dimension 200
Dimension 5100C
Dimension 5150C
Dimension 5150C
XPS 200
OptiPlex GX520 Small Form Factor
OptiPlex GX620 Small Form Factor

* This Optical Drive Does Not Include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.

Features:

  • Tray type.
  • IDE / E-IDE Interface
  • Supports reading and writing to CD-R/RW, DVD-R/RW and DVD+R/RW.
  • Supports reading to CD-ROM and DVD-ROM.


    Specifications:

    System InterfaceData transfer speed Max. 33.3 MB/s (UDMA Mode 2)
    Performance
      CD
     Read Max. 24X
     Digital Audio Extraction (DAE) Max. 12X
     Write CD-R Max. 24X
     Write CD-RW Max. 24X
      DVD
     Read (Single Layer / Dual or Double Layer) Max. 8X/6X
     Write DVD+/-R Max. 8X
     Write DVD+R/-R Double Layer Max. 4X/4X
     Write DVD+RW Max. 8X
     Write DVD-RW Max. 6X
     Write DVD-RAM Max. 5X
      BD
     Read BD-ROM N/A
     Write BD-R N/A
     Write BD-RE N/A
    Power ConsumptionTypical DC +5V/0.9A
    Acoustic noiseOperating (Sound pressure level, typical) Less than 45 dB
    Power supplyVoltage DC +5 V±5%
    TemperatureOperating°C (F) 5°C ~ 50°C (41°F ~ 122°F)
     Non-operating C (F) -40°C ~ 65°C (-40°F ~ 149°F)
    Relative HumidityOperating (No condensation) 10% ~ 90%
     Non-operating (No condensation, Power Off, without disc) 5% ~ 95%
    AltitudeOperating m (ft) -200m ~ 3,048m
     MTBF: 150,000 POH (The mechanical duty cycle is 15%)
    Dimensions and weight
     Width mm (in) 128mm/5.04in
     Depth mm (in) 129mm/5.08in
     Height mm (in) 12.7mm/0.5in
     Weight (g) 160g
