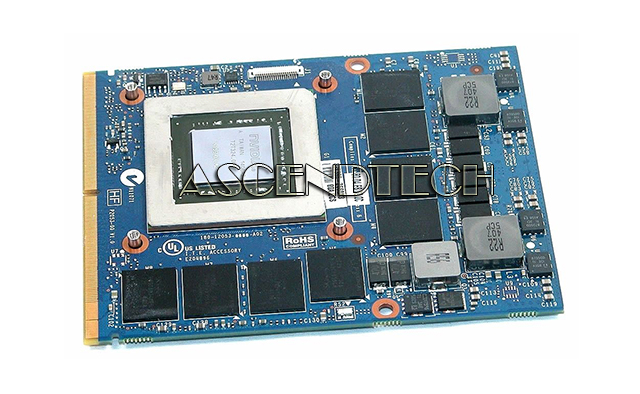

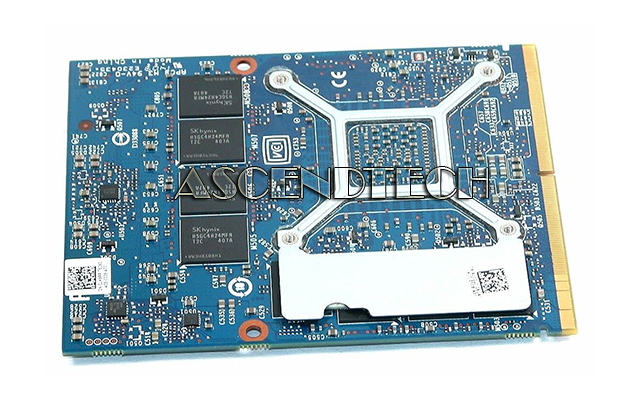

Dell AlienWare 17 18 GeForce GTX880M 8GB

Genuine Original Dell AlienWare 17 18 Series nVidia GeForce GTX 880M 8GB GDDR5 256-Bit MXM VGA Video Graphics Laptop Card JH9PP 0JH9PP CN-0JH9PP. Built on the 28 nm process, and based on the GK104 graphics processor, in its N15E-GX-A2 variant, the card supports DirectX 12.0. The GK104 graphics processor is an average sized chip with a die area of 294 mm² and 3,540 million transistors. It features 1536 shading units, 128 texture mapping units and 32 ROPs. NVidia has placed 8,192 MB GDDR5 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 954 MHz, which can be boosted up to 993 MHz, memory is running at 1250 MHz.

Model Number: GeForce GTX 880M
Dell Part Number: JH9PP 0JH9PP CN-0JH9PP
Compatible Part Numbers: P2053-00 V1.0
Compatible Models: Dell AlienWare 17 R1 M17X R5 AlienWare 18 R1 M18X R3 Series







Specifications:

Graphics Processor
GPU Name: GK104
GPU Variant: N15E-GX-A2
Architecture: Kepler
Process Size: 28 nm
Transistors: 3,540 million
Die Size: 294 mm²

Memory
Memory Size: 8192 MB
Memory Type: GDDR5
Memory Bus: 256 bit
Bandwidth: 160.0 GB/s

Clock Speeds
GPU Clock: 954 MHz
Boost Clock: 993 MHz
Memory Clock: 1250 MHz
5000 MHz effective

Render Config
Shading Units: 1536
TMUs: 128
ROPs: 32
SMX Count: 8
Pixel Rate: 31.78 GPixel/s
Texture Rate: 127.1 GTexel/s
Floating-point performance: 3,050 GFLOPS

Board Design
Slot Width: MXM Module
TDP: 122 W
Power Connectors: None
Board Number: P2053 SKU 2

Graphics Features
DirectX: 12.0
OpenGL: 4.5
OpenCL: 1.2
CUDA: 3.0
Shader Model: 5.0
