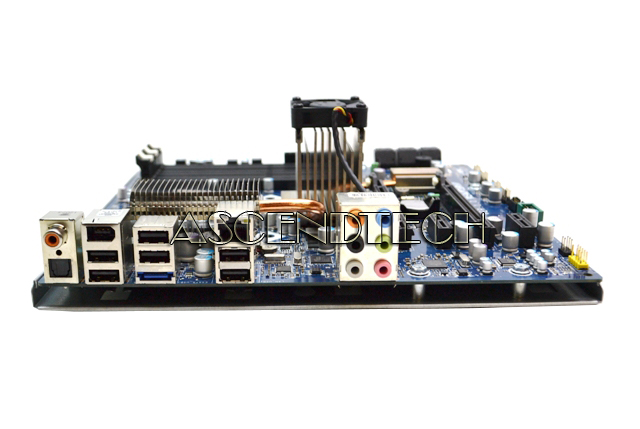

Dell Alienware Aurora ALX Mboard 4VWF2

Dell Alienware Aurora ALX Intel X58 Socket LGA1366 Desktop System Motherboard 4VWF2 04VWF2 CN-04VWF2 MS-7591.

Dell Part Number: 4VWF2 04VWF2 CN-04VWF2
Compatible Part Numbers: MS-7591
Compatible Models: Dell Alienware Aurora ALX







Specifications:

Chipset: Intel X58
Supported Processors:
Intel Core i7 920 2.66GHz (8MB Cache) Quad Core Processor
Intel Core i7 930 Quad Core Processor (2.8GHz, 8MB Cache)
Intel Core i7 960 Quad Core Processor (3.2GHz, 8MB Cache)
Intel Core i7 980x Extreme Six Core Processor (3.33GHz, 12MB Cache)
Intel Core i7-970 Six Core Processor, 3.23GHz, 12MB Cache
Supported Memory:
Up to 24GB Tri-Channel DDR3 SDRAM at 1333Mhz - 6 DIMMS
Up to 12GB Tri-Channel DDR3 SDRAM at 1600Mhz - 6 DIMMS
Up to 6GB Tri-Channel DDR3 SDRAM at 1866Mhz - 3 DIMMS
6 x 240-Pin DDR3 SDRAM Slots
Audio: Integrated
Video: Not Integrated
Peripheral Interface:
1 x  eSATA
1 x RJ-45 Gigabit Ethernet
6 x High-Speed USB 2.0
1 x Firewire IEEE 1394
1 x Microphone In
1 x Line-In
1 x Front Left/Right Speakers
1 x Center Speaker
1 x Rear Left/Right Speakers
1 x Side Left/Right Speakers
1 x SPDIF Digital Output (TOSLINK)
1 x SPDIF Digital Output (Coax)
Expansion:
2 x PCI-Express 2.0, PCI-e x16
2 x PCI-e x1
