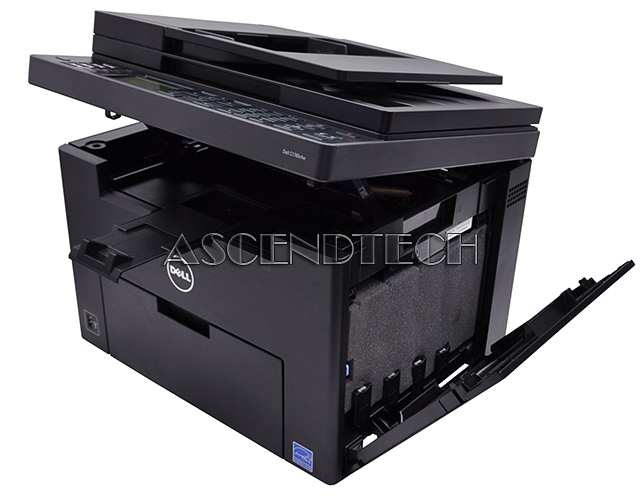

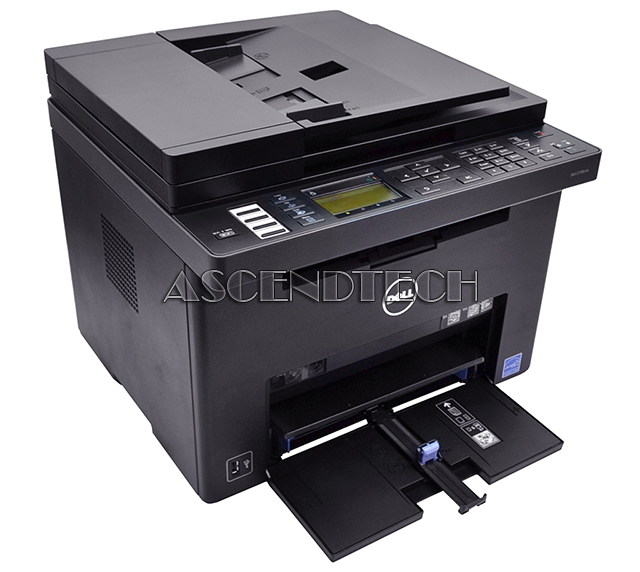

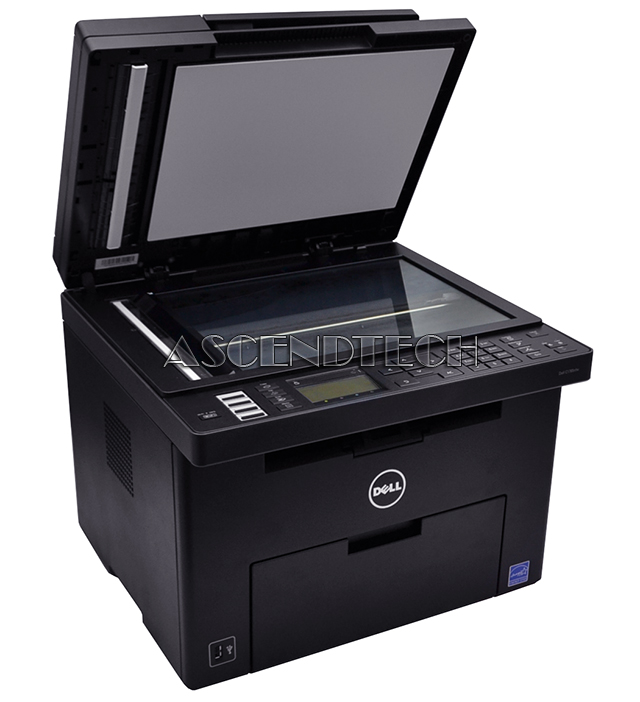

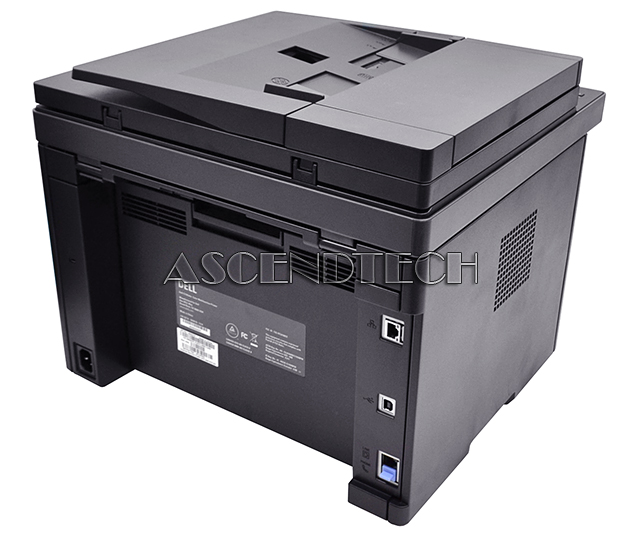

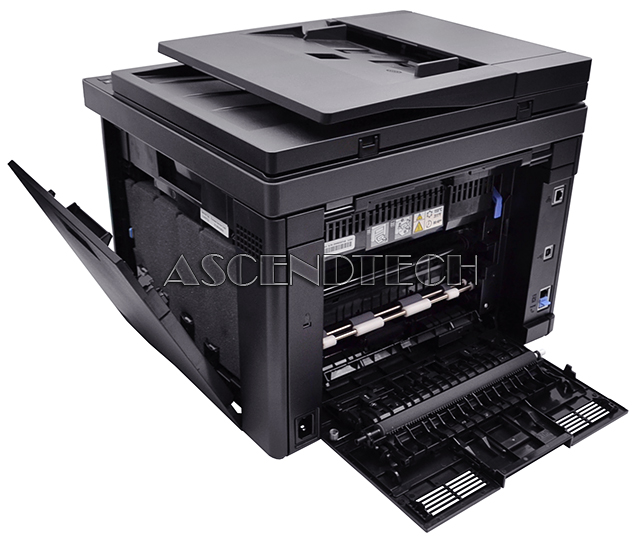

Dell C1765nfw Fax Printer Scanner 8GDTP

Dell C1765nfw Multifunction 12ppm 150-Sheet Fax Color Laser Printer Scanner 8GDTP 08GDTP CN-08GDTP. Print wirelessly, scan, copy and fax with one affordable easy-to-use device. The C1765nfw multifunction color printer adds versatility and value to your office. Printer with AC Power Cable only.

Model Number: C1765nfw
Dell Part Number: 8GDTP 08GDTP CN-08GDTP







Features:

Easy-to-use and affordable, with multifunction versatility
Print wirelessly, scan, copy and fax with one affordable easy-to-use device. The C1765nfw multifunction color printer adds versatility and value to your office
- Multitask with ease: Print wirelessly scan, copy and fax with one cost-effective, efficient and space-saving device.
- Print from mobile devices: Print directly from Android mobile devices with Dell Mobile Print app or from iOS mobile devices with Mobile Print App for Dell.
- Share over a network: Experience versatile and easy network connectivity with embedded Ethernet and WiFi2, plus share digitized content easily with included Nuance PaperPort Pro 14 software.

Speed through tasks
Print up to 15 ppm in black (A4/Letter) and up to 12 ppm in color (A4/Letter). Fax, scan or copy up to 15 sheets hands-free with an automatic document feeder.

Manage documents
With Nuance PaperPort 14 software preloaded on your C1765nfw printer, you can quickly scan, organize, view, edit and share documents and photos from your PC.

Simple to use and maintain
- Join the network: The C1765nfw features versatile and easy network connectivity with embedded Ethernet and WiFi.
- Operate with ease: Initiate tasks quickly using a four-row LCD display with 34 buttons and five LED indicators.
- Save resources: Optimize energy efficiency with the ENERGY STAR-qualified C1765nfw featuring innovative LED printing technology.
- Keep maintenance costs low: Save on upkeep with a single drum/fuser unit designed to last the life of the printer. All you have to replace are the toner cartridges.











Specifications:

Printer Specifications
Print speed Up to 15 ppm black and 12 ppm color (A4/Letter) (actual print speed will vary with use)
First page out time from Ready state As fast as 16 sec (black), 22 sec (color)
Print resolution 600 x 600 dpi (up to 1200 dpi Image Quality)
User interface
- 34 Buttons, 5 LEDs, 4 Lines, 20 Character Graphic Bitmap LCD
- Additional WiFi Blue LED with WPS button
Printer language GDI (Graphics Device Interface)
Fonts Host-based
Processor speed/memory (RAM) 295 MHz / 128 MB3
Maximum duty cycle Up to 30,000 pages per month
Recommended monthly print volume 350 - 1,000 pages per month

Mobile printing Dell Mobile Print (Android OS mobile devices); Mobile Print App for Dell (iOS mobile devices)

Printer management
- Dell OpenManager Printer Manager v2; Dell Printer Configuration Web Tool; Dell ColorTrack 1.0 and Dell Toner Management System
- Standard Printer MIB, Dell Private MIB, Nuance Paperport v14

Scan specifications
Scan resolution Optical: 1200 x 1200 dpi, up to 4800 x 4800 dpi (Software Enhanced)
Scan utilities/applications Nuance PaperPort v14
Scanning features SMB, FTP, Email, USB Host, Application
Scan to media (file format) PDF, TIFF, JPEG
Scan size (max) Flatbed: 8.5” x 11.7” (215.9 mm x 297 mm); ADF: 8.5” x 14” (215.9 mm x 355.6 mm)

Copy specifications
Copy speed (600 x 600 dpi)
- Single-page document 15 copies per minute (cpm) (black), 12 cpm (color)
- Multi-page document (ADF) 10.6 cpm (black), 2.5 cpm (color)
Copy mode Text, text/photo, and photo 600 x 600 dpi
Maximum copies 99
Reduce/enlarge 25 to 400% (increment: 1%)
Copy settings Auto Exposure, Collate, N-up (2-in-1 only), Sharpness, Density, ID, Copy, Frame Erase

Fax specifications
Modem speed/Fax transmission speed Up to 33.6 Kbps
Speed dial Up to 99 locations
Memory size 2 MB
Fax settings Broadcast, Delay/Schedule, Forward, Secure, Remote, Polling, Junk fax prevention, Fax/Phone/TAM Interface, PC Fax (PC Send to device to fax out), Distinctive Ring Pattern Detection (7 patterns)

ADF
ADF type Auto Document Feeder
Input/output capacity Up to 15 sheet, cut paper, plain paper
Media size Minimum: 5.5” x 5.5” (139.7 mm x 139.7 mm); Maximum: 8.5” x 14” (215.9 mm x 355.6 mm)

Connectivity
Interfaces
- USB 2.0 High Speed Supported, 10/100 BASE-T Ethernet,
- Front USB host port, WiFi (b/g), WPA 2.0 (Personal), WPS
Wireless WiFi (b/g), WPA 2.0 (Personal), WPS

Operating systems
Windows Microsoft Windows 8 32 bit / 64 bit, Microsoft Windows 7 32 bit / 64 bit, Windows Vista 32 bit / 64 bit (Home Basic,Home Premium, Ultimate, Business), Windows Server 2008 32 bit / 64 bit, Windows Server 2008 R2, Windows XP 32 bit / 64 bit (Home & Pro), Windows 2003 Server 32 bit / 64 bit, Windows Server 2012 64 bit
Macintosh Macintosh OS: 10.4.11 or later (Power PC 32 bit / Intel 32 bit), 10.5 with latest update (Power PC 32 bit / 64 bit / Intel 32 bit / 64 bit), 10.6 with latest update (Intel 32 bit / 64 bit), 10.7 with latest update

Paper handling
Standard input sources 150 sheet drawer + 10 sheet bypass tray
Maximum input capacity 160 sheet
Duplexer Manual
Standard output destination 100 sheet bin
Maximum output capacity 100 sheet

Supported media types, sizes and paper weights
Standard tray
- Media types supported Plain Paper (Normal, Thick); Cover (106 - 163 g/m2); Coated Paper (106 - 163 g/m2); Label; Envelope; Recycled Paper; Hagaki (190 gsm)
- Media sizes A4 SEF, B5 SEF, A5 SEF, Letter SEF, Executive SEF, Folio (8.5” x 13”) SEF, Legal SEF, Com-10 SEF, Monarch/DL, C5 SEF. Custom Paper Size: Width: 76.2 mm to 215.9 mm, Length: 127 mm to 355.6 mm (only SEF, LEF not supported)
Bypass tray
- Media types supported Plain Paper (Normal, Thick); Cover (106 - 163 g/m2); Coated Paper (106 - 163 g/m2); Label; Envelope; Recycled Paper; Hagaki (190 gsm)
- Media sizes A4 SEF, B5 SEF, A5 SEF, Letter SEF, Executive SEF, Folio (8.5” x 13”) SEF, Legal SEF, Com-10 SEF, Monarch/DL, C5 SEF. Custom Paper Size: Width: 76.2 mm to 215.9 mm, Length: 127 mm to 355.6 mm (only SEF, LEF not supported)
Page layout options
- Portrait or Landscape Orientation, Multiple Copies, Multi-page Printing (N-up)
- Manual Duplex Printing (only for Windows Driver), Poster (only for Windows Driver)
- Watermarks (only for Windows Driver), Collate, Rotation
