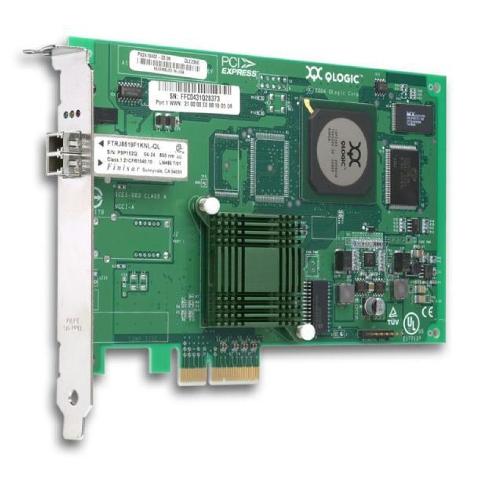

Dell D6085 QLogic 2Gb Fibre Channel Card

Dell QLogic QLE2360, 64Bit 133Mhz PCI-X to 2Gb Fibre Channel Host Bus Adapter Card, Dell part number D6085.
The QLE2360 is a high-performance, 2-Gbps to PCI-Express HBA. Unlike other HBAs, the QLE2360 delivers unprecedented levels of performance and availability. All HBAs in the SANblade QLE2360 family are managed by the QLogic SANsurfer FC HBA Manager, which provides centralized management and remote control of distributed HBAs.
PCI Express is a serial host bus that provides higher throughputs, lower pin counts, and ease of scalability. This technology is being adopted by major server OEMs. PCI Express x4, supported by the QLE2360, provides 2-GBps FC data rate, addressing increasing higher throughput requirements.
The QLE2360 has an enhanced RISC processor on the FC controller chip, providing up to 160,000 I/Os per second by having completely independent, internal resources for each port.

Host Bus Interface Specifications:
Bus interface: 2.5 GHz PCI Express x4
Memory: 1-MB SRAM per port, 1-MB flash, and 4-Kb NVRAM
HW platforms: IA32 (x86), IEM64T
Compliance: PCI Express Base Specification rev. 1.0a, PCI Express Card Electromechanical Specification rev. 1.0, PCI Local Bus Specification rev. 2.3, PCI Bus Power Management Interface.

Fibre Channel Specifications:
Data rate: 2/1 Gbps auto-negotiation (2.1240/1.0625 Gbps)
Performance: 83,000 IOPS per port
Throughput: 380 MBps at full-duplex per port
Topology: FCAL, FCAL-2, point to point, switched fabric (FL_Port and F_Port)
Class of service: Class 3 FC service
Protocols: SCSI-FCP, FC-TAPE
Buffer credits: 3 credits available per port (2,112 Byte frame payload)
Compliance: Second Generation FC Generic Services Definition (FC-GS-2), Third Generation FC Generic Services Definition (FC-GS-3), Fibre Channel-Physical and Signaling Interface (FC-PH), SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel-Arbitrated Loop-2 (FC-AL-2), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Framing and Signaling (FC-FS), SCSI-3 Architecture Model (SAM), and SCSI-3 Controller Command Set

Physical Specifications:
Ports: One
Media: Multimode optic
Optics: Short wave laser
Connectors: LC-style connectors that support non-OFC, multimode fibre optic cabling using a small form factor optical transceiver modules (one in the QLE2360, two in the QLE2362)
Form factor: Half size: 16.76 cm×11.12 cm (6.6"×4.376")
Bracket size: Standard size

Environment and Equipment Specifications:
Temperature: Operating: 0°C/32°F to 55°C/131°F. Storage: -20°C/-4°F to 70°C/158°F
Airflow: None required
Humidity: Relative (non-condensing): 10% to 90%, Storage: 5% to 95%
Power dissipation: ~9.5W (1.7W @ 3.3V; 7.8W @ 12V)
Cable: 50/125μm multimode fiber, 62.5/125 μm multimode fiber
Cable distances: 1 Gbps: 500 meters 50/125 μm fiber, 300 meters 62.5/125 μm fiber 2 Gbps: 300 meters 50/125 μm fiber, 150 meters 62.5/125 μm fiber

Tools and Utilities:
Management tools: FC HBA Manager
Device utilities: Command line interface; utilities for firmware, driver, boot code, and NVRAM
Boot support: BIOS
APIs: SNIA HBA API V2, SMI-S, FC-SP/DH-CHAP, and FDMI
Operating systems: Windows® Server™ 2003; Windows 2000; Linux Red Hat AS 3.0; Linux SuSE SLES 8, 9; Novell NetWare 6.5
