Dell Dimension 1100 B110 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

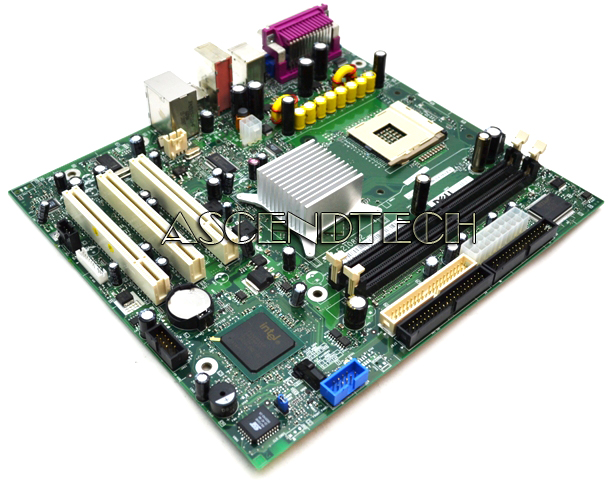

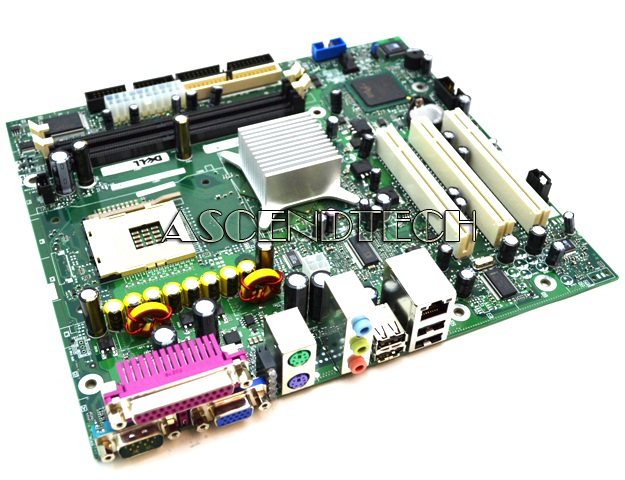

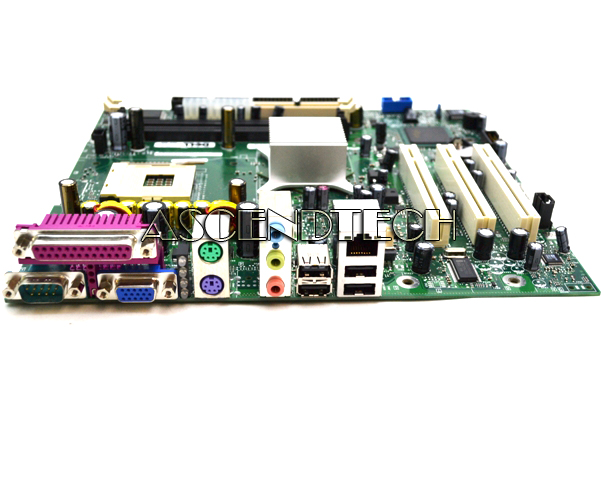

Dell Dimension 1100 B110 Motherboard. Model: Wf887 Cf458
  Enlarge
Dell Dimension 1100 B110 Motherboard. Model: Wf887 Cf458
Dell Dimension 1100 B110 Motherboard. Model: Wf887 Cf458
Dell Dimension 1100 B110 Motherboard. Model: Wf887 Cf458
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELWF887
Brand Dell Computers
Model WF887 CF458
Category Intel P4 / Celeron 478-Pin Motherboards
Condition Like New Grade A

Description

Dell Dimension 1100 B110 Motherboard Dell Part# WF887 0WF887 Intel D865GV Chipset System Board With Video / Audio / Lan! This model includes the latest technologies and high-quality integrated components, system builders can realize significant cost savings without sacrificing performance. The features of this new board support an optimal user experience in a broad range of usage models for today’s computer enthusiasts. These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty. Dell part number is WF887 0WF887 CF458 0CF458 - This board is compatible to the Dell Dimension 1100 B110 desktop system's as well as all standard cases with PIV ATX power supply's.

Manufacturer: Dell
Part Number: WF887 0WF887 CN-0WF887
Compatible Models: Dell Dimension 1100 B110


Specifications:

Form FactormicroATX (9.60 inches by 8.20 inches [233.68 millimeters by 208.28 millimeters])
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 400 / 533 / 800 MHz system bus
  • Support for an Intel® Celeron® D processor in a mPGA478 socket with a 400 / 533 MHz system bus
Memory
  • Two 184-pin DDR DIMM sockets
  • Support for single-sided or double-sided DIMMs (DDR 400/333/266)
ChipsetIntel® 865GV Chipset
I/O ControlSMSC LPC47M172 LPC bus I/O controller
SoundOn Board 3D Stereo Sound Card
VideoOn Board Integrated 64mb SVGA
Peripheral Interfaces
  • Four USB ports
  • One serial port
  • One parallel port
  • Board 10/100 network port
  • Two ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion Capabilities3 PCI Slots
