Dell Dimension 3000 Motherboard K8980

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELK8980
Brand Dell Computers
Model CH775 F8403 TC665 K8960
Category Intel P4 / Celeron 478-Pin Motherboards

Description

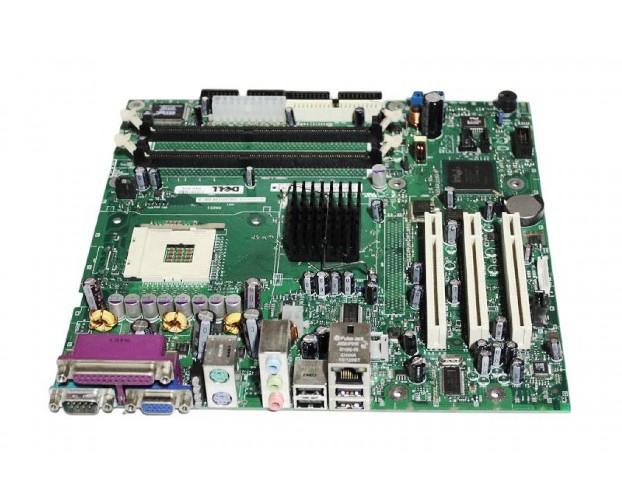

Intel D865GV Chipset System Board With Video, Audio and LAN for Dell Dimension 3000 Computer. Dell part numbers: T0CH775 CH775. The features of this board support an optimal user experience in a broad range of usage models for today’s computer enthusiasts.

Dell Part Number: CH775 0CH775 CN-0CH775
Compatible Part Numbers: N6381 TC665 TC666 TC667 R8060 K8960 K8980 0K8980 F8403 K8979 DH513
Compatible with: Dell Dimension 3000

Specifications:

Form FactormicroATX (9.60 inches by 8.20 inches [233.68 millimeters by 208.28 millimeters])
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 400 / 533 / 800 MHz system bus
  • Support for an Intel® Celeron® D processor in a mPGA478 socket with a 400 / 533 MHz system bus
Memory
  • Two 184-pin DDR DIMM sockets
  • Support for single-sided or double-sided DIMMs (DDR 400/333/266)
ChipsetIntel® 865GV Chipset
I/O ControlSMSC LPC47M172 LPC bus I/O controller
SoundOn Board 3D Stereo Sound Card
VideoOn Board Integrated 64mb SVGA
Peripheral Interfaces
  • Four USB ports
  • One serial port
  • One parallel port
  • Board 10/100 network port
  • Two ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion Capabilities3 PCI Slots
