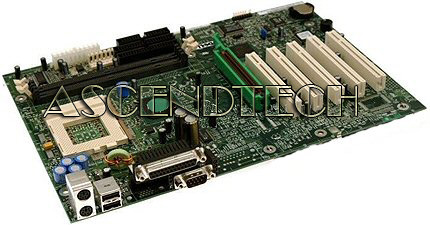

Dell Dimension 4100 Motherboard S.370
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Item Code MB3DEL97UJY
Brand Dell Computers
Model 97UJY 31REP 097UJY 031REP
Category Intel P3 370-Pin Motherboards
Description
Dell Dimension 4100 097UJY 031REP Intel i815 Pentium III Celeron PPGA Socket 370 Motherboard. These boards have been manufactured by Intel for Dell. All boards are fully guaranteed and come with warranty.
Dell Part Number: 97UJY 31REP 097UJY 031REP CN-097UJY CN-031REP
Compatible Models: Dell Dimension 4100
Expansion Slots:
- Integrated Accelerated Graphics Port (AGP) 2X or 4X video
- Five 32-bit bus master PCI v2.2 slots
- One communication network riser slot
- Supports 3.3 to 5-V bus interface
Chipset:
Intel 815 Chipset - Solano 82815 Consisting of
- Intel 82815 GMCH
- Intel 82815 ICH2
- Intel 82815 FWH
Front Side Bus Speed:
- Intel® Pentium® III processor in a 370-pin PPGA socket with 100/133-MHz host bus speed
- Intel Celeron™ processor in a 370-pin PPGA socket with 66/100-MHz host bus speed
Supported CPUs: PIII 500Mhz-1000MHz and Celeron 333MHz-1000MHz PPGA Cpu's.
Connectors: PS/2 Mouse, PS/2 Keyboard, Printer Port, 2 USB Ports, 1 COMM Ports
Supported Memory: PC100 or PC133 168PIN SDRAM Memory, 512MB Maximum
Compatible Operating Systems: Windows 98, ME, 2000, XP and NT
