Dell Dimension 4500S Motherboard 4T346

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Dell Dimension 4500S Motherboard 4T346. Model: 4T346 04T346 Ct-4T346
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DEL4T346
Brand Dell Computers
Model 4T346 04T346 CT-4T346
Category Intel P4 / Celeron 478-Pin Motherboards

Description

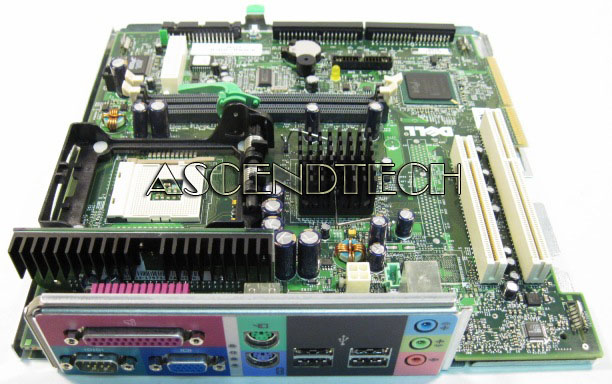

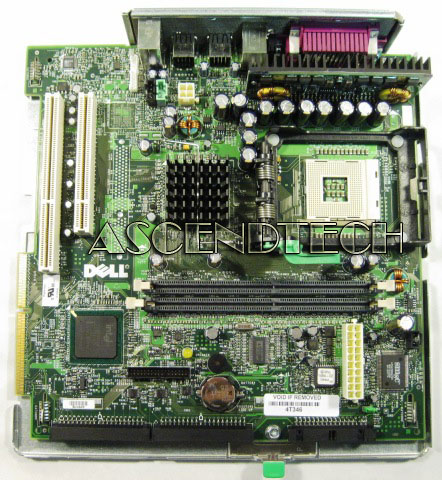

Dell Dimension 4500S - Intel Pentium 4 Motherboard Model: 4T346. This desktop board brings exciting new levels of performance and features to the desktop. These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty.

Specifications:

Manufacturer: Dell / Intel
Compatibility: Dell Dimension 4500S
Part Number: 04T346 4T346

Form FactormicroATX - 32.3 x 9.5 x 35.6 cm (12.7 x 3.8 x 14.0 inches)
With stand - 33.8 x 18.0 x 35.6 cm (13.3 x 7.1 x 14.0 inches)
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 400/533 MHz system bus
  • Support for an Intel® Celeron® processor in a mPGA478 socket with a 400 MHz system bus
  • 128K Cache or 512K Cache Processors Only
Memory
  • Two 184-pin DDR DIMM sockets
  • Support for single-sided or double-sided DIMMs (DDR 400/333/266)
  • Support for up to 2 GB system memory
  • Supports 128MB, 256MB, 512MB or 1GB Non-ECC DDR Memory
ChipsetIntel® 845G Chipset
AudioADI 1981A Audio controller - Line In, Line Out, and Microphone
VideoIntegrated AGP Graphics Video VGA Connector
Peripheral Interfaces
  • Four back-panel 2.0 USB ports and two front-panel also compatible with USB 1.1
  • One serial port
  • One parallel port
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy diskette drive interface
  • PS/2 keyboard and PS2 mouse ports
Expansion Capabilities
  • Two PCI Slots
