Dell Dimension 4550 Motherboard M0321

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

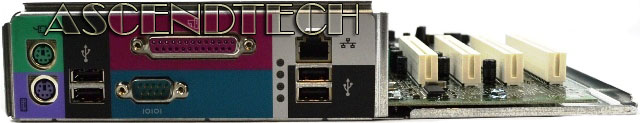

Dell Dimension 4550 Motherboard M0321. Model: M0321 6U214 0M0321 06U214
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELJ0592
Brand Dell Computers
Model M0321 6U214 0M0321 06U214
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Dell Dimension 4550 Series Desktop Motherboard M0321 6U214. The line of solid and stable Intel® Desktop Boards, this board delivers support for robust DDR 333 memory technology. Intel Precision Cooling Technology adjusts the fan speed real-time, enabling quieter system operation. Featuring the Intel 845 chipset with discrete AGP graphics makes this the right board for performance and mainstream users.

These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty. Dell part numbers: M0321 6U214 This board is compatible to the Dell Dimension 4550 system's as well as all standard PIV ATX power supply's.

Manufacturer: Dell
Part numbers: M0321 6U214 0M0321 06U214
Compatible with: Dell Dimension 4550 Series Desktop PCs

Form FactormicroATX (9.60 inches by 8.20 inches [233.68 millimeters by 208.28 millimeters])
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 400/533 MHz system bus
  • Support for an Intel® Celeron® processor in a mPGA478 socket with a 400 MHz system bus
Memory
  • Two 184-pin DDR DIMM sockets
  • Support for single-sided or double-sided DIMMs (DDR 400/333/266)
  • Support for up to 2 GB system memory
ChipsetIntel® 845PE Chipset
I/O ControlSMSC LPC47M172 LPC bus I/O controller
Video4x AGP Slot
Peripheral Interfaces
  • Four USB ports
  • One serial port
  • One parallel port
  • One 4x AGP
    • Slot
  • One 10/100 network port
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion CapabilitiesFour PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
