Dell DSC8100 Blade Server Module 65MTT
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code SRVDELPWR65MTTR
Brand Dell Computers
Model DCS8100 Z0017A
Part Number 65MTT 065MTT CN-065MTT
Compatible Part Numbers V4PC1 0V4PC1 CN-0V4PC1 BCN08378871 DN68VR1 FWS
Category Rackmount 1U Servers
Condition Manufacturer Recertified
Description

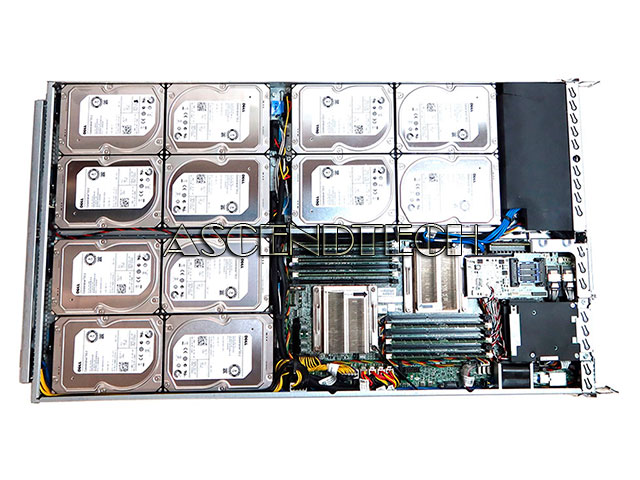

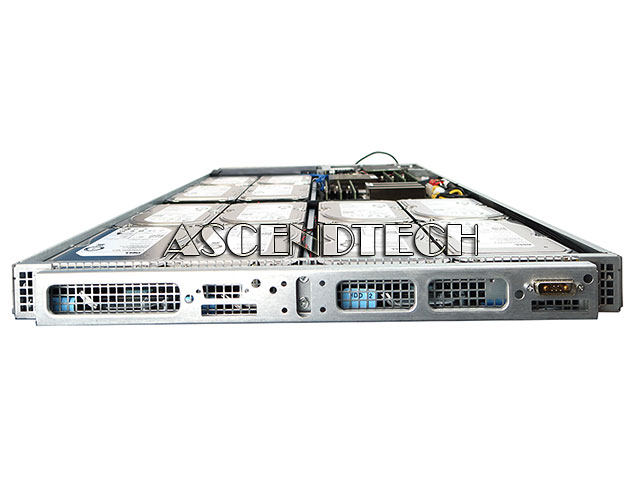

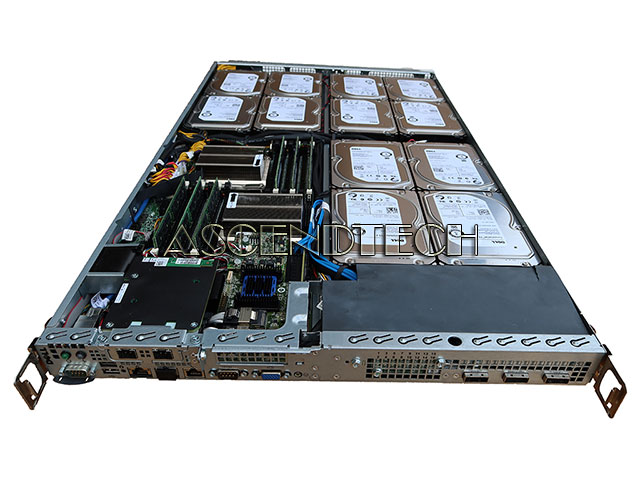

Dell PowerEdge DSC8100 Series Intel Dual Xeon L5640 2.26GHz SLBV8 Processor 48GB RAM 200GB SSD 36TB HDD Blade Server Module 65MTT 065MTT CN-065MTT.
Chipset: Intel 5520
Socket: Dual Intel LGA1366
Processor/CPU: Dual Intel Xeon L5640 (SLBV8)
Processor/CPU Speed: 2.26GHz (2.80GHz Max Turbo)
Number of Cores: 6
L2/L3 Cache: 1.5MB/12MB
Max Supported Memory: 192GB
Number of Memory Slots: 12
Memory Capacity: 48GB (6x8GB Samsung P/N: M393B1K70DH0-YH9, PC3L-10600R-09-11-E2-03)
Memory Type: DDR3 SDRAM
Pins: 240-Pin
Speed: 1333MHz
Bus Type: PC3L-10600
Rank: 2Rx4
CAS Latency: CL9
Error Correction (ECC): ECC
Registered: Yes
Voltage: 1.35V
Storage Capacity: 200GB (2x 100GB Intel SSD Model: SSDSA2BZ100G3); 36TB (12x 3TB Dell HDD Constellation Model: ST33000650NS P/N: 9SM160-036)
Rotation Speed: 7200RPM
Storage Interface: SATA 3 6.0Gb/s
Firmware: 0362, RA05
RAID Support: 0, 1, 10, optional 5
Video Chipset/GPU Model: Tyan AST2050
Graphics Memory: 64MB
Network/Communications: Intel 82576
Input/Output Ports: 2x USB, 2x SFP+, 2x DB-9 Serial RS232, 3x RJ-45, 1x VGA
Color: Silver
Height: 8.5"
Width: 24.5"
Length: 39"
Weight: 42 lbs (19.05 kg)
Form Factor: 1U
Type: Blade Server Module
Supported Operating System: Novell SUSE Linux Enterprise Server 11 SP1 x64 SP1, Red Hat Enterprise Linux 6.1, Microsoft Windows Server 2008 R2 Enterprise SP1 and HPC Server 2008 R2 x64 SP1
Controller/Add on cards: ADAPTEC ASR-6805T 8 Internal Port Pci-e 2.0 X8 512mb Cache Sas Raid Controller, Intel 82599 Mezzanine Daughter Card P/N: TCK99 0TCK99 CN-0TCK99
Features: Motherboard P/N: GXX41 0GXX41 CN-0GXX41
