DELL DW-Q58A SLIM 8x DVD±RW IDE DRIVE

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

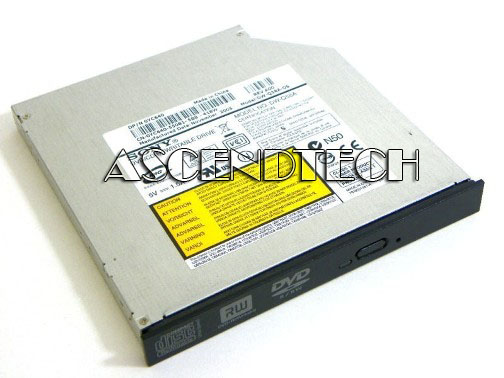

Dell Dw-Q58a Slim 8X Dvd±Rw Ide Drive. Model: Dwq58a 96Frm Yc640 Cd659
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LTPDVDRWDDWQ58A
Brand Dell Computers
Model DWQ58A 96FRM YC640 CD659
Category Laptop Optical Drives
Condition Pre-Owned Grade B
Condition Description Please note, this unit is used and has minor scuffs and scratches, but is fully operational and functions as intended! Please see images below.

Description

Dell DW-Q58A Slim DVD±R/RW Optical Drive for Dell Laptop Notebook Computers Systems. The DW-Q58A series supports 8x writing for DVD+R/-R, 6x for DVD-RW, 8x for DVD+RW, 4x for DVD+R/-R DL, 5x for DVD-RAM and 24x for CD-R/RW. All the maximum writing speeds are achieved with the Z-CLV technology. Reading speeds include 8x CAV for DVD-ROM SL, 6x for DVD-ROM DL, 5x for DVD-RAM and 24x for CD-R/RW. The drive is equipped with a slot-in disc loading mechanism, and has a 2MB of cache buffer.

Brand: Dell
Manufacturer: SONY
Model: DW-Q58A
Type: Internal
Interface: IDE/ATAPI
Dell Part Numbers: 96FRM YC640 CD659 096FRM 0YC640 0CD659
Compatible Systems:
Dimension Desktop 4700C
Dimension Desktop 5100C
Dimension Desktop 5150C
Dimension Desktop 9200C
OptiPlex 210L
OptiPlex 745
OptiPlex GX620
OptiPlex SX280


Features:

  • 12.7mm internal slim DVD±R/RW Drive
  • IDE / E-IDE Interface
  • Supports reading and writing to CD-R/RW, DVD-R/RW and DVD+R/RW
  • Supports reading to CD-ROM and DVD-ROM


    Specifications:

    General
    ManufacturerSONY
    Model numberSlim DVD+/-RW Drive
    InterfaceATAPI
    Types of disc formats supported
    CD CD-ROM (Mode 1)
    CD-ROM XA (Mode 2, Form 1 and Form 2)
    CD-I (Mode 2, Form 1 and Form 2) and CD-I Ready and CD-I Bridge
    Photo CD (Single and Multi session)
    Video CD
    CD-TEXT
    CD-R
    CD-RW
    DVD DVD-5, 9, 10, 18
    DVD-R/-RW
    DVD+R/+RW
    DVD+R9 (Double layer)
    Performance
    Rotational speed
    CD-ROM
    10 ~ 24X

    4925 min,-1(rpm), Max
    DVD-ROM
    3 ~ 8X CAV (Single)
    2.4 ~ 6X CAV (Dual Layer)




    5000min.-1(rpm), Fix
    4000min.-1(rpm), Fix
    Data transfer rate:
    CD
    CD-ROM  [10~24X CAV]

    1.67 ~ 4.01 MB/s

    DVD
    DVD-ROM  3.2X ~ 8X CAV
    DVD-ROM  1.6X ~ 4X CAV


    4.33 ~ 10.82 MB/s
    2.16 ~ 5.41 MB/s
    ATAPI interface Max Data Transfer Mode
    ATA PIO Mode 4
    ATA Multi Word DMA Mode 2
    ATA Ultra DMA mode 2     		16.7 MB/s
    16.7 MB/s
    33.3 MB/s
    Access time
    CD
    Random (block to block)
    DVD
    Random (block to block)

    110 ms ( 24X CAV )

    130 ms ( 8X CAV )
    Buffer size2 MB
    Reliability
    MTBF70,000 POH (Duty 25%)
    User error rates:
    CD
    Mode 1
    Mode 2

    10-12 block/bits
    10-9 block/bits
    DVD-ROM
    		10-15 block/bits
    Audio
    Sampling frequency 44.1 kHz
    Number of channels 2 channels
    Frequency response 20 to 100 Hz, 1kHz=0dB
    Signal/noise ratio Line out : 80dB (1kHz) with LPF: 20kHz
    Headphone out : 65dB (1kHz) with LPF: 20kHz
    Total harmonic distortion 0.1% (1kHz) with LPF: 20kHz
    Line output 0.7 +- 0.2 Vrms (1kHz)
    Environmental
    Ambient temperature:
    Operating 41degree F ~ 122 degree F (5 degree C ~ 50 degree C)
    Storage -40 degree F ~ 149 degree F (-40 degree C~ 65 degree C)
    Relative humidity:
    Operating 8 ~ 90 % (No Condensation)
    Storage 5 ~ 95 % (No Condensation)
    Acoustic noise
    Drive on (seeking) 47.5 dB Max
    Power
    +5VDC with +- 5% tolerance
    Physical (With Bezel)
    Height128 +-0.2 mm
    Width12.7 +-0.2 mm
    Depth126.1 +- 0.2 mm
    Weight180 +-10 g
    Lasers
    CD
    Focusing
    Tracking
    Wave Length
    Optical Output     		Astigmatism Method
    Differential Push-Pull
    784 nm
    70 mW (MAX)
    DVD
    Focusing
    Tracking
    Wave Length
    Optical Output     		Astigmatism Method
    Differential Phase Detection
    658 nm
    10 mW (MAX)
