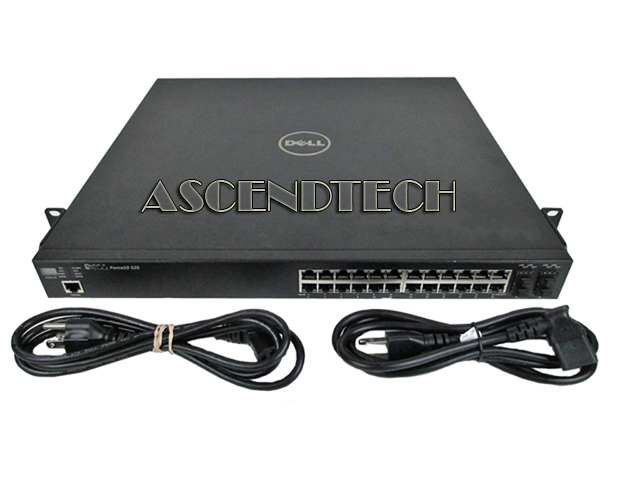

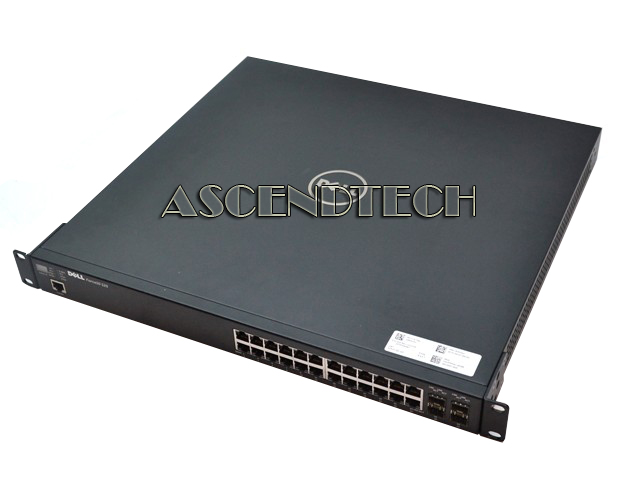

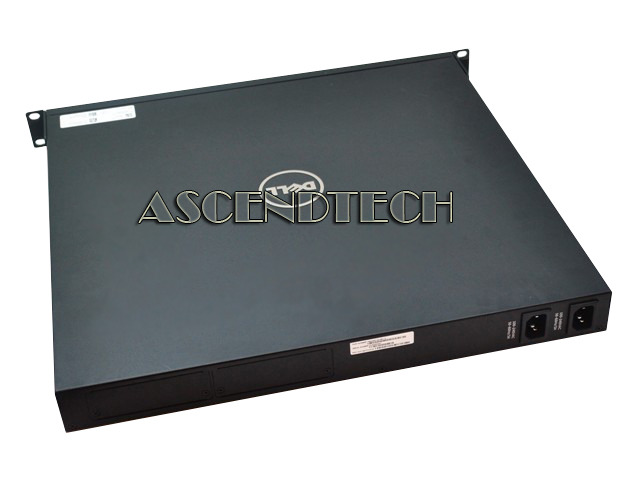

Dell Force 10 24-Port Data Center Switch

Dell Force 10 S25-01-GE-24T FPKNJ 24-Port L3 Ethernet Data Center Switch.

Dell Part Number: FPKNJ 0FPKNJ CN-0FPKNJ
Dell Model Number: S25-01-GE-24T
Compatible Models: Dell Force 10

Specifications:

Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x shared SFP
Max Units In A Stack: 3
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
MAC Address Table Size: 16K entries
Max Units In A Stack: 3
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Status Indicators: Port status, link activity, power
Encryption Algorithm: MD5, SSL
Routing Protocol: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3

Cabling Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size: 16K entries
Subcategory: network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: desktop
Type: switch
Stackable: stackable
Connectivity Technology: wired
Max Units In A Stack: 3
Advanced Switching: Layer 3
Features: ARP support, Access Control List (ACL) support, layer 2 switching, layer 3 switching, routing, BOOTP support, DHCP support, DiffServ support, Quality of Service (QoS), RARP support, VLAN support, Weighted Round Robin (WRR) queuing, flow control
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak
Ports: Qty 24
Manageable: Yes
Routing Protocol: IGMP, IGMPv2, IGMPv3, OSPF, OSPFv2, PIM-SM, RIP-1, RIP-2, VRRP
Switching Protocol: Ethernet
Remote Management Protocol: HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, Telnet

Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 150 Watt
Type: internal power supply

Type: 10/100/1000
Qty: 24

Width: 17.3 in
Depth: 16.7 in
Height: 1.7 in
Weight: 14.33 lbs
