GS20N D74TY T532C | Dell Gs20n Slim 8X Dvd±Rw Sata Drive

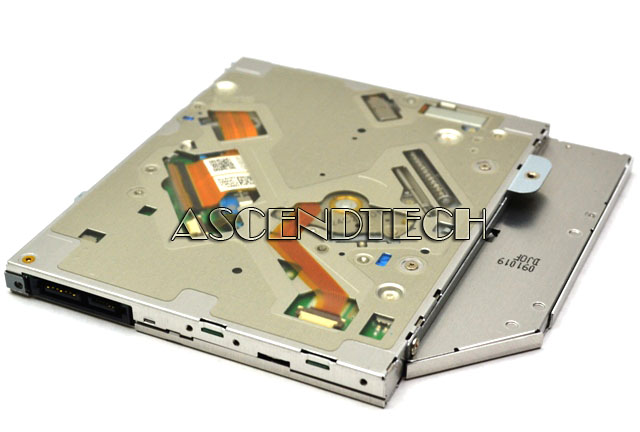

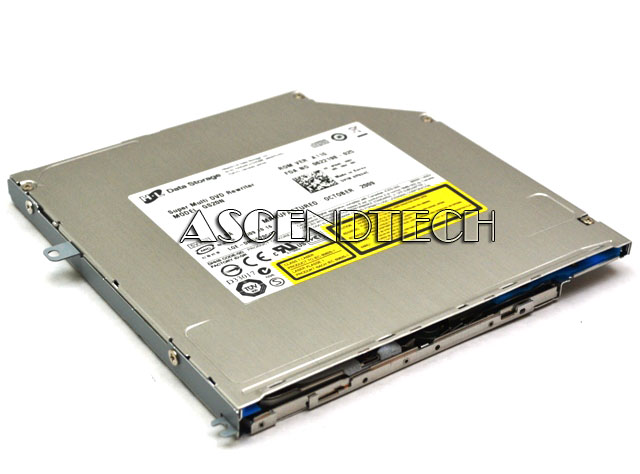

Dell P834C GS20N Ultra Slim 9.5mm slot loading 8X DVD±R/RW Optical Drive for Dell Laptop Notebook Computers. This drive reads CD and DVD media and writes to CD and DVD media.

Brand: Dell
Manufacturer: Hitachi-LG
Model: GS20N
Dell Part Numbers: P834C D74TY T532C 0D74TY 0T532C
Compatible:
Adamo Adamo 13
Precision M6400
Precision M6500
Studio XPS Laptop 1340

* This Optical Drive Does Not Include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.

Features:

9.5mm internal slim DVD±R/RW Drive.
Slot Loading type.
Serial ATA Interface (SATA) model.
Supports reading and writing to CD-R/RW, DVD-R/RW and DVD+R/RW.
Supports reading to CD-ROM and DVD-ROM.

Specifications:

System Interface	Data transfer speed	T13 ATA/ATAPI-7, INF-8090i v7
		(Burst) SATA Gen.1 (80MBps)
Performance
CD	Read CD-ROM/ R/ RW	24x max. CAV
	Digital Audio Extraction (DAE)	24x max. CAV
	Write CD-R	10x CLV, 16x PCAV, 24x CAV
	Write CD-RW	Multi Speed: 4x CLV High Speed: 10x CLV Ultra Speed: 10x CLV, 16x ZCLV, 24x ZCLV
DVD	Read (Single Layer / Dual or Double Layer)	8x max. CAV
	Write DVD+/-R	8x max. CAV
	Write DVD+/-R Double Layer	6x max. ZCLV
	Write DVD-RAM	5x max. PCAV
	Write DVD+RW	6x max. ZCLV
	Write DVD-RW	6x max. ZCLV
Power Consumption	Typical	Stand-by 40 mA Sleep 40 mA Worst case (Active) 900 mA
Acoustic noise	Operating (Sound pressure level, typical)	Less than 45dBA at 0.25m away from bezel and 0.45m heights away.
Power supply	Voltage	+5V +/-5% ripple less than 100 mVp-p
Temperature	Operating C (F)	50 to 500C (41F to 122F)
	Non-operating C (F)	-40° to 65° C (-40 to 149 F)
Relative Humidity	Operating (No condensation)	5% to 90%
	Non-operating (No condensation, Power Off, without disc)	5% to 95%
Altitude	Operating m (ft)	-200m ~ 3,048m
	MTBF:	160,000 power on hours (POH)
Dimensions and weight	Width	128 mm
	Depth	127 mm
	Height	9.5 mm
	Weight	About 160 g

DELL GS20N SLIM 8X DVD±RW SATA DRIVE
