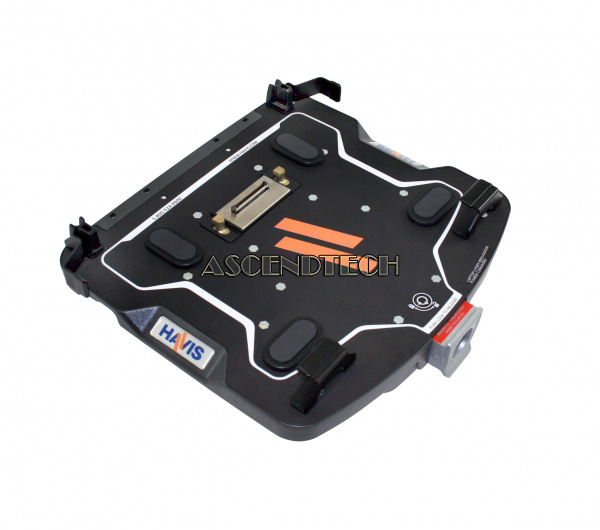

Dell Latitude E6400 ATG Docking Station

Havis DS-DELL-231 Docking Station for Dell Latitude E6400 / E6410 / E6420 / E6430 ATG Notebooks. Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management. Macro alignment brackets, front hooks, and foot pads help guide your computer into the docking station, ensuring proper alignment and docking connectivity.


This unit is new, but the original packaging maybe damaged or missing. It includes the Docking Station and Stand only.

Product Details:
• Low profile design maximizes available space inside of vehicle
• Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management

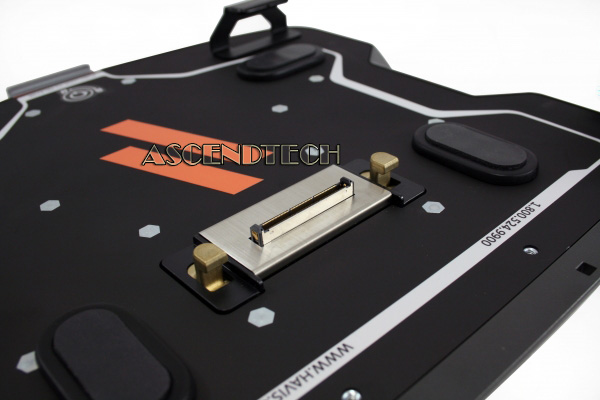

• Macro alignment brackets, front hooks, and foot pads help guide your computer into the docking station, ensuring proper alignment and docking connectivity
• Power button and port replication LED on front of docking station confirm proper connectivity and computer power
• Rounded corners and edges are ideal for your safety in accidents and airbag deployment, in addition to daily use and operation of docking station
• Supplied mounting bracket designed to fit all Havis mounting equipment, VESA standards, and most competitors mounting equipment
• Easy to use latch handle makes certain your computer is safe and secure inside your vehicle
• Lock and key supplied for peace of mind theft deterrence
• Order Dell specific docking station power supply LPS-137 separately
• Compatible computer: Dell Latitude E6400 / E6410 / E6420 / E6430 ATG

Specifications:
Manufacturer Part Number: DS-DELL-231
Dell Part Number: A6332963
Product Type: Docking station
Width: 13.5 in
Depth: 12.7 in
Height: 3.7 in
Weight: 6.39 lbs

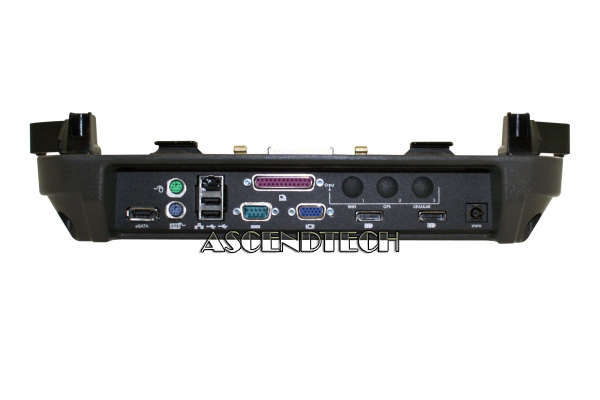

Expansion / Connectivity Interfaces:
3 x USB 2.0 - 4 pin USB Type A
1 x network - Ethernet - RJ-45
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
2 x audio / video - HDMI - 19 pin HDMI Type A
1 x parallel - parallel - 25 pin D-Sub (DB-25)
1 x storage - eSATA - 7 pin external Serial ATA
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x microphone - input - mini-phone 3.5 mm
1 x headphones - output - mini-phone stereo 3.5 mm
1 x docking / port replicator
2 x SuperSpeed USB 3.0 - 9 pin USB Type A
Features: Anti-vibration, rugged, lockable, LED indicator, impact resistant
Compliant Standards: FCC, RoHS, MIL-STD 810G, SAE J 1455
Voltage Required: DC 20 V
Designed For: Dell Latitude E6420, E6420 ATG, E6420 N-Series, E6420 XFR
Included:
Docking Station
Stand


This unit is new, but the original packaging maybe damaged or missing. It includes the Docking Station and Stand only.
