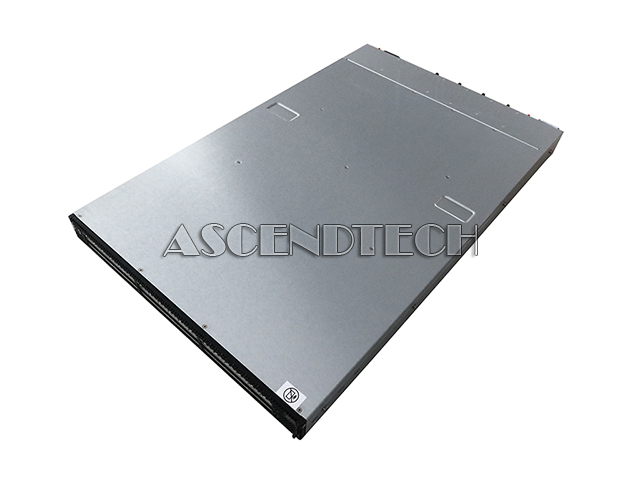

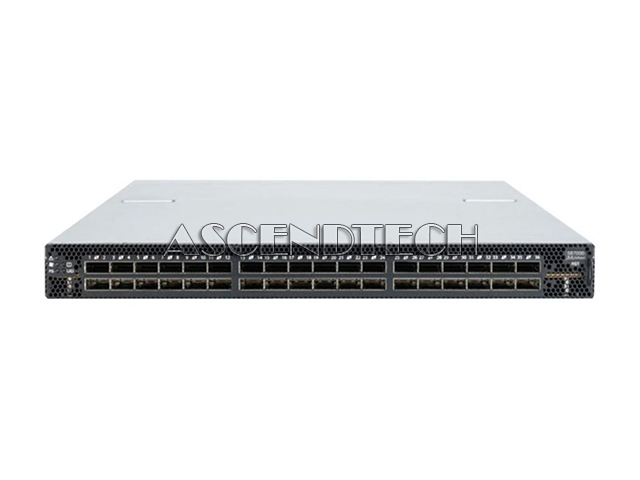

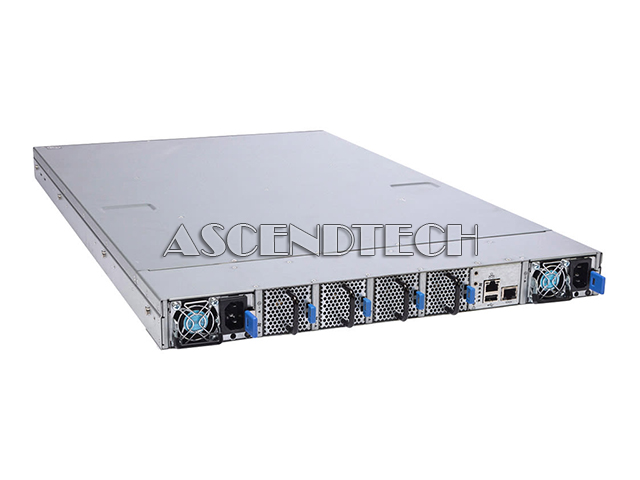

Dell Mellanox SB7800 Switch System 1YP3N
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code NETSWTDELL1YP3N
Brand Dell Computers
Model SB7800
Part Number 1YP3N 01YP3N IL-01YP3N
Compatible Part Numbers MSB7800-ES2F
Category Network Switches & Management
Condition Brand New

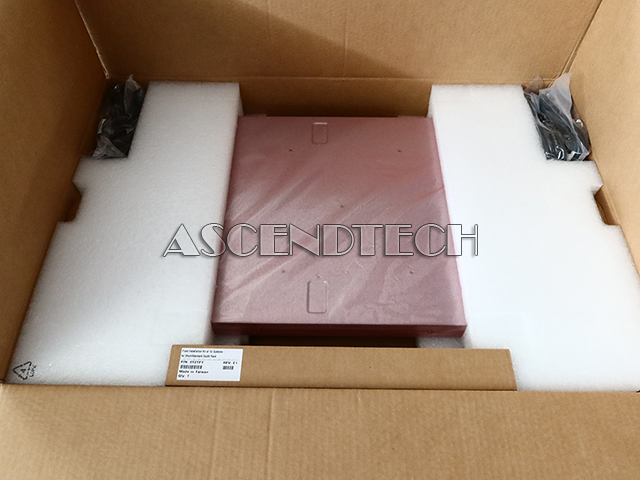

Condition Description Please note, this item comes with Motherboard, 2x Power Supply, 4x Fan Module, 1U Rail Kit, Cables! Does not include any other accessories!
Description
Dell Mellanox SB7800 1U 36-Port 100GbE QSFP28 Intel Celeron 1047UE 1.4GHz SR10E Processor 4GB RAM Infiniband EDR Switch System 1YP3N 01YP3N IL-01YP3N.
Processor/CPU: Intel Celeron 1047UE
Processor/CPU Speed: 1.40GHz
Number of Cores: 2
L2/L3 Cache: L2 - 512KB/ L3 - 2MB
Memory Capacity: 4GB (Apacer P/N: 78.B2GCS.AT00C)
Memory Type: DDR3 SDRAM
Pins: 204-Pin
Speed: 800MHz
Bus Type: PC3-12800
CAS Latency: CL11
Error Correction (ECC): Yes
Data Transfer Rate: 7TB/s
Input/Output Ports: 1x USB; 1x DB-9 Serial RS232; 1x RJ-45; 36x QSFP28
Power Input: 100-127V 50-60Hz 4.5A/ 200-240V 50-60Hz 2.9A
Power Output: 460W
Height: 1.7"
Width: 16.85"
Depth: 27"
Weight: 24.2Lbs
Form Factor: 1U
Bracket/Profile Type: 19" rack mountable
Type: InfiniBand Switch
Operating System: MLNX-OS
Features: Motherboard P/N: SA001633; 2x Power Supply Delta Electronics Model: DPS-460KB H; P/N: 0KX1W 00KX1W CN-00KX1W with C2P air flow P/N: MTEF-PSR-AC-A; 4x Fan Module Delta Electronics Model: GFC0412DS P/N: 0H03T 00H03T CN-00H03T FA121A04-E04 with C2P air flow P/N: MTEF-FANR-A; 1U Rail Kit P/N: T2TFY 0T2TFY TH-0T2TFY; 2x 6Ft AWG IEC 320 C13 Female to C14 Male 10A 250V 3-Prong Power Cable P/N: ACC000501; 1x 6Ft DB-9 Serial RS232 to RJ-45 Cable P/N: HAR000631
