DELL ND-6650A SLIM DVD±RW W/OUT BEZEL

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

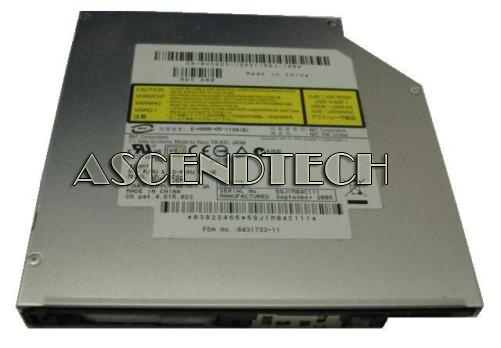

Dell Nd-6650A Slim Dvd±Rw W/Out Bezel. Model: Nd6650a Yc101 Uc823
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LTPDVDRND6650AW
Brand Dell Computers
Model ND6650A YC101 UC823
Category Laptop Optical Drives

Description

 Dell ND-6650A Slim DVD±R/RW Optical Drive for use in Dell Laptop Notebooks and Slim Desktop Computer Systems. Dell Slim DVD±R/RW optical drive, with standard half inch design and horizontal and vertical mounting for most system configurations that require a slim optical drive.

Brand: Dell
Dell Part Numbers: YC101 UC823 0YC101 0UC823
Manufacturer: NEC
Models: ND-6650A
Type: Internal
Interface: IDE
Compatibility:
Dimension Desktop 4700C
Dimension Desktop 5100C
Dimension Desktop 5150C
Dimension Desktop 9200C
Inspiron 1300
Inspiron 1501
Inspiron 2200
Inspiron 510m
Inspiron 6000
Inspiron 600m
Inspiron 640m
Inspiron 700m
Inspiron 710m
Inspiron 9300
Inspiron 9400/E1705
Inspiron B120
Inspiron B135/1400
Inspiron I6400/E1505
Inspiron XPS Gen 2
Latitude 110L
Latitude 120L
Latitude 131L
Latitude D400
Latitude D410
Latitude D420
Latitude D505
Latitude D510
Latitude D520
Latitude D600
Latitude D610
Latitude D620
Latitude D800
Latitude D810
Latitude X1
Latitude X300
OptiPlex 210L
OptiPlex 740
OptiPlex 745
OptiPlex GX280
OptiPlex GX520
OptiPlex GX620
OptiPlex SX280
Precision M20
Precision M60
Precision M65
Precision M70
Precision M90
XPS Desktop M1210
XPS Desktop M140
XPS Desktop M1710
XPS Desktop XPS M170


* This Optical Drive Does Not Include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.


Features:

  • 12.7mm internal slim DVD±R/RW Drive
  • Tray type
  • IDE / E-IDE Interface
  • Supports reading and writing to CD-R/RW, DVD-R/RW and DVD+R/RW
  • Supports reading to CD-ROM and DVD-ROM




    Specifications:

    Manufacturer NEC Corporation
    Model Number ND-6650A
    Type Internal type
    Interface Enhanced-IDE (ATAPI)
    Data buffer memory  2MB
    DVD data Transfer Rate Sustained: 3.3-8X CAV: 4.5-11MB/sec 2-5X CAV: 2.7-6.9MB/sec 2.4-4X ZCLV: 3.3-5.5MB/sec 2.4X CLV: 3.3MB/sec
    CD data Transfer Rate Sustained: 10-24X CAV: 1500-3600KB/sec 8-20X CAV: 1200-3000KB/sec 4-10X CAV: 600-1500KB/sec 8-16X ZCLV: 1200-2400KB/sec 10X CLV: 1500KB/sec 8X CLV: 1200KB/sec 4X CLV: 600KB/sec
    Burst (ATAPI): 33.3MB/sec (UltraDMA33 Mode 2) 16.67MB/sec (PIO Mode 4, MULTI-DMA Mode 2)
    Average access time DVD Random 160m sec.
    CD Random 130m sec.
    DAE (Digital Audio Extraction) transfer rate 8-20X CAV: 1200-3000KB/sec
    Mounting direction Horizontal/Vertical
    Compatible media media
    DVD-ROM (SL, DL) No Yes
    DVD-Video (SL, DL) No Yes
    DVD+R (SL, DL)* Yes Yes
    DVD+RW Yes Yes
    DVD-R Yes Yes
    DVD-RW Yes Yes
    DVD-Audio No Yes
    CD-DA No Yes
    CD-Extra No Yes
    CD-ROM No Yes
    CD-R Yes Yes
    CD-RW Yes Yes
    Video CD No Yes
    CD Text No Yes
    Loading system Drawer loading mechanism
    Power DC5V
    Weight 190g
    Dimensions 128.0 x 126.1 x 12.7 mm (W, D, H: without Front Bezel)
    Error Rate 10-12 bits or less
    MTBF 60,000 hours Power On Hours (Duty Cycle 10%)
    MTTR Within 30 minutes
    Audio Output Level Line out : 0.75 Vrms at 10k ohm
