Dell Optiplex 745 USFF Motherboard GW726

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code MBDELINTELKG317

Brand Dell Computers

Model GW726 KG317 MM621 PK096

Category Intel Lga775 Motherboards

Condition Like New Grade A

Description

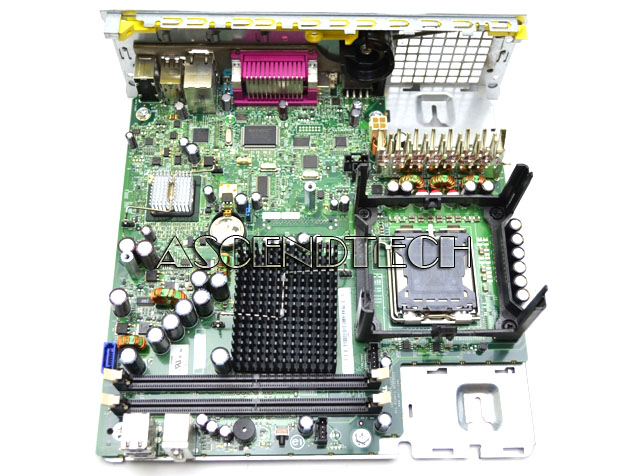

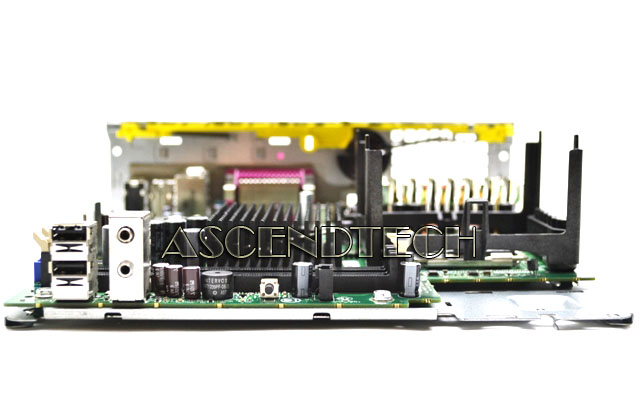

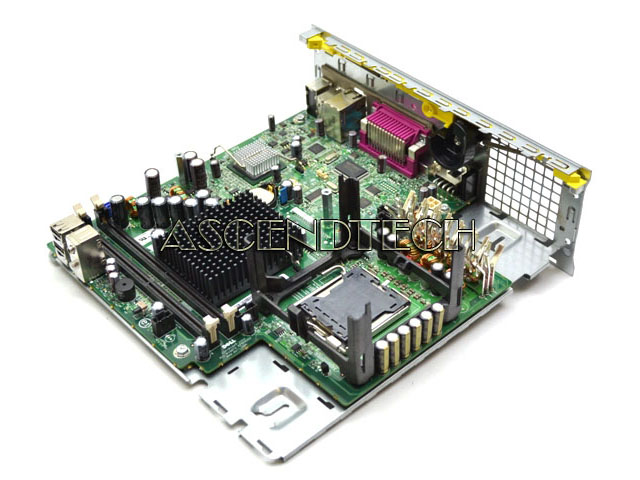

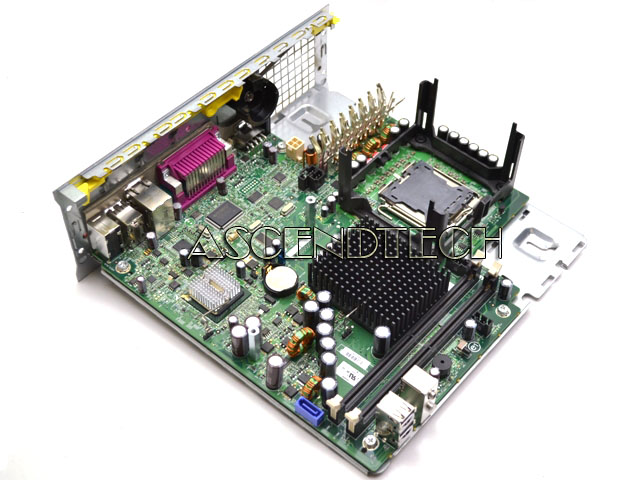

Genuine Dell OptiPlex 745 Series Intel Socket LGA775 Ultra Small Form Factor (USFF) Systems Desktop Motherboard GW726 0GW726 CN-0GW726.

Dell Part Number: GW726 0GW726 CN-0GW726
Compatible Part Numbers: KG317 0KG317 CN-0KG317 MM621 0MM621 CN-0MM621 PK096 0PK096 CN-0PK096
Compatible Models: Dell OptiPlex 745 Series

Specifications:

Chipset: Intel Q965 Express

Supported Processor: Intel Pentium 4 Pentium D Celeron Core processor
Socket LGA775

Supported Memory: 533 or 667 MHz DDR2 SDRAM Slots
4GB Max Total

Audio: Integrated ADI 1983 High Definition Audio

Video: Intel Graphics Media Accelerator 3000 with integrated DVI-I with dual-monitor support

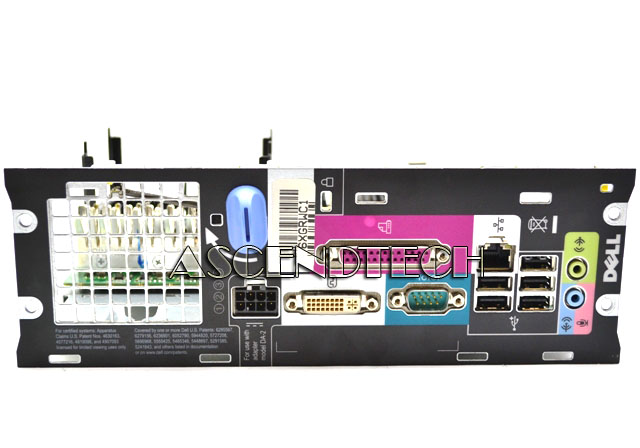

Peripheral Interfaces:

1 - Serial Port
1 - Parallel Port
1 - DVI Port
1 - DA-2 Adapter Port
1 - 10/100 Ethernet LAN Port
7 - USB 2.0 Compliant Ports (5 back panel, 2 front panel USB ports)
2 - Back Panel Connectors for line-in, line-out, and microphone; 2 Front Panel Connectors for Headphones and Microphone
